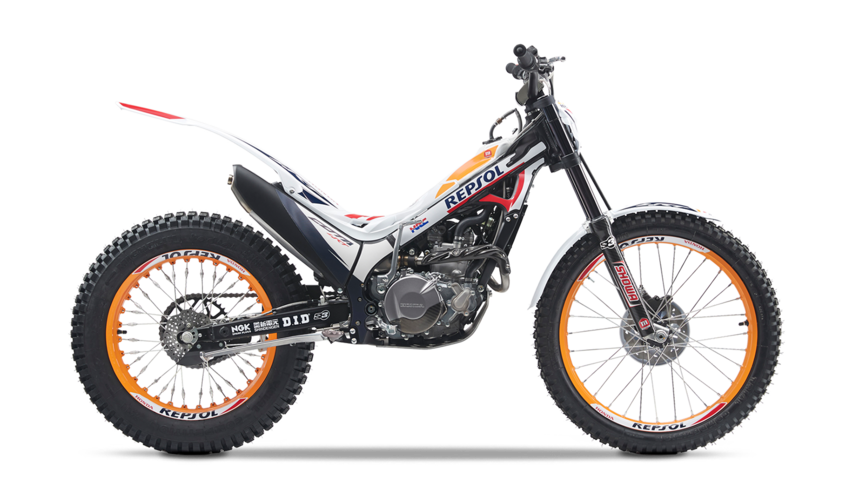

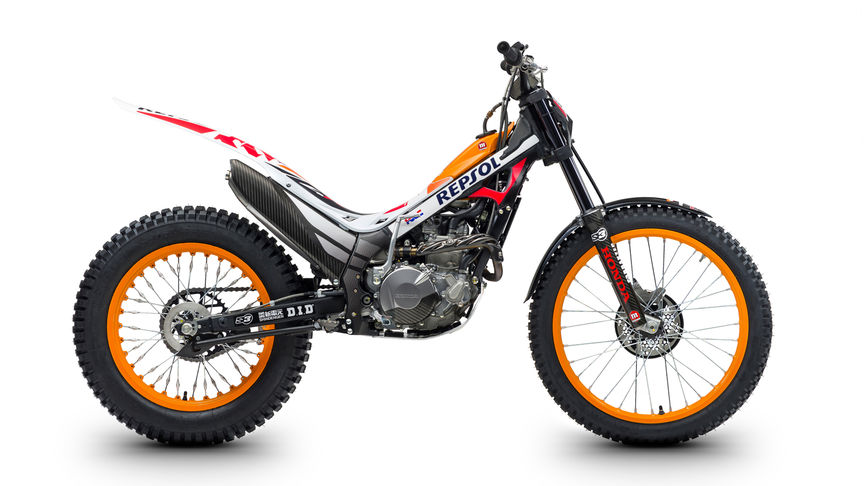

Montesa Cota 4RT 260R 2024



Montesa Cota 4RT 260R 2024 key features

Montesa Cota 4RT 260R 2024 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 78 x 54.2
    Carburation Electronic fuel injection PGM-FI
    Compression Ratio 10.5 : 1
    Engine Displacement (cc) 258.9
    Engine Type Single, 4-stroke, 4 valves, SOHC, liquid cooled
    Starter Kick
  • Wheels
    Brakes Front 185 × 3.0 mm hydraulic disc with 4-piston caliper and sintered metal pads
    Brakes Rear 150 × 3.0 mm hydraulic disc with 2-piston caliper and sintered metal pads
    Suspension Front 39 mm SHOWA telescopic fork with pre-load, rebound and compression adjustment. 158mm stroke
    Suspension Rear Pro-Link system, R16V shock with compression and rebound adjustment. 170 mm stroke
    Tyres Front 80/100 21 (Dunlop)
    Tyres Rear 120/100 R18 (Dunlop)
    Wheels Front Aluminium rims / wire spokes
    Wheels Rear Aluminium rims / wire spokes
  • Dimensions and Weights
    Caster Angle 23°
    Dimensions (L×W×H) (mm) 2020 × 840 × 1135 mm
    Frame type Diamond, aluminium twin spar
    Fuel Tank Capacity (Litres) 1.8 litres
    Ground Clearance (mm) 335 mm
    Seat Height (mm) 650 mm
    Trail (mm) 63 mm
    Wheelbase (mm) 1,320 mm
  • Transmission
    Clutch Wet, multiplate with coil springs
    Final Drive Roller chain
    Gearbox 5-speed
  • Instruments and Electrics
    Ignition System Electronic, digital transistor
