Specifications

Your bike in detail

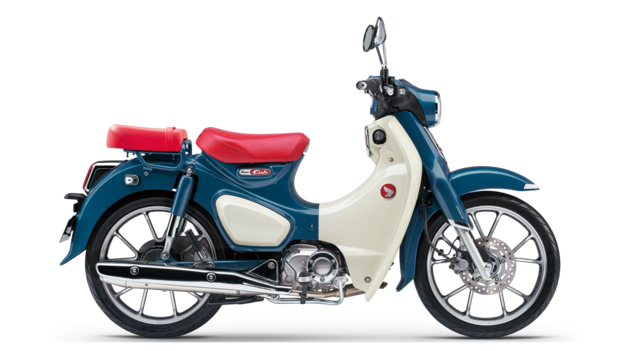

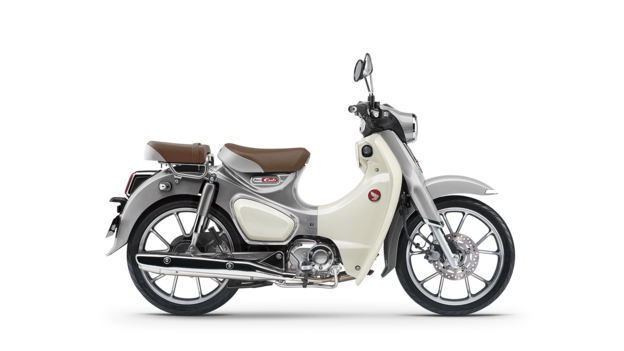

Super Cub C125 2019



Super Cub C125 2019 key features

Super Cub C125 2019 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 52.4 × 57.9
    Carburation PGM-FI electronic fuel injection
    Compression Ratio 9.3
    Engine Displacement (cc) 125cc
    Engine Type (cm³) 4 stroke 2 valve Air-cooled
    Max. Power Output 7.1kw / 7,500 rpm
    Max. Torque 10.4Nm / 5,000 rpm
    Oil Capacity (Litres) 1.0 L
    Starter Electric
  • Wheels
    ABS System Single Channel ABS
    Brakes Front 220mm, single disk
    Brakes Rear 130mm drum
    Suspension Front Telescopic
    Suspension Rear Twin Shock
    Tyre Size Front 70/90-17M/C 48P
    Tyre Size Rear 80/90-17M/C 50P
    Wheels Front 17 inch (17M/C X MT1.85) cast aluminium
    Wheels Rear 17 inch (17M/C X MT1.85) cast aluminium
  • Dimensions and Weights
    Battery Capacity (VAh) 12V-3.5AH
    Caster Angle 26.5°
    Dimensions (L×W×H) (mm) 1915 x 720 x 1000
    Frame type Mono back bone steel pipe
    Fuel Tank Capacity (Litres) 3.7 L
    Fuel Consumption 66.7km / L
    Ground Clearance (mm) 125
    Kerb Weight (kg) 109
    Seat Height (mm) 780
    Trail (mm) 71 mm
    Wheelbase (mm) 1245
  • Transmission
    Clutch Wet Type Multiplate + Automatic Centrifugal Clutch
    Final Drive Chain
    Gearbox Constant mesh
  • Instruments and Electrics
    Headlights LED
    Ignition System Full Transistorised
    Instruments Digital
    Tail Light LED
