Your bike in detail

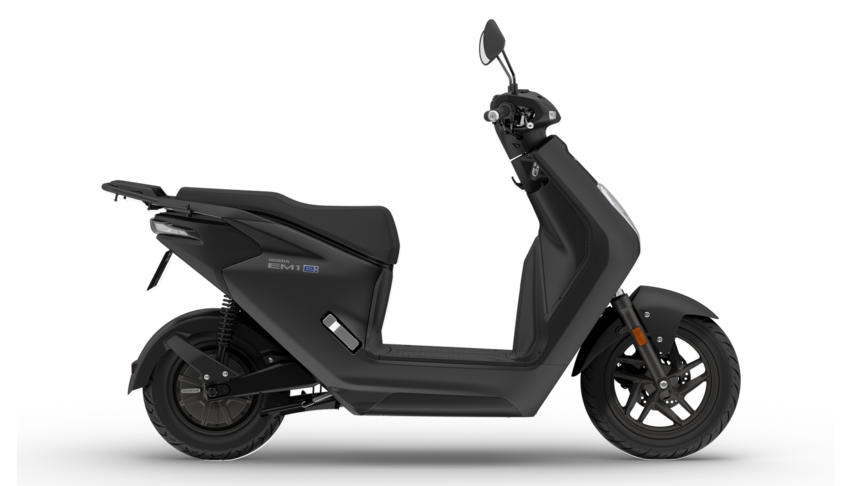

EM1 e:


EM1 e: 2023 key features

EM1 e: 2023 Specifications

Show specifications

  • Wheels
    Brakes Front Disk
    Brakes Rear Drum
    Suspension Front Telescopic
    Suspension Rear Twin
    Tyre Size Front 90/90-12
    Tyre Size Rear 100/90-10
    Wheels Front Cast Type
    Wheels Rear Composite
  • Dimensions and Weights
    Caster Angle 27 deg
    Dimensions (L×W×H) (mm) 1860mm x 680mm x 1080mm
    Frame type Under Bone Type
    Ground Clearance (mm) 135mm
    Kerb Weight (kg) (With Battery) 95kg
    Seat Height (mm) 740mm
    Trail (mm) 77 mm
    Wheelbase (mm) 1300mm
    Turning Radius 1.9m
  • Instruments and Electrics
    Headlights LED
    Instruments LCD
    Tail Light LED
    USB Socket Type A
    Security Immobiliser
  • Additional Features
    Riding Modes Standard / Econ
    Climbing Angle 12°@RW 55kg / 10°@RW75kg
  • EV Motor
    Type In-wheel 3-phase motor, Brushless
    Maximum Power 1.7 kW
    Maximum Torque 90 Nm
    Range (WMTC Class 1) 30km
    Range Per Mode 48km - Econ Mode.
    Noise Level N/A
    Energy Consumption (Wh/km) 47 Wh/km
  • EV Battery
    Type Lithium ion
    Voltage 50.3V
    Capacity 26.1 Ah
    Total number of battery packs 1
    Fixing Type Removable
    Technology Mobile Power Pack e:
    Weight 10.2 kg
    Dimensions 298mm x 177.3mm x 156.3mm
    Charger Off-board type - Single-phase AC100-240V 50/60Hz
    Charging Time 0% to 100% 6 hours**
    Charging Time 25% to 75% 160 minutes**
    Rated Power 270W
    Lifecycle >2,500**

**Figures obtained under internal test conditions. The Honda Mobile Power Pack e: battery’s performance is influenced by several factors including type of usage and usage environment. Battery charging time, number of charges and range are based on Honda’s estimated figures from internal testing. Figures are shown for reference only, and not guaranteed.
