Montesa Cota 4rt 301rr

Montesa Cota 4rt 301rr

Specifications

Your bike in detail

Select a bike to display specification details.

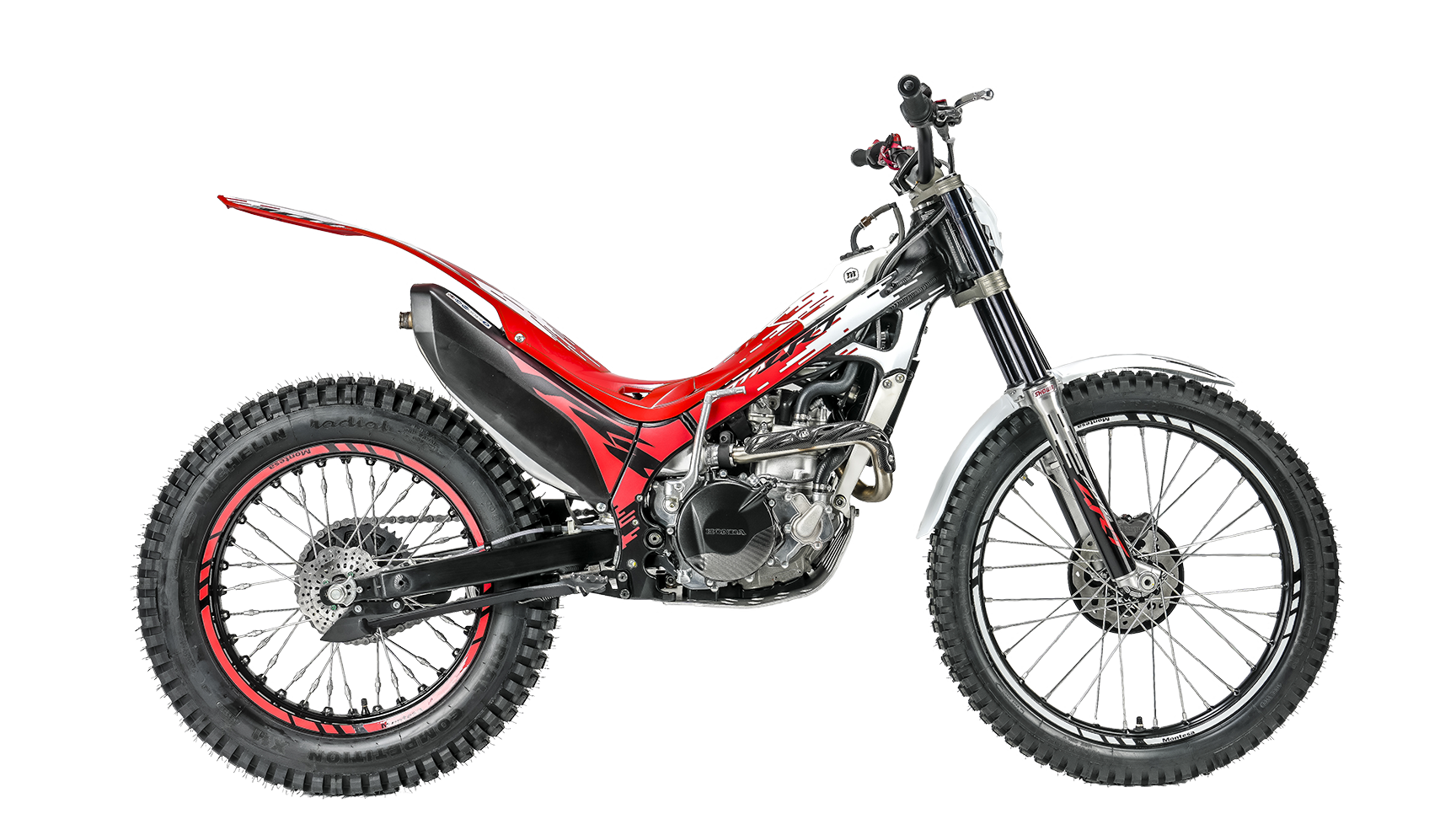

Montesa Cota 4RT 301RR 2024

Choose variant (6)

Montesa Cota 4RT 301RR 2024



Fighting Red

Choose colour (2)

Montesa Cota 4RT 301RR 2024 key features

Montesa Cota 4RT 301RR 2024 Specifications ▲

Show specifications

  • Engine
    Bore × Stroke (mm) 81.5 × 57.2 mm
    Carburation Electronic fuel injection PGM-FI
    Compression Ratio 10.4 : 1
    Engine Displacement (cc) 298cc
    Engine Type Single, 4-stroke, 4 valves, SOHC, liquid cooled
    Starter Kick
    Throttle Bore 28mm
    Oil Capacity (Litres) Engine 0.6L, Transmission 0.57L
  • Wheels
    Brakes Front 185 x 3mm hydraulic disc with 4-piston caliper and sintered metal pads
    Brakes Rear 150 x 3mm hydraulic disc with 2-piston caliper and sintered metal pads
    Suspension Front 39mm SHOWA telescopic fork with pre-load, rebound and compression adjustment. 158mm stroke.
    Suspension Rear Pro-Link system with SHOWA shock with spring pre-load and rebound adjustment. 170mm stroke
    Tyres Front 2.75 - 21 (Michelin)
    Tyres Rear 4.00 - R18 (Michelin)
    Wheels Front Aluminium rims/ wire spokes
    Wheels Rear Aluminium rims/ wire spokes
  • Dimensions and Weights
    Caster Angle 24.5°
    Dimensions (L×W×H) (mm) 2020 x 840 x 1135 mm
    Frame type Diamond, aluminium twin spar
    Ground Clearance (mm) 310mm
    Kerb Weight (kg) 73kg
    Seat Height (mm) 677mm
    Trail (mm) 63mm
    Wheelbase (mm) 1,320mm
  • Transmission
    Clutch Wet, multiplate with coil springs
    Clutch Operation Hydraulic
    Final Drive Roller chain
    Gearbox 5-speed
    Transmission Type Manual
  • Instruments and Electrics
    Ignition System Electronic, digital transistor

▲
