Specifications and Price

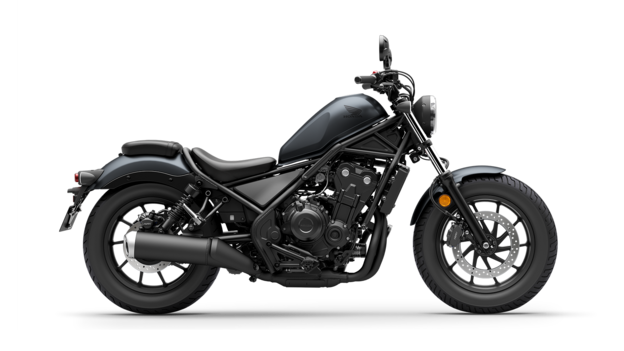

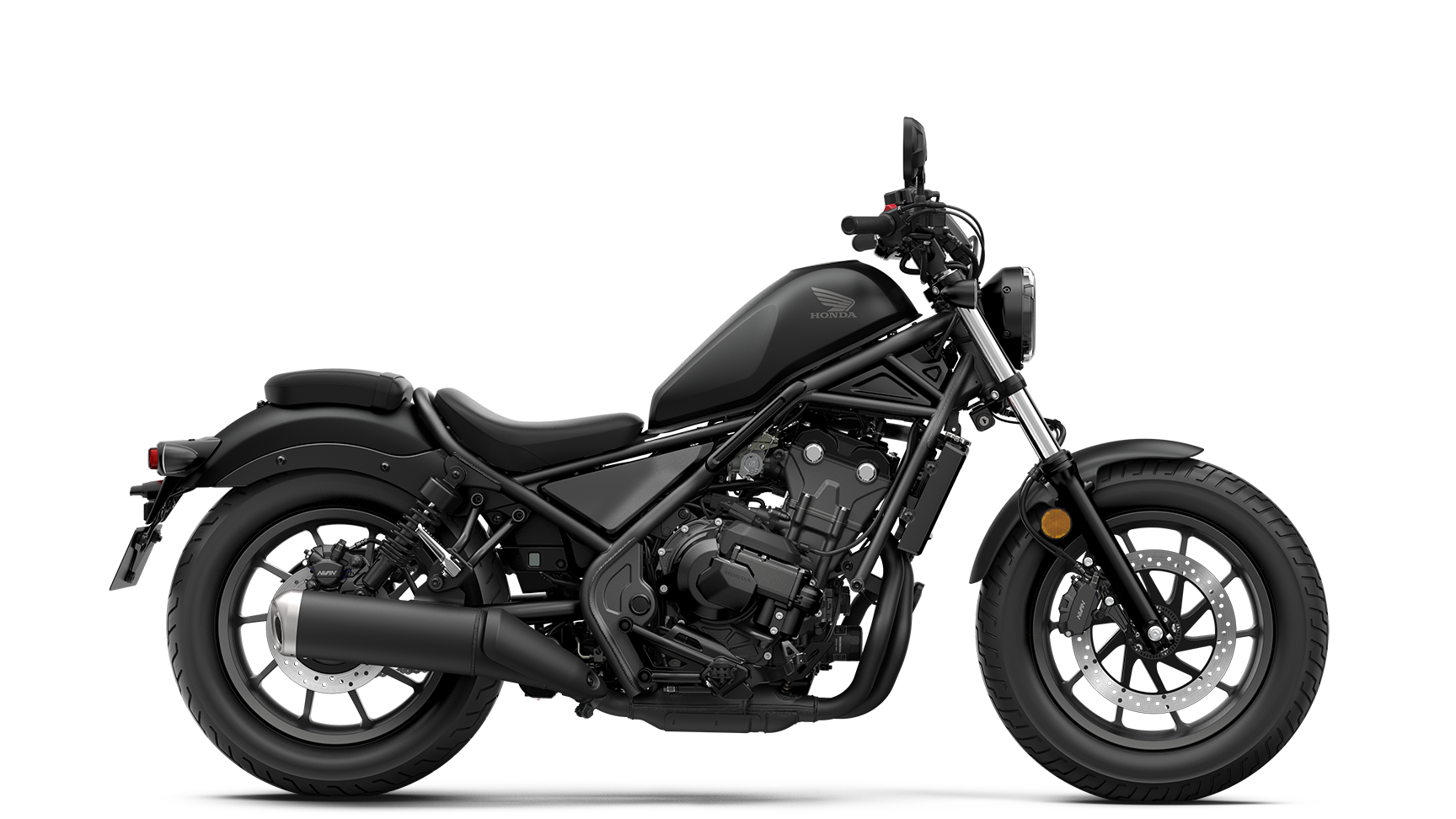

CMX500 Rebel E-clutch 2027

Change model
Matte Gunpowder Black Metallic
Configurator

Specifications

CMX500 Rebel E-clutch 2027

Configure your
Key Specs
  • Clutch Type Wet Multiplate & Assisted Slipper
  • Headlight / Taillight LED / LED
  • Seat Height (mm) 690
Engine
  • Cooling Type Liquid
  • SOHC or DOHC DOHC
  • Configuration Parallel Twin
  • Number of Cylinders 2
  • Number of Valves per cylinder 4
  • Engine Displacement (cc) 471
  • Bore (mm) 67
  • Stroke (mm) 66.8
  • Compression Ratio (X:1) 10.7
  • Max. Torque (Nm @ rpm) 43.3 @ 6,000
  • Stationary Noise Level (dB) Lurban = 74 / Lwot = 78
  • Max. Speed (km/h) 153
  • Oil Capacity (L) 3.2
Wheels
  • Wheel Dimension: Front 16M/C x MT3.00
  • Wheel Dimension: Rear 16M/C x MT3.50
  • Wheel Type Cast
  • Tyres Front 130/90/R16
  • Tyres Rear 150/80/R16
Instruments and Electrics
  • Meter Type TFT
  • Meter Size (inches) 4" round
  • Connectivity RoadSync Gen2
  • USB socket USB-C
  • 12V Socket Optional
  • Security System HISS (Honda Ignition Security System)
  • Heated Hand Grips Optional
Additional Features
  • Top Box Capacity (L) n/a
  • Panniers Optional
  • Panniers Capacity (L) 24
Drivertrain
  • Clutch Type Wet Multiplate & Assisted Slipper
  • Transmission Type E-Clutch
  • Number of Gears 6
  • Final Drive Chain
Brakes
  • ABS Type 2-channel ABS
  • Front Brake Discs: number 1
  • Front Brake Discs: size (mm) 296
  • Front Brake Calipers: Type 2-piston axial mounted
  • Front Brake Calipers: Make Nissin
Rider Aids
  • Selectable Riding Modes (number and type) 0
Lighting
  • Battery Type AGM
  • Battery Capacity (V / Ah) 12 / 7.4
  • Headlight / Taillight LED / LED
Chassis
  • Frame Shape Diamond
  • Frame Material Steel
  • Dimensions: Length (mm) 2205
  • Dimensions: Width (mm) 820
  • Dimensions: Height (mm) 1090
  • Wheelbase (mm) 1490
  • Seat Height (mm) 690
  • Ground Clearance (mm) 125
  • Caster Angle (degrees) 28
  • Trail (mm) 110
  • Turning radius (m) 2.8
  • Kerb Weight (kg) 193
  • Maximum Laden Mass Weight (kg) 369
Fuel System
  • Carburation PGM FI electronic fuel injection
  • Fuel Tank Capacity (L) 11.2
  • CO2 Emissions WMTC (g / km) 84
  • Fuel Consumption (L / 100 km) 3.6
Suspension
  • Suspension Front: Type Telescopic
  • Suspension Front: Fork Diameter (mm) 41
  • Suspension Front: Travel length (mm) 121
  • Suspension Rear: Type Twin Shock
  • Suspension Rear: Brand Showa
  • Suspension Rear: Travel length (mm) 95
  • Swingarm Type Pro-Link

CMX500 Rebel 2025

From £5,799
Configure your
Key Specs
  • Clutch Type Wet multiplate, Assisted slipper clutch
  • Headlight / Taillight LED
  • Seat Height (mm) 690mm
  • Instruments Digital
Engine
  • Engine Displacement (cc) 471cc
  • Compression Ratio (X:1) 10.7:1
  • Max. Power Output (kW @ rpm) 34.0kW/8,500rpm
  • Max. Torque (Nm @ rpm) 43.3Nm/6,000rpm
  • Stationary Noise Level (dB) Lurban 74, Lwot 78
  • Oil Capacity (L) 3.2 litres
  • Bore × Stroke (mm) 67 x 66.8
  • Engine Type Liquid-cooled, DOHC
  • Starter Electric
Wheels
  • Tyre Size Front 130/90-16M/C 67H
  • Tyre Size Rear 150/80-16M/C 71H
  • Wheels Front 16M/C x MT3.00
  • Wheels Rear 16M/C x MT3.50
Dimensions and Weights
  • Dimensions (L×W×H) (mm) 2,205 x 820 x 1,090
Instruments and Electrics
  • Instruments Digital
  • Tail Light LED
Drivertrain
  • Clutch Type Wet multiplate, Assisted slipper clutch
  • Transmission Type 6-speed
  • Final Drive Chain
Lighting
  • Battery Capacity (V / Ah) 12V
  • Headlight / Taillight LED
Chassis
  • Wheelbase (mm) 1490
  • Seat Height (mm) 690mm
  • Ground Clearance (mm) 125
  • Caster Angle (degrees) 28°
  • Trail (mm) 110
  • Kerb Weight (kg) 191
Fuel System
  • Carburation PGM-FI
  • Fuel Tank Capacity (L) 11.2
  • CO2 Emissions WMTC (g / km) 84
  • Fuel Consumption (L / 100 km) 27.9 km/L (3.6 L/100km)
Suspension
  • Suspension Front: Type 41mm Telescopic forks
  • Suspension Rear: Type Showa with pro-link system

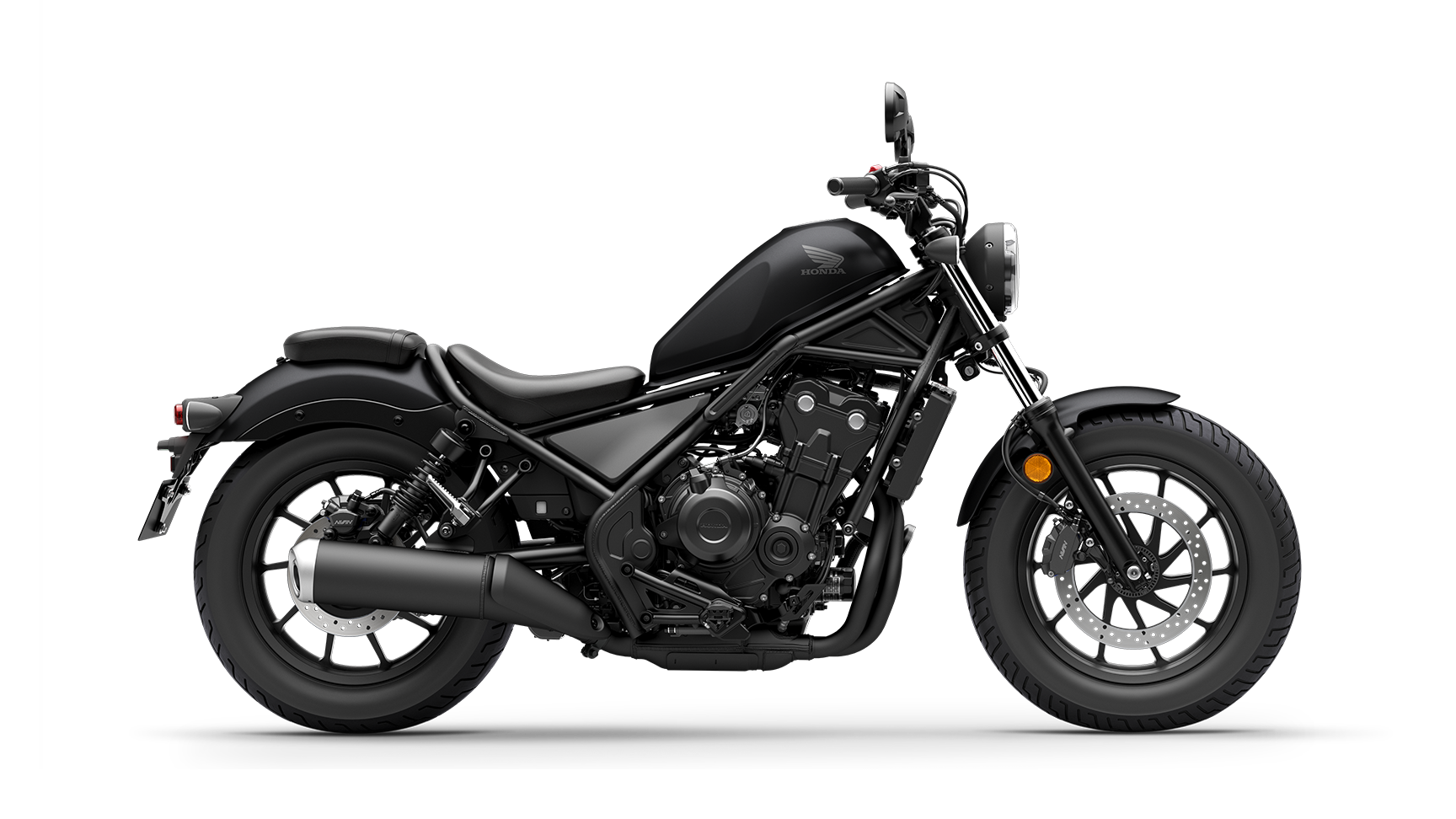

CMX500 Rebel Special Edition 2025

From £6,099
Configure your
Key Specs
  • Clutch Type Wet multiplate, Assisted slipper clutch
  • Headlight / Taillight LED
  • Seat Height (mm) 690mm
  • Instruments Digital
Engine
  • Engine Displacement (cc) 471cc
  • Compression Ratio (X:1) 10.7:1
  • Max. Power Output (kW @ rpm) 34.0kW/8,500rpm
  • Max. Torque (Nm @ rpm) 43.3Nm/6,000rpm
  • Stationary Noise Level (dB) Lurban 74, Lwot 78
  • Oil Capacity (L) 3.2 litres
  • Bore × Stroke (mm) 67 x 66.8
  • Engine Type Liquid-cooled, DOHC
  • Starter Electric
Wheels
  • Tyre Size Front 130/90-16M/C 67H
  • Tyre Size Rear 150/80-16M/C 71H
  • Wheels Front 16M/C x MT3.00
  • Wheels Rear 16M/C x MT3.50
Dimensions and Weights
  • Dimensions (L×W×H) (mm) 2,205 x 820 x 1,090
Instruments and Electrics
  • Instruments Digital
  • Tail Light LED
Drivertrain
  • Clutch Type Wet multiplate, Assisted slipper clutch
  • Transmission Type 6-speed
  • Final Drive Chain
Lighting
  • Battery Capacity (V / Ah) 12V
  • Headlight / Taillight LED
Chassis
  • Wheelbase (mm) 1490
  • Seat Height (mm) 690mm
  • Ground Clearance (mm) 125
  • Caster Angle (degrees) 28°
  • Trail (mm) 110
  • Kerb Weight (kg) 192
Fuel System
  • Carburation PGM-FI
  • Fuel Tank Capacity (L) 11.2
  • CO2 Emissions WMTC (g / km) 84
  • Fuel Consumption (L / 100 km) 27.9 km/L (3.6 L/100km)
Suspension
  • Suspension Front: Type 41mm Telescopic forks
  • Suspension Rear: Type Showa with pro-link system
