Specifications and Price
Change model
-

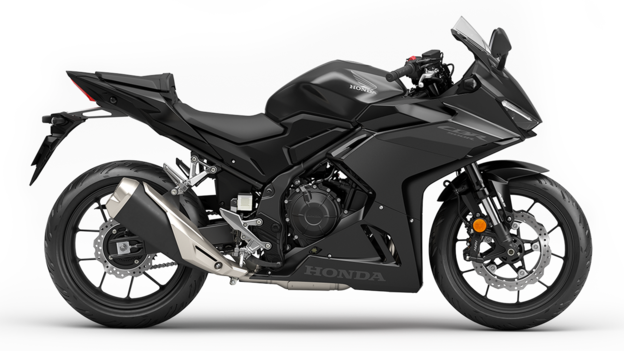

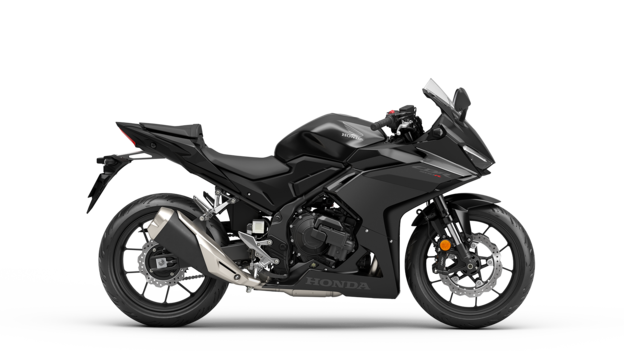

Matt Gunpowder Black Metallic
-

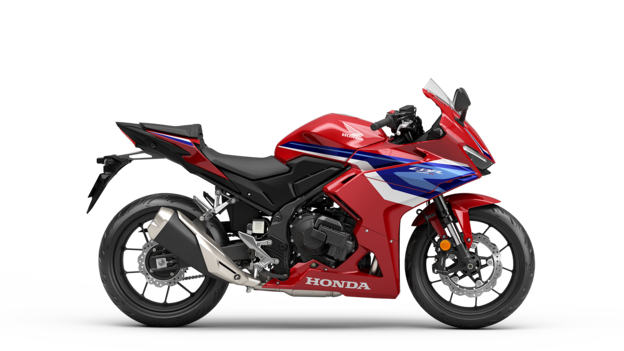

Grand Prix Red
-
Matte Gunpowder Black Metallic
-
Grand Prix Red
Specifications
Key Features
-
Connectivity
Honda RoadSync
Engine
-
Bore × Stroke (mm)
67mm x 66.8mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7:1
-
Engine Displacement (cc)
471 cc
-
Engine Type
Liquid-cooled 4-stroke DOHC parallel twin
-
Max. Power Output
35kW [47hp] / 8,600rpm
-
Max. Torque
43Nm / 6500 rpm
-
Starter
Electric
-
Throttle Bore
34
-
C02 Emissions (g/km)
80
Wheels
-
ABS System
2 channel
-
Brakes Front
320 mm x 5 mm disc with two piston caliper
-
Brakes Rear
240 mm x 5 mm disc with single piston caliper
-
Suspension Front
Showa 41mm SFF-BP USD forks
-
Suspension Rear
Prolink mono with 5 stage pre-load adjuster, steel square pipe swingarm
-
Tyre Size Front
120/70ZR-17M/C
-
Tyre Size Rear
160/60ZR-17M/C
-
Wheels Front
17M/C X MT3.5 5Y-Spoke Cast Aluminium
-
Wheels Rear
17M/C X MT4.5 5Y-Spoke Cast Aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12v 7.4Ah
-
Caster Angle
25.5°
-
Dimensions (L×W×H) (mm)
2,080mmX755mmX1,145mm
-
Frame type
Steel diamond
-
Fuel Tank Capacity (Litres)
17.1 L
-
Fuel Consumption
28.6km/l [3.5L/100km]
-
Ground Clearance (mm)
130mm
-
Kerb Weight (kg)
191kg
-
Seat Height (mm)
785mm
-
Trail (mm)
102mm
-
Wheelbase (mm)
1,410mm
-
Turning Radius
2.9m
-
Noise Level
Lurban 73.5dB Lwot 76.8dB
Transmission
-
Clutch
Wet multiplate, A.S.clutch
-
Final Drive
Chain
-
Gearbox
6-speed Manual
Instruments and Electrics
-
Headlights
LED
-
Instruments
5in TFT Meter with customisable layout, including but not limited to Speedometer, Tachometer, Clock, Gear position, Shift UP Indicator
-
Tail Light
LED
-
Connectivity
Honda RoadSync
-
Emergency Stop Signal
Yes
-
Security
HISS
Engine
-
Bore × Stroke (mm)
67mm x 66.8mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.7:1
-
Engine Displacement (cc)
471 cc
-
Engine Type
Liquid-cooled 4-stroke DOHC parallel twin
-
Max. Power Output
35kW / 8600 rpm
-
Max. Torque
43Nm / 6500 rpm
-
Starter
Electric
-
Throttle Bore
34
-
C02 Emissions (g/km)
80
Wheels
-
ABS System
2 channel
-
Brakes Front
320 mm x 5 mm disc with two piston caliper
-
Brakes Rear
240 mm x 5 mm disc with single piston caliper
-
Suspension Front
Conventional Telescopic, 41mm, pre-load adjustable
-
Suspension Rear
Prolink mono with 5 stage pre-load adjuster, steel square pipe swingarm
-
Tyre Size Front
120/70ZR-17M/C
-
Tyre Size Rear
160/60ZR-17M/C
-
Wheels Front
Multi-Spoke Cast Aluminium
-
Wheels Rear
Multi-Spoke Cast Aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12v 7.4Ah
-
Caster Angle
25.5°
-
Dimensions (L×W×H) (mm)
2,080mmX755mmX1,145mm
-
Frame type
Steel diamond
-
Fuel Tank Capacity (Litres)
17.1 L
-
Fuel Consumption
28.6km/L / 3.5l/100km
-
Ground Clearance (mm)
130mm
-
Kerb Weight (kg)
192kg
-
Seat Height (mm)
785mm
-
Trail (mm)
102mm
-
Wheelbase (mm)
1,410mm
Transmission
-
Clutch
Wet multiplate, A.S.clutch
-
Final Drive
Chain
-
Gearbox
6 speed
Instruments and Electrics
-
Headlights
LED
-
Instruments
Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator
-
Tail Light
LED
-
Security
HISS
