Specifications

Your bike in detail

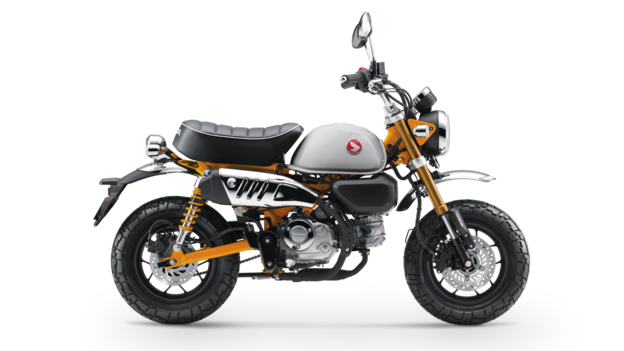

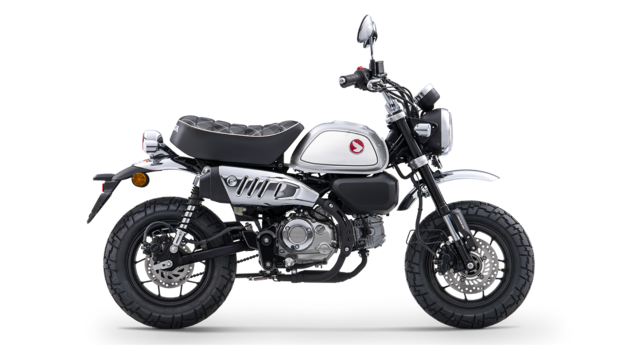

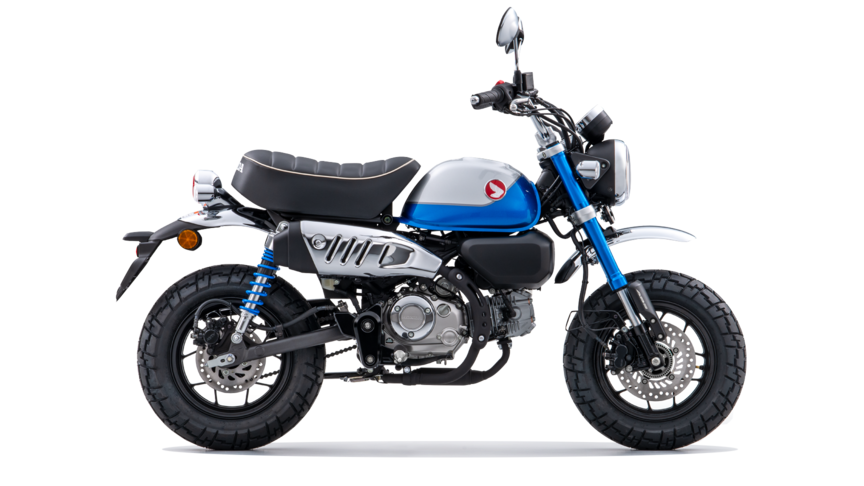

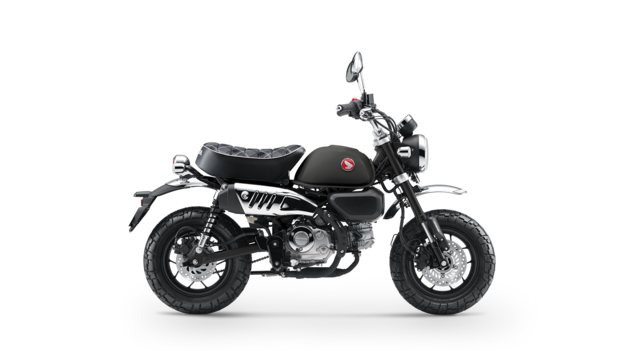

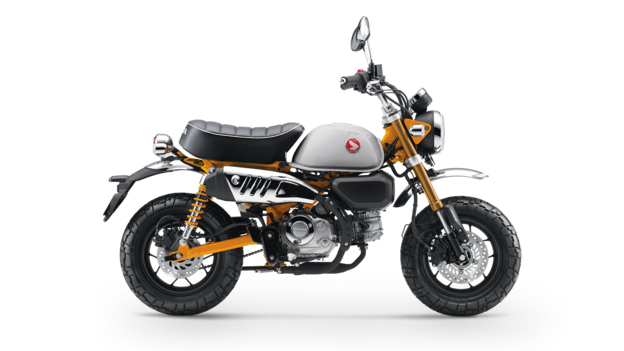

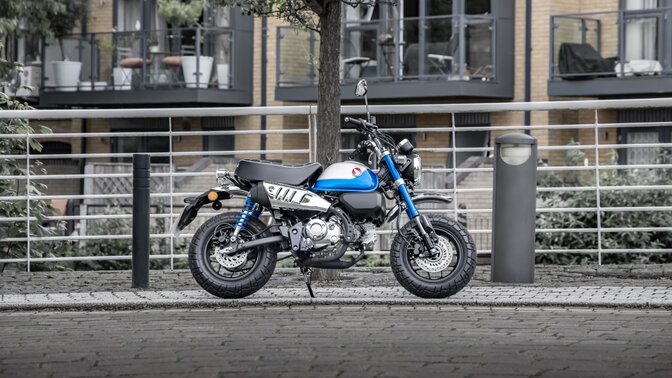

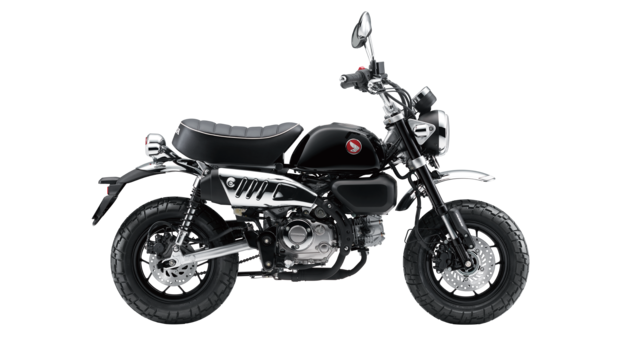

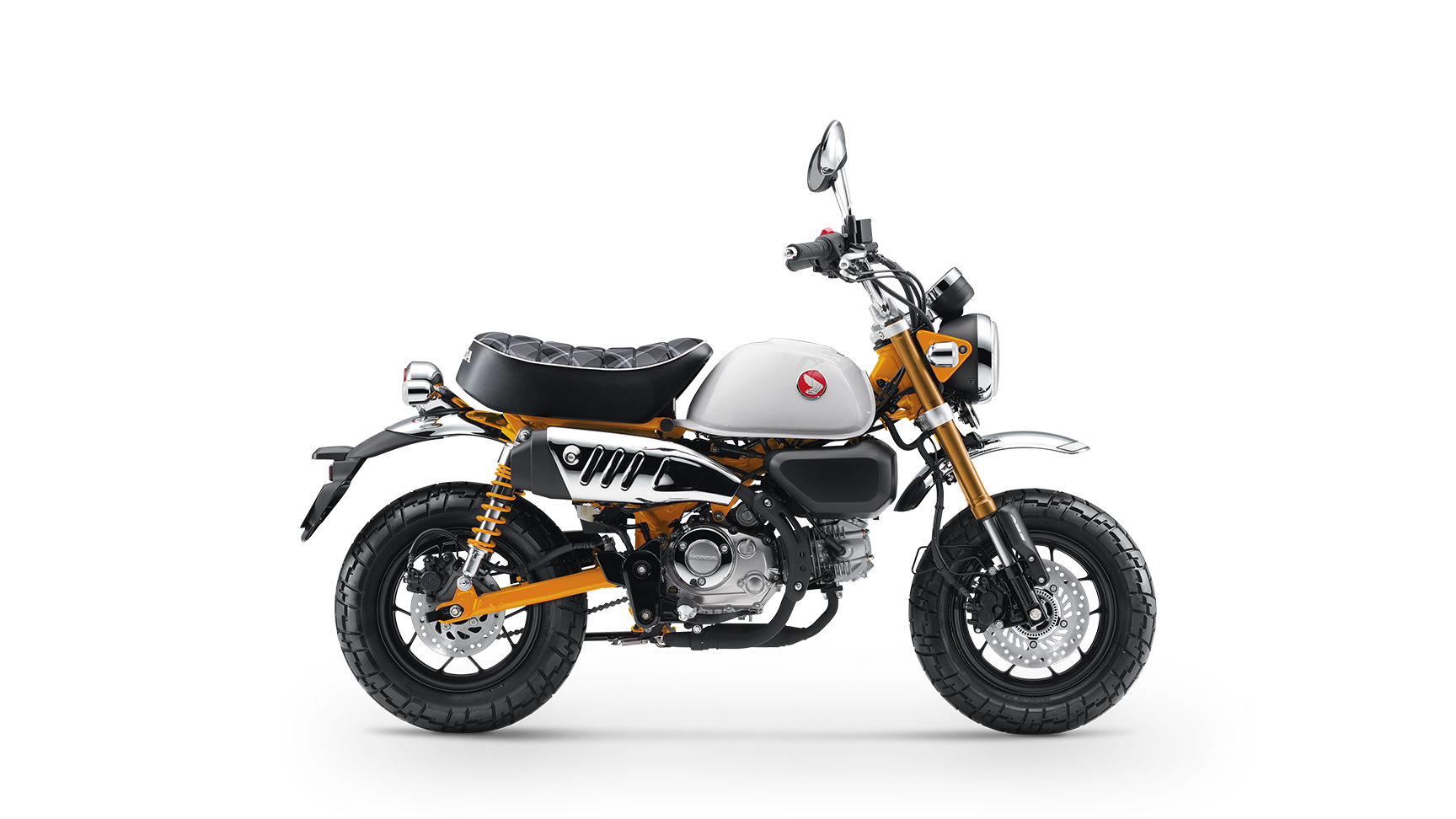

Monkey 2022


£3,899.00

Monkey 2022 key features

Monkey 2022 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 50.0 x 63.1 mm
    Carburation PGM-FI electronic fuel injection
    Compression Ratio 10.0 : 1
    Engine Displacement (cc) 124
    Engine Type Air-cooled SOHC 4-stroke 2-valve
    Max. Power Output 6.9kW / 6750rpm
    Max. Torque 11Nm / 5,500rpm
    Starter Electric
    C02 Emissions (g/km) 35 g/km
    Oil Capacity (Litres) 1.1 L
  • Wheels
    ABS System FR 1ch
    Brakes Front Single 220 mm hydraulic disc with IMU-based ABS
    Brakes Rear Single 190mm hydraulic disc
    Suspension Front USD fork, 100mm axle travel
    Suspension Rear Twin shock, 102mm axle travel
    Tyre Size Front 120/80-12M/C 65J
    Tyre Size Rear 130/80-12M/C 69J
    Wheels Front 10-spoke cast aluminium
    Wheels Rear 10-spoke cast aluminium
  • Dimensions and Weights
    Battery Capacity (VAh) 12V 3.5Ah
    Caster Angle 25°
    Dimensions (L×W×H) (mm) 1,710 x 755 x 1,030mm
    Frame type Steel backbone
    Fuel Tank Capacity (Litres) 5.6 L
    Fuel Consumption 1.5L/100km
    Ground Clearance (mm) 175 mm
    Kerb Weight (kg) 104 kg
    Seat Height (mm) 775 mm
    Trail (mm) 82mm
    Wheelbase (mm) 1,145 mm
    Turning Radius 1.9 m
  • Transmission
    Clutch Wet multiplate
    Final Drive Chain
    Gearbox 5 speed
    Transmission Type Manual
  • Instruments and Electrics
    Headlights LED
    Instruments LCD
    Tail Light LED
