Specifications and Price

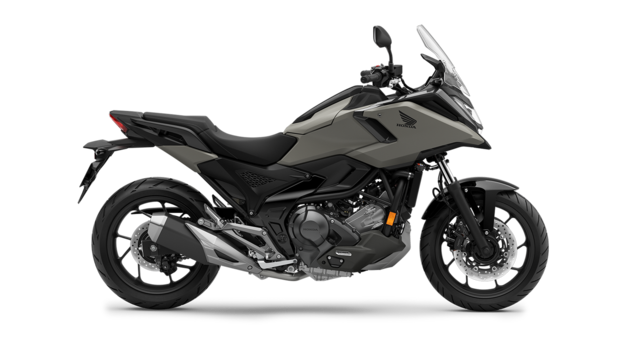

NC750X 2027
Technical Specifications
-
Bore × Stroke (mm)
77mm x 80mm
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Engine Displacement (cc)
745cc
-
Starter
Electric
-
Compression Ratio (X:1)
10.7 : 1
-
Max. Power Output (kW @ rpm)
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque (Nm @ rpm)
69Nm/4,750rpm(65/4,000rpm)
-
Oil Capacity (L)
4.0L
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
17M/C X MT3.50 Multi-spoke cast aluminium
-
Wheels Rear
17 M/C X MT4.50 Multi-spoke cast aluminium
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Gearbox
6-speed manual clutch transmission
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
USB socket
Optional (Type C )
-
Tail Light
LED
-
Security System
HISS
-
Clutch Type
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
-
Final Drive
Chain
-
ABS Type
2-channel ABS
-
Battery Capacity (V / Ah)
12V/11Ah/ 11.6Ah
-
Headlight / Taillight
LED
-
Frame Type
Diamond; steel pipe
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Seat Height (mm)
802 mm
-
Ground Clearance (mm)
145 mm
-
Caster Angle (degrees)
27°
-
Trail (mm)
110 mm
-
Turning radius (m)
3.0m
-
Kerb Weight (kg)
216kg
-
Carburation
PGM-FI electronic fuel injection
-
Fuel Tank Capacity (L)
14.1 litres
-
CO2 Emissions WMTC (g / km)
82g/km
-
Fuel Consumption (L / 100 km)
3.5L/100km
-
Suspension Front: Type
41mm telescopic fork, 120mm stroke
-
Suspension Rear: Type
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Bore × Stroke (mm)
77mm x 80mm
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Engine Displacement (cc)
745cc
-
Starter
Electric
-
Compression Ratio (X:1)
10.7 : 1
-
Max. Power Output (kW @ rpm)
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque (Nm @ rpm)
69Nm/4,750rpm(65/4,000rpm)
-
Oil Capacity (L)
4.0L
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
Multi-spoke cast aluminium
-
Wheels Rear
Multi-spoke cast aluminium
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Gearbox
6-speed manual clutch transmission
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
USB socket
Optional (Type-C)
-
Tail Light
LED
-
Security System
HISS
-
Clutch Type
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
-
Final Drive
Chain
-
ABS Type
2-channel ABS
-
Battery Capacity (V / Ah)
12V/11AH/11.6 Ah
-
Headlight / Taillight
LED
-
Auto Cancelling Indicators
No
-
Frame Type
Diamond; steel pipe
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Seat Height (mm)
802 mm
-
Ground Clearance (mm)
145 mm
-
Caster Angle (degrees)
27°
-
Trail (mm)
110 mm
-
Turning radius (m)
3.0m
-
Kerb Weight (kg)
226kg
-
Carburation
PGM-FI electronic fuel injection
-
Fuel Tank Capacity (L)
14.1 litres
-
CO2 Emissions WMTC (g / km)
82g/km
-
Fuel Consumption (L / 100 km)
3.5L/100km
-
Suspension Front: Type
41mm telescopic fork, 120mm stroke
-
Suspension Rear: Type
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Bore × Stroke (mm)
77mm x 80mm
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Engine Displacement (cc)
745cc
-
Starter
Electric
-
Compression Ratio (X:1)
10.7 : 1
-
Max. Power Output (kW @ rpm)
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque (Nm @ rpm)
69Nm/4,750rpm(65/4,000rpm)
-
Oil Capacity (L)
4.0L
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
Multi-spoke cast aluminium
-
Wheels Rear
Multi-spoke cast aluminium
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Gearbox
6-speed manual clutch transmission
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
USB socket
Optional (Type-C)
-
Tail Light
LED
-
Security System
HISS
-
Clutch Type
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
-
Final Drive
Chain
-
ABS Type
2-channel ABS
-
Battery Capacity (V / Ah)
12V/11AH/11.6 Ah
-
Headlight / Taillight
LED
-
Auto Cancelling Indicators
No
-
Frame Type
Diamond; steel pipe
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Seat Height (mm)
802 mm
-
Ground Clearance (mm)
145 mm
-
Caster Angle (degrees)
27°
-
Trail (mm)
110 mm
-
Turning radius (m)
3.0m
-
Kerb Weight (kg)
226kg
-
Carburation
PGM-FI electronic fuel injection
-
Fuel Tank Capacity (L)
14.1 litres
-
CO2 Emissions WMTC (g / km)
82g/km
-
Fuel Consumption (L / 100 km)
3.5L/100km
-
Suspension Front: Type
41mm telescopic fork, 120mm stroke
-
Suspension Rear: Type
Monoshock damper, Pro-Link swingarm, 120mm travel
-
Bore × Stroke (mm)
77mm x 80mm
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Engine Displacement (cc)
745cc
-
Starter
Electric
-
Compression Ratio (X:1)
10.7 : 1
-
Max. Power Output (kW @ rpm)
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque (Nm @ rpm)
69Nm/4,750rpm(65/4,000rpm)
-
Oil Capacity (L)
4.0L
-
Brakes Front
Axial mounted twin-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
240mm single wavy hydraulic disc with single-piston caliper
-
Tyre Size Front
120/70-ZR17M/C (58W)
-
Tyre Size Rear
160/60-ZR17M/C (69W)
-
Wheels Front
17M/C X MT3.50 Multi-spoke cast aluminium
-
Wheels Rear
17 M/C X MT4.50 Multi-spoke cast aluminium
-
Dimensions (L×W×H) (mm)
2210mm x 846mm x 1330mm
-
Gearbox
6-speed manual clutch transmission
-
Ignition System
Computer controlled digital transistorised with electronic advance
-
Instruments
LCD Meter, with speedometer, bar-type tachometer Various functions can be selected and displayed Can be operated by the switch on handle.
-
USB socket
Optional (Type C )
-
Tail Light
LED
-
Security System
HISS
-
Clutch Type
MT: Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch
-
Transmission Type
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission
-
Final Drive
Chain
-
ABS Type
2-channel ABS
-
Battery Capacity (V / Ah)
12V/11Ah/ 11.6Ah
-
Headlight / Taillight
LED
-
Frame Type
Diamond; steel pipe
-
Wheelbase (mm)
MT: 1525mm DCT: 1535mm
-
Seat Height (mm)
802 mm
-
Ground Clearance (mm)
145 mm
-
Caster Angle (degrees)
27°
-
Trail (mm)
110 mm
-
Turning radius (m)
3.0m
-
Kerb Weight (kg)
216kg
-
Carburation
PGM-FI electronic fuel injection
-
Fuel Tank Capacity (L)
14.1 litres
-
CO2 Emissions WMTC (g / km)
82g/km
-
Fuel Consumption (L / 100 km)
3.5L/100km
-
Suspension Front: Type
41mm telescopic fork, 120mm stroke
-
Suspension Rear: Type
Monoshock damper, Pro-Link swingarm, 120mm travel
