Specifications and Price

Change model

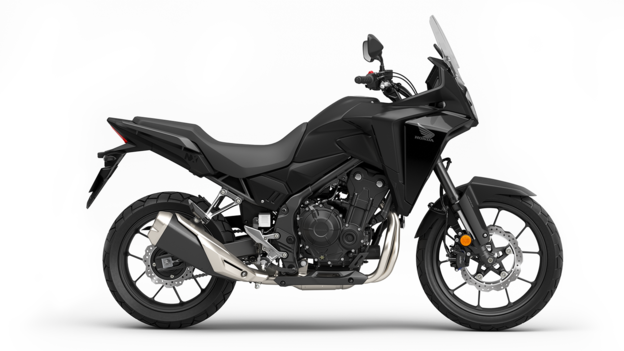

  • NX500 2024 Matte Gunpowder Black Metallic Matte Gunpowder Black Metallic

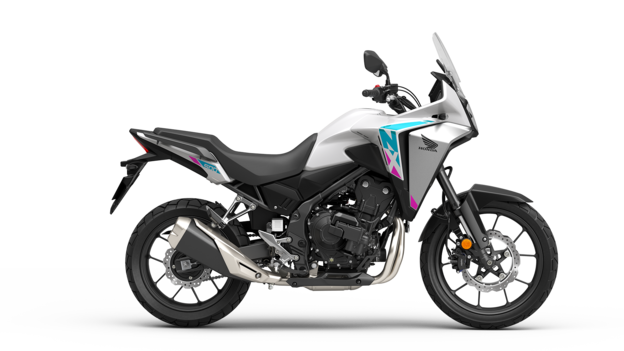

  • NX500 2024 Pearl Horizon White Pearl Horizon White
  • NX500 2024 Grand Prix Red Grand Prix Red

Specifications

NX500 2024

£6,829.00

Configure your

Key Features

  • Connectivity

    Honda RoadSync

  • 12v Socket

    Optional

Engine

  • Bore × Stroke (mm)

    67mm x 66.8mm

  • Carburation

    PGM-FI electronic fuel injection

  • Compression Ratio

    10.7:1

  • Engine Displacement (cc)

    471cc

  • Engine Type

    Liquid-cooled 4-stroke DOHC parallel twin

  • Max. Power Output

    35kW [47hp] / 8,600rpm

  • Max. Torque

    43Nm/6,500rpm

  • Starter

    Electric

  • Throttle Bore

    34

  • C02 Emissions (g/km)

    82

  • Oil Capacity (Litres)

    3.2L

Wheels

  • ABS System

    2 channel

  • Brakes Front

    Dual 296mm x 4mm disc with Nissin axial mounted two piston calipers

  • Brakes Rear

    Single 240mm x 5mm disc with single piston caliper

  • Suspension Front

    Showa 41mm SFF-BP USD forks

  • Suspension Rear

    Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm

  • Tyre Size Front

    110/80R19M/C (59H)

  • Tyre Size Rear

    160/60R17M/C (69H)

  • Wheels Front

    19M/C X MT2.5 Multi-Spoke Cast Aluminium

  • Wheels Rear

    17M/C X MT4.5 Multi-Spoke Cast Aluminium

Dimensions and Weights

  • Battery Capacity (VAh)

    12v 7.4Ah

  • Caster Angle

    27.5°

  • Dimensions (L×W×H) (mm)

    2,165mmX830mmX1,415mm

  • Frame type

    Steel diamond

  • Fuel Tank Capacity (Litres)

    17.5L

  • Fuel Consumption

    27.8km/l [3.6L/100km]

  • Ground Clearance (mm)

    180mm

  • Kerb Weight (kg)

    196kg

  • Seat Height (mm)

    830mm

  • Trail (mm)

    108mm

  • Wheelbase (mm)

    1,445mm

  • Turning Radius

    2.4

  • Noise Level

    Lurban 74.0dB Lwot 77.0dB

Transmission

  • Clutch

    Wet multiplate, Assisted slipper clutch

  • Final Drive

    Chain

  • Gearbox

    6-speed

Instruments and Electrics

  • Headlights

    LED

  • 12v Socket

    Optional

  • Instruments

    5in TFT Meter with customisable layout, including but not limited to Speedometer, Tachometer, Clock, Gear position, Shift UP Indicator.

  • Tail Light

    LED

  • Connectivity

    Honda RoadSync

  • Emergency Stop Signal

    Yes

  • Security

    HISS
