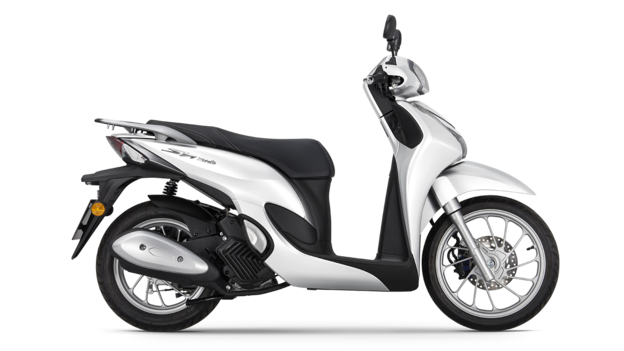

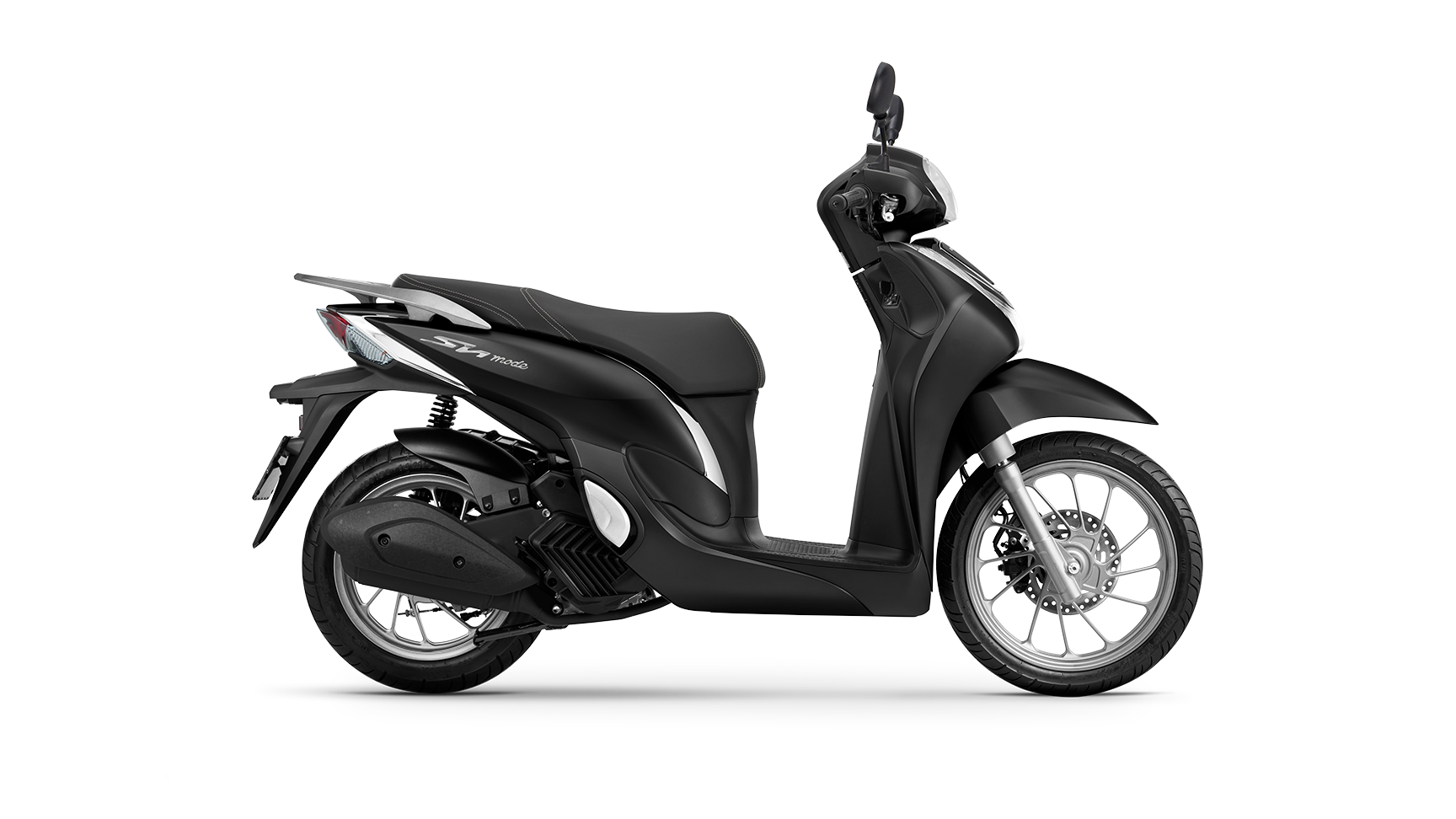

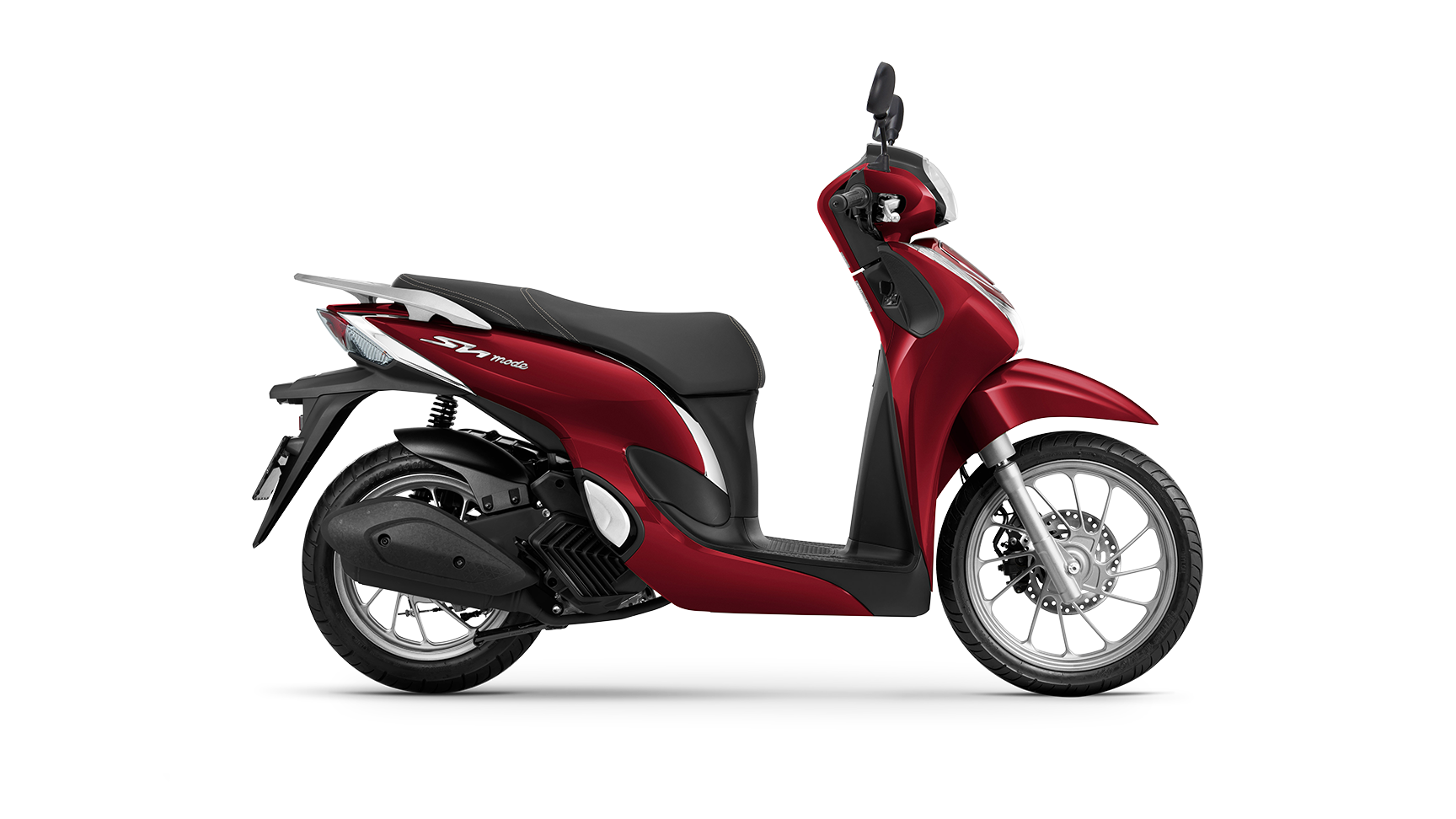

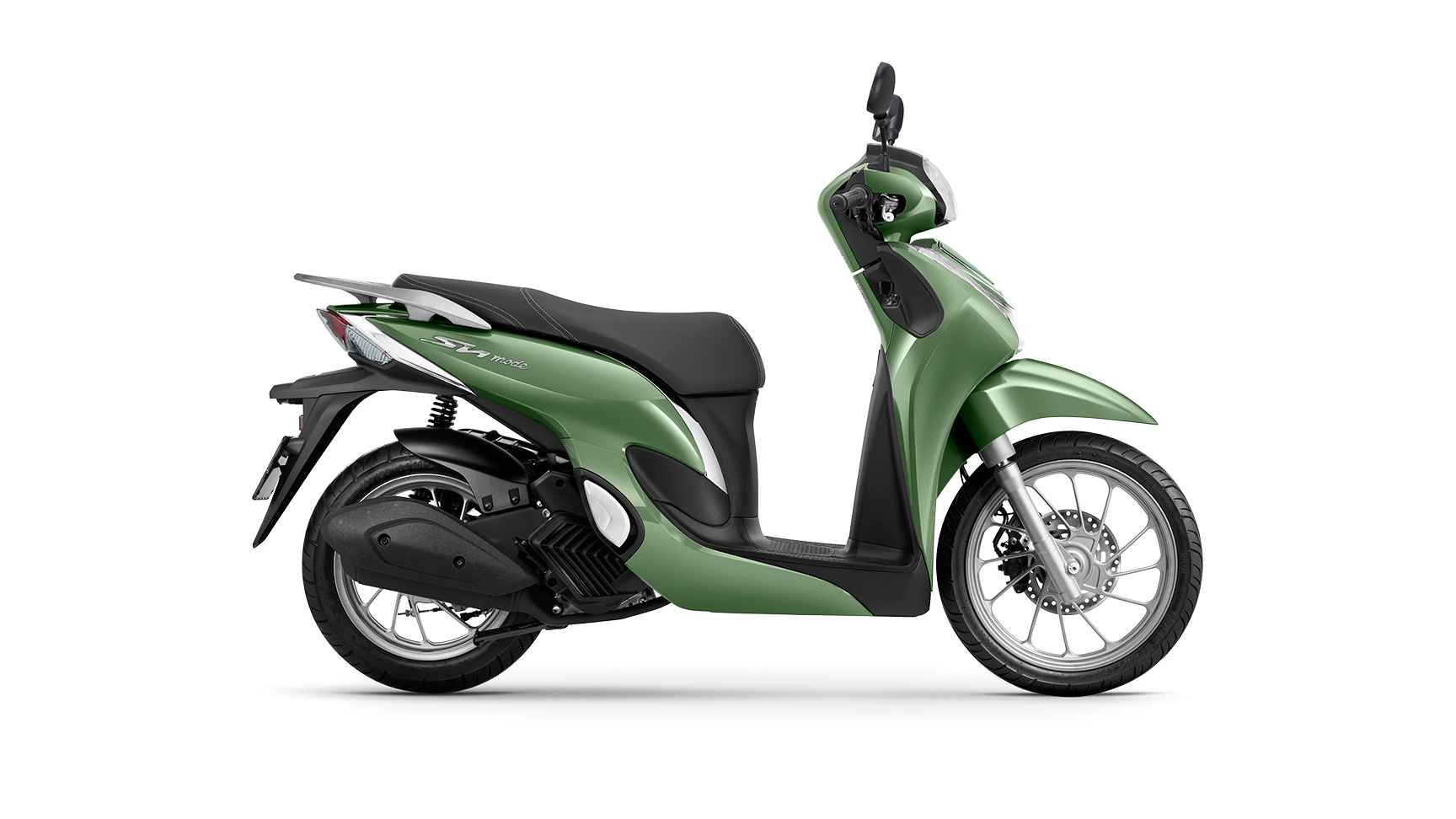

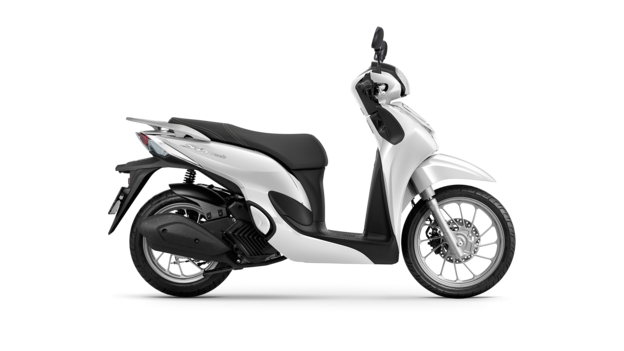

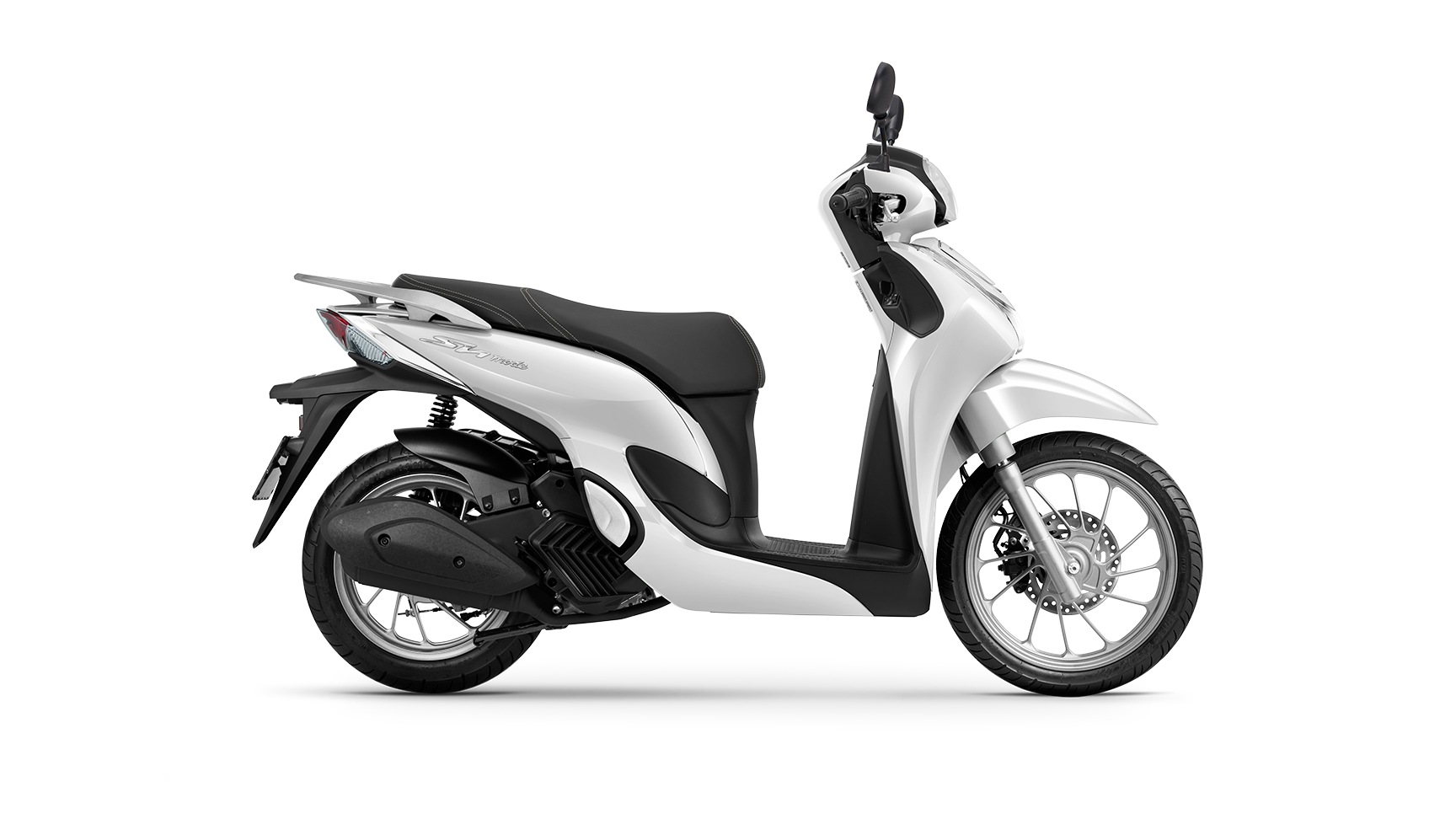

SH MODE 125

SH MODE 125 2021



SH MODE 125 key features

SH MODE 125 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 53.5 × 55.5mm
    Carburation PGM-FI electronic fuel injection
    Compression Ratio 11.5 :1
    Engine Displacement (cc) 125cc
    Engine Type Single-cylinder, liquid cooled, SOHC 4-stroke
    Max. Power Output 8.4 kW / 8,750rpm
    Max. Torque 12.1Nm / 5000rpm
    Starter Electric
    C02 Emissions (g/km) 48.1 g/km
    Oil Capacity (Litres) 0.9L
  • Wheels
    Brakes Front 220mm hydraulic disc
    Brakes Rear 130mm drum
    Suspension Front Telescopic
    Suspension Rear Unit swingarm
    Tyre Size Front 80/90-16M/C 43P
    Tyre Size Rear 100/90-14M/C 57P
    Wheels Front Cast aluminium 16M/CXMT2.15
    Wheels Rear Cast aluminium 14M/CXMT2.75
  • Dimensions and Weights
    Battery Capacity (VAh) 12V-7Ah
    Caster Angle 27°
    Dimensions (L×W×H) (mm) 1950 X 670 X 1100 mm
    Frame type Under bone
    Fuel Tank Capacity (Litres) 5.5 litres
    Fuel Consumption 47.6 km/L (50 km/L with Idle Stop)
    Ground Clearance (mm) 150 mm
    Kerb Weight (kg) 118 kg
    Seat Height (mm) 765 mm
    Trail (mm) 69.5 mm
    Wheelbase (mm) 1305 mm
    Turning Radius 1.97m
  • Transmission
    Clutch Automatic Centrifugal Clutch Dry Type
    Final Drive V-Belt
    Transmission Type CVT
  • Instruments and Electrics
    Headlights LED
    Instruments LCD with Speedometer, fuel gauge and time
    Tail Light Bulb
    USB Socket Yes
