Specifications and Price

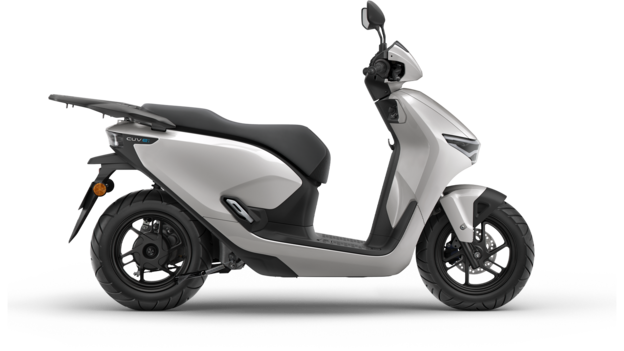

CUV e: Connected 2025
Specifications
-
Max. Power Output
up to 6kW
-
Max. Torque
22 Nm
-
Acceleration
0→100m 8.3Sec
-
Max Speed
83 km/h
-
ABS System
None
-
Brakes Front
Hydraulic Disk,one-piston brake caliper, Φ190 single Disk
-
Brakes Rear
Mechanical Leading Trailing,Φ130mm Drum inside diameter
-
Suspension Front
Telescopic, Φ26mm pipe, free valve type, 90mm stroke,non-adjustable
-
Suspension Rear
Mono Suspension, 75mm travel, non-adjustable
-
Tyres Front
100/90-12 59J
-
Tyres Rear
110/90-12 64J
-
Wheels Front
12 x MT2.15 Aluminium Cast Wheel
-
Wheels Rear
12 x MT2.50 Aluminium Cast Wheel
-
Caster Angle
26°0’
-
Dimensions (L×W×H) (mm)
L 1970 mm, W 675 mm, H 1100 mm
-
Frame type
Under Born Type
-
Ground Clearance (mm)
145 mm
-
Kerb Weight (kg)
119 kg
-
Seat Height (mm)
760 mm
-
Trail (mm)
77㎜
-
Wheelbase (mm)
1,310 mm
-
Turning Radius
1.99m
-
Headlights
LED
-
Instruments
7" Connected Display
-
Tail Light
LED
-
Connectivity
YES RoadSync Duo
-
USB Socket
Type-C
-
Riding Modes
3 Mode
-
Additional Features
SMART Key, Reverse assist; Navigation System
-
Immobiliser
YES
-
Range (WMTC Class 1)
72 Km (WMTC)
-
Energy Consumption (Wh/km)
63Wh/km
-
Motor Installing Location
Rear wheel left side
-
Type
Lithium Ion
-
Voltage
50.26V
-
Capacity
Min. 26.1Ah / 1314Wh
-
Total number of battery packs
2
-
Weight
10.2kg
-
Dimensions
298mm x 177.3mm x 156.3mm
-
Charger
Off-board type - Single-phase AC100-240V 50/60Hz
-
Charging Time 0% to 100%
6 hours
-
Charging Time 25% to 75%
160 minutes
-
Rated Power
270
-
Lifecycle
>2,500
