Specifications and Price
Change model
-

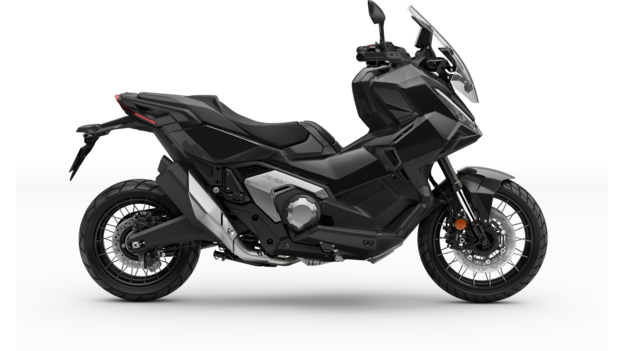

Graphite Black
-

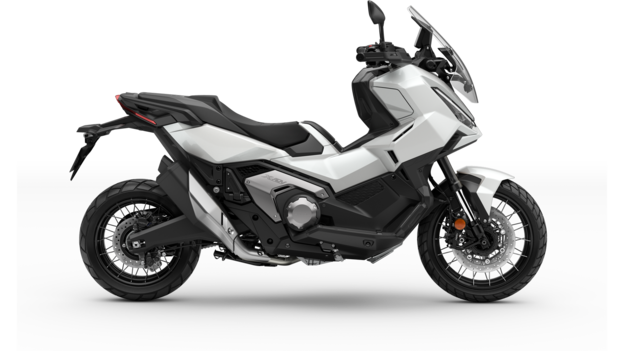

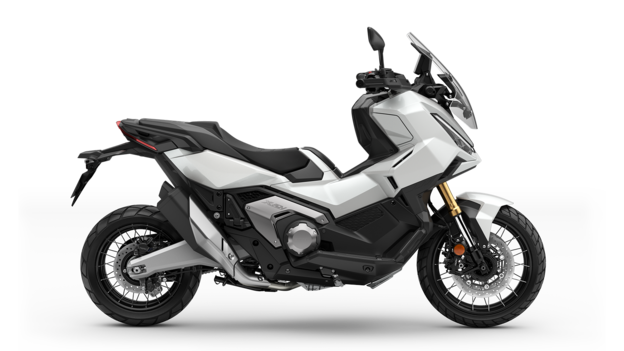

Pearl Glare White
-

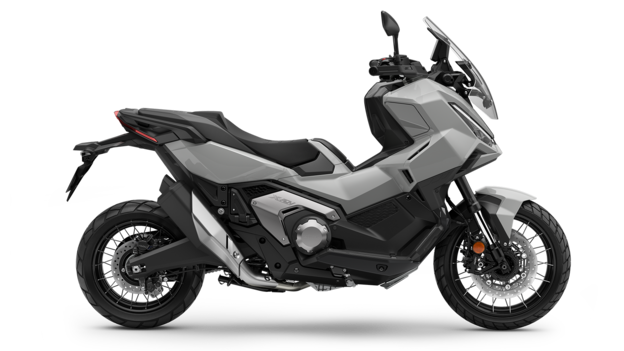

Matte Deep Mud Grey
-

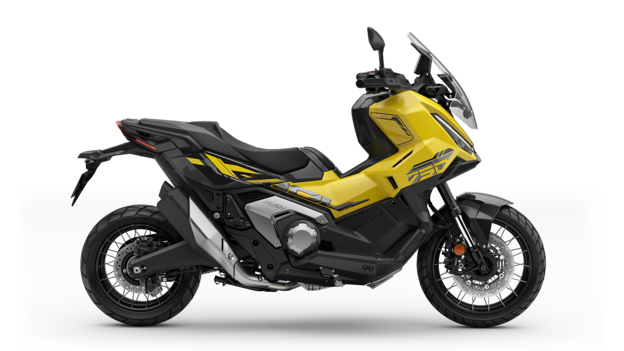

Matte Goldfinch Yellow
-

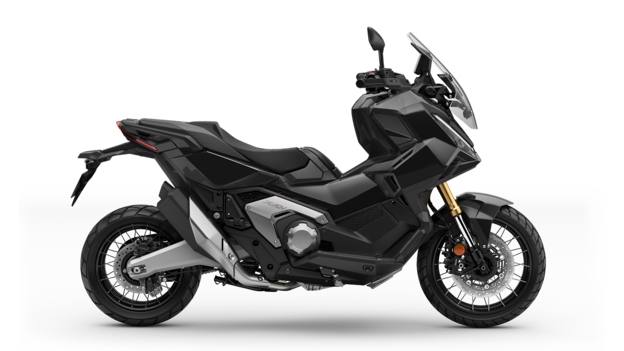

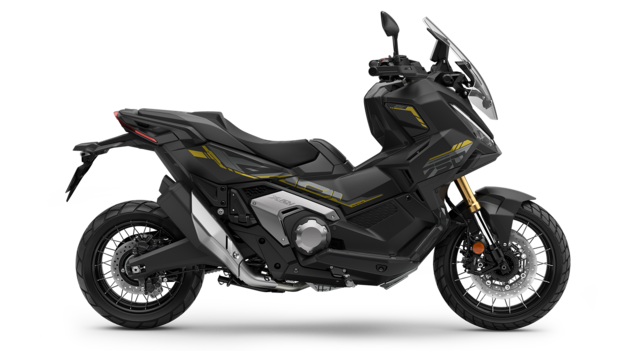

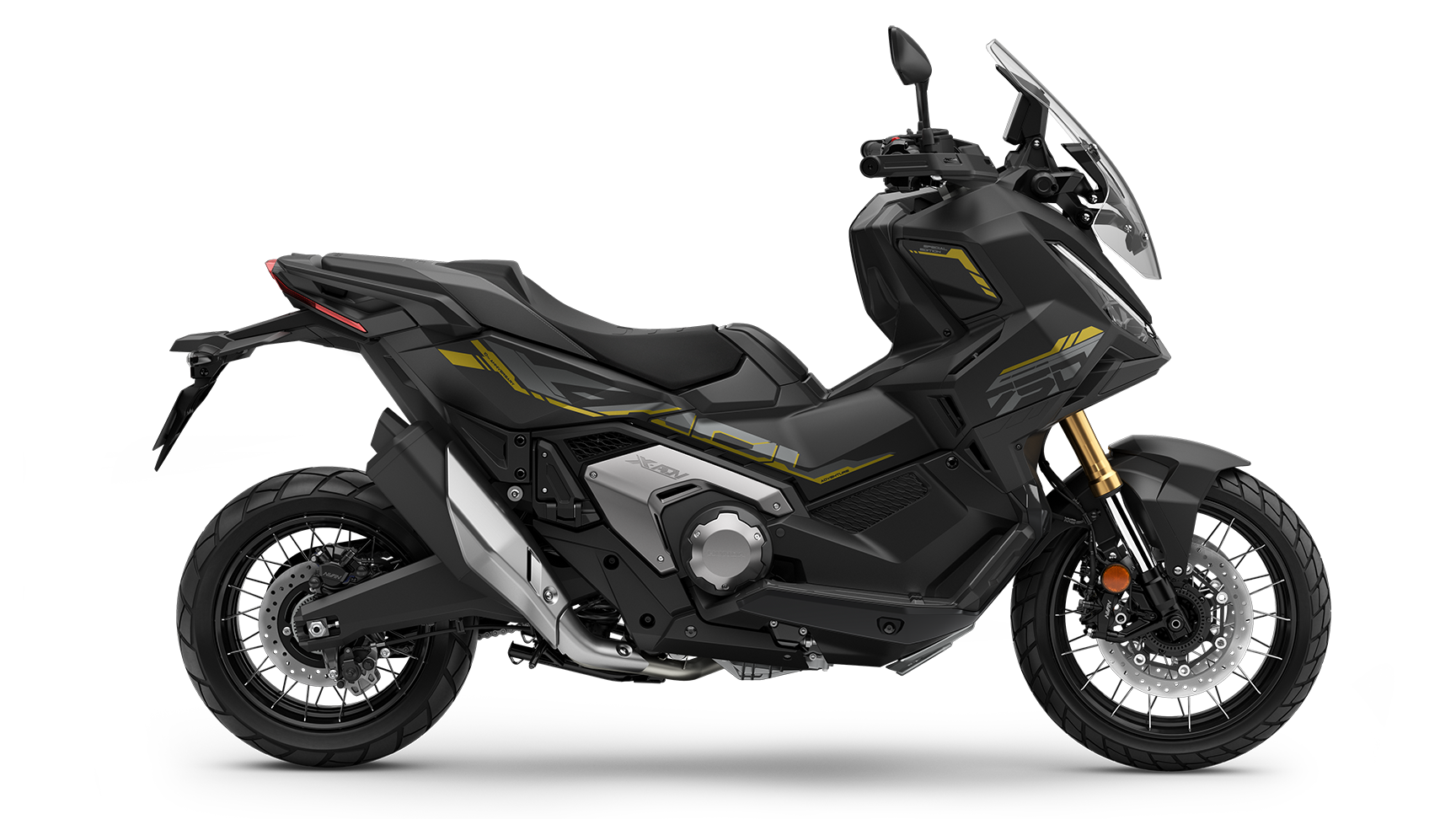

Matte Ballistic Black Metallic
-
Iridium Grey Metallic
-

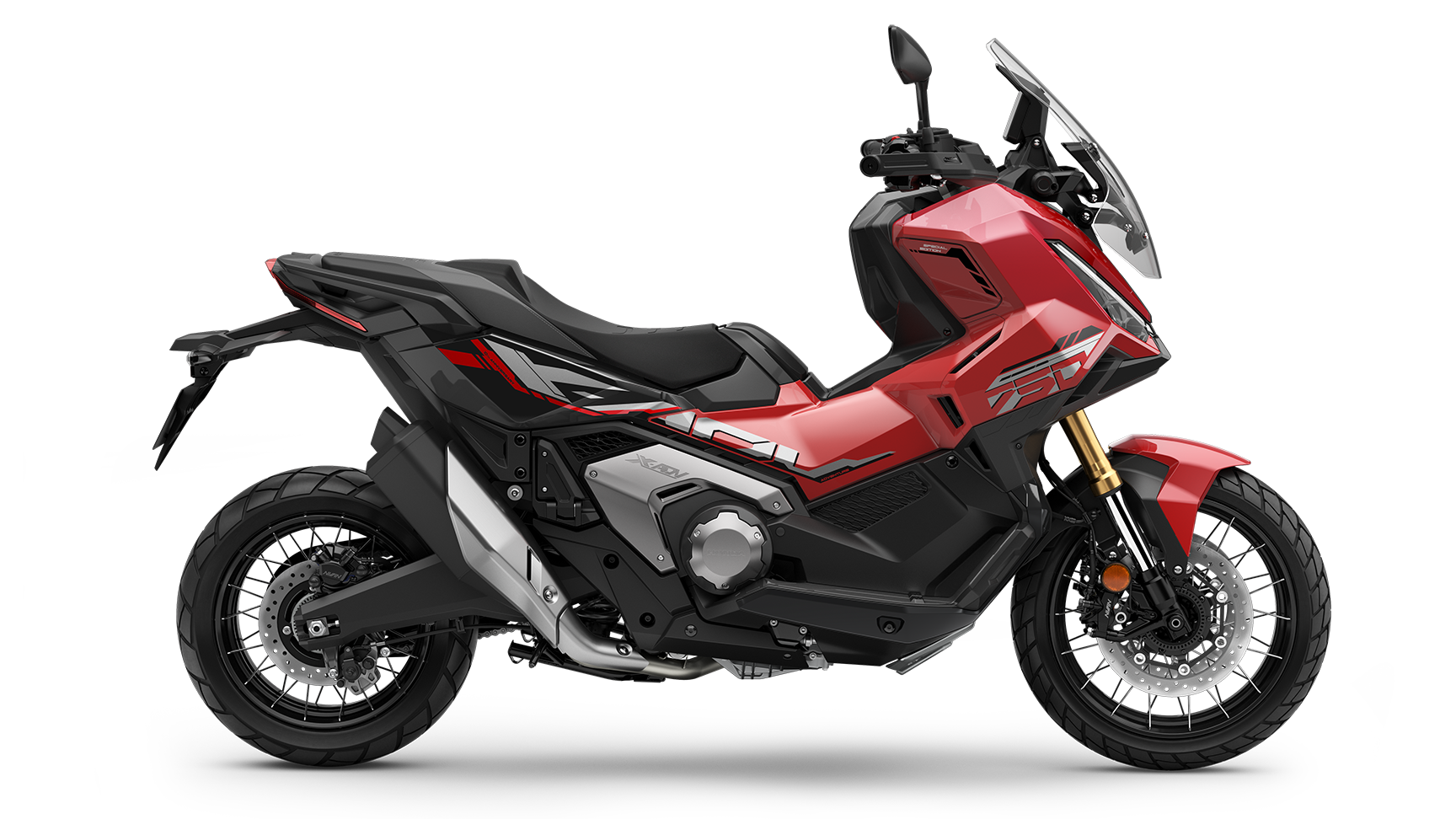

Grand Prix Red
-

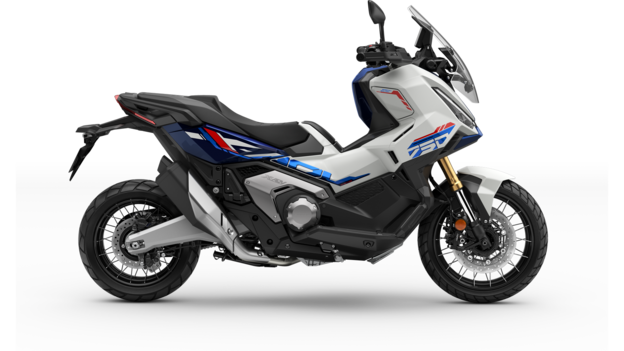

Puco Blue
Technical Specifications
X-ADV 2025
£11,249.00
Engine
-
Bore × Stroke (mm)
77 mm x 80 mm
-
Carburation
PGM-FI Fuel Injection
-
Compression Ratio
10.7
-
Engine Displacement (cc)
745 cc
-
Engine Type
Liqued cooled 4 Strocke 8 Valve SOHC Parallel Twin
-
Max. Power Output
43.1 kW at 6,750 rpm (35 kW at 6,000 rpm)
-
Max. Torque
69 Nm at 4,750 rpm
-
Starter
E-Starter
-
C02 Emissions (g/km)
85 g/km
-
Oil Capacity (Litres)
4 L
Wheels
-
Brakes Front
Radial mounted four-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
Single piston caliper, 240 mm single disc
-
Suspension Front
41 mm SFF-CA USD, 153.5 mm stroke
-
Suspension Rear
Monoshock damper, Prolink swingarm, 150 mm travel
-
Tyres Front
120/70R17 M/C (58H)
-
Tyres Rear
160/60R15 M/C (67H)
-
Wheels Front
17M/C X MT3.50 Spoke Wheel
-
Wheels Rear
15M/C X MT4.50 Spoke Wheel
Dimensions and Weights
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2,215 mm x 940 mm x 1370 mm
-
Frame type
Diamond Steel Pipe Frame
-
Fuel Tank Capacity (Litres)
13.2 L
-
Fuel Consumption
3.6 L/100km
-
Ground Clearance (mm)
165 mm
-
Kerb Weight (kg)
237 kg
-
Seat Height (mm)
820 mm
-
Trail (mm)
104 mm
-
Wheelbase (mm)
1,590 mm
-
Turning Radius
2.8m
-
Noise Level
max. 87 dB
Transmission
-
Clutch
2x Wet Multiplate Clutch
-
Final Drive
Chain
-
Transmission Type
6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
12v Socket
option
-
Instruments
5 inch TFT Panel Multi information display
-
Tail Light
LED
-
Daytime Running Lights
Yes
-
Connectivity
RoadSync
-
USB Socket
Type - C
-
Self Cancelling Indicators
Yes
-
Cruise Control
Yes
Additional Features
-
Riding Modes
Sport, Standard, Rain, Gravel and User Mode
X-ADV Special Edition 2025
£12,449.00
Engine
-
Bore × Stroke (mm)
77 mm x 80 mm
-
Carburation
PGM-FI Fuel Injection
-
Compression Ratio
10.7
-
Engine Displacement (cc)
745 cc
-
Engine Type
Liqued cooled 4 Strocke 8 Valve SOHC Parallel Twin
-
Max. Power Output
43.1 kW at 6,750 rpm (35 kW at 6,000 rpm)
-
Max. Torque
69 Nm at 4,750 rpm
-
Starter
E-Starter
-
C02 Emissions (g/km)
85 g/km
-
Oil Capacity (Litres)
4 L
Wheels
-
Brakes Front
Radial mounted four-piston brake caliper, 296 mm floating double disc
-
Brakes Rear
Single piston caliper, 240 mm single disc
-
Suspension Front
41 mm SFF-CA USD, 153.5 mm stroke
-
Suspension Rear
Monoshock damper, Prolink swingarm, 150 mm travel
-
Tyres Front
120/70R17 M/C (58H)
-
Tyres Rear
160/60R15 M/C (67H)
-
Wheels Front
17M/C X MT3.50 Spoke Wheel
-
Wheels Rear
15M/C X MT4.50 Spoke Wheel
Dimensions and Weights
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2,215 mm x 940 mm x 1370 mm
-
Frame type
Diamond Steel Pipe Frame
-
Fuel Tank Capacity (Litres)
13.2 L
-
Fuel Consumption
3.6 L/100km
-
Ground Clearance (mm)
165 mm
-
Kerb Weight (kg)
237 kg
-
Seat Height (mm)
820 mm
-
Trail (mm)
104 mm
-
Wheelbase (mm)
1,590 mm
-
Turning Radius
2.8m
-
Noise Level
max. 87 dB
Transmission
-
Clutch
2x Wet Multiplate Clutch
-
Final Drive
Chain
-
Transmission Type
6-speed Dual Clutch Transmission
Instruments and Electrics
-
Headlights
LED
-
12v Socket
option
-
Instruments
5 inch TFT Panel Multi information display
-
Tail Light
LED
-
Daytime Running Lights
Yes
-
Connectivity
RoadSync
-
USB Socket
Type - C
-
Self Cancelling Indicators
Yes
-
Cruise Control
Yes
Additional Features
-
Riding Modes
Sport, Standard, Rain, Gravel and User Mode
X-ADV 2024
£11,199.00
Engine
-
Bore × Stroke (mm)
77mm x 80mm
-
Carburation
PGM FI electronic fuel injection
-
Compression Ratio
10.7 : 1
-
Engine Displacement (cc)
745cc
-
Engine Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
-
Max. Power Output
43.1kW/6,750rpm(35kW/6,000rpm)
-
Max. Torque
69Nm/4,750rpm(65/4,000rpm)
-
Starter
Electric
-
C02 Emissions (g/km)
85g
-
Oil Capacity (Litres)
4.0L
Wheels
-
Brakes Front
296mm double hydraulic disc with radial 4-piston caliper
-
Brakes Rear
240mm single hydraulic disc with 1-piston caliper
-
Suspension Front
φ41mm USD,153.5mm stroke
-
Suspension Rear
Monoshock damper, Pro-Link swingarm, 150mm travel
-
Tyre Size Front
120/70-R17M/C (58H)
-
Tyre Size Rear
160/60-R15M/C (67H)
-
Wheels Front
Spoke Wheel 17M/C x MT3.50
-
Wheels Rear
Spoke Wheel 15M/C x MT4.50
Dimensions and Weights
-
Battery Capacity (VAh)
12V/11AH
-
Caster Angle
27°
-
Dimensions (L×W×H) (mm)
2215m x 940mm x 1370mm
-
Frame type
Diamond; steel pipe
-
Fuel Tank Capacity (Litres)
13.2L
-
Fuel Consumption
3.6L/100km
-
Ground Clearance (mm)
165mm
-
Kerb Weight (kg)
236kg
-
Seat Height (mm)
820mm
-
Trail (mm)
104mm
-
Wheelbase (mm)
1590mm
-
Turning Radius
2.8m
Transmission
-
Clutch
Wet multiplate hydraulic 2-clutch
-
Final Drive
Chain
-
Transmission Type
6-speed dual clutch transmission
Instruments and Electrics
-
Headlights
LED DRL
-
Instruments
5inch color TFT Meter Choose from 4 type design Various functions can be selected and displayed Can be operated by the switch on handle.
-
Tail Light
LED
-
Connectivity
Yes
-
USB Socket
Type-C
-
Self Cancelling Indicators
Yes
-
Security
Smart system
