Specifications and Price
Change model
-

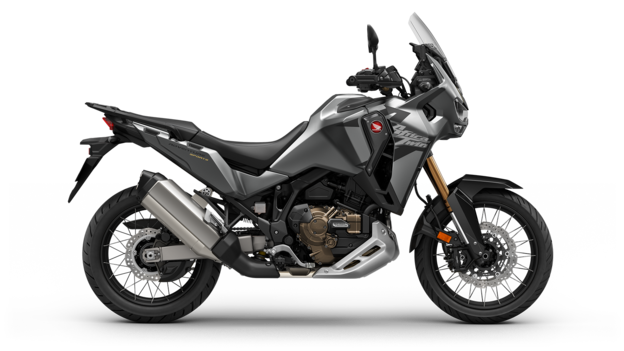

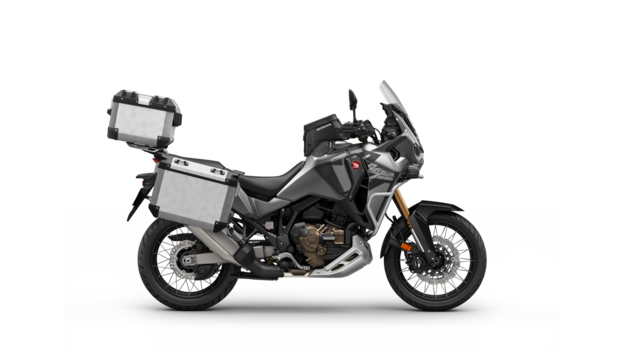

Matte Iridium Grey Metallic
-

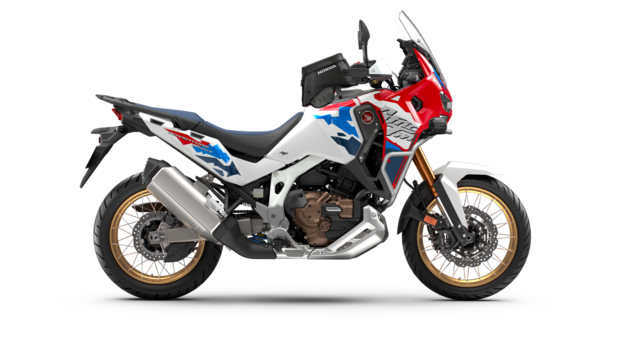

Pearl Glare White
-
Matte Iridium Grey Metallic
-
Pearl Glare White
Compare
Key Features
-
Connectivity
Bluetooth audio and Apple CarPlay/Android Auto (Wired)
-
Riding Modes
Urban, Tour, Gravel, Off Road, User
-
Emergency Stop Signal
Yes
-
Self Cancelling Indicators
Yes
-
12v Socket
Yes
-
USB Socket
Yes
-
Quick Shifter
Optional Accessory
-
Transmission Type
Manual Clutch Transmission
-
Cruise Control
Yes
-
Cornering Lights
Yes
Engine
-
Bore × Stroke (mm)
92.0mm x 81.5mm
-
Carburation
PGM-FI
-
Compression Ratio
10.5:1
-
Engine Displacement (cc)
1084
-
Engine Type
Liquid-cooled 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
-
Max. Power Output
75.0kW/7,500rpm
-
Max. Torque
112Nm/5,500rpm
-
Starter
Electric
-
Throttle Bore
46mm
-
C02 Emissions (g/km)
114g/km
-
Oil Capacity (Litres)
4.8
Wheels
-
Brakes Front
310mm dual wave floating hydraulic disc with aluminium hub, radial fit 4-piston calipers and sintered metal pads
-
Brakes Rear
256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. 2-Channel with rear ABS off mode.
-
Suspension Front
SHOWA Telescopic inverted fork with an inner tube diameter of 45mm and an Electric controlled unit (SHOWA EERA) with compression and rebound dumping adjustments, 210mm stroke
-
Suspension Rear
SHOWA Telescopic inverted fork with an inner tube diameter of 45mm, and an Electric controlled unit (SHOWA EERA) with compression and rebound dumping adjustments, 210mm stroke
-
Tyre Size Front
110/80-R19M/C 59V (Tubeless)
-
Tyre Size Rear
150/70-R18M/C 70H (Tubeless)
-
Wheels Front
19M/C x MT2.50 Wire spoke with aluminium rim
-
Wheels Rear
18M/C x MT4.00 Wire spoke with aluminium rim
Dimensions and Weights
-
Battery Capacity (VAh)
12V-6Ah Li-ion BATTERY
-
Caster Angle
27.5°
-
Dimensions (L×W×H) (mm)
2,305mm X 960mm X 1,475mm
-
Frame type
SemiDouble Cradle
-
Fuel Tank Capacity (Litres)
24.8L
-
Fuel Consumption
20.5km/l
-
Ground Clearance (mm)
220mm
-
Kerb Weight (kg)
243
-
Seat Height (mm)
835/855mm (Low Seat option 795mm)
-
Trail (mm)
106 mm
-
Wheelbase (mm)
1570
-
Turning Radius
2.6
-
Noise Level
Lurban 75.0dB, Lwot 80.5dB
Transmission
-
Clutch
Wet, Multiplate with coil springs, Aluminium Cam Assist and Slipper clutch
-
Clutch Operation
Cable
-
Final Drive
O-ring sealed chain
-
Gearbox
6-speed
-
Transmission Type
Manual Clutch Transmission
-
Quick Shifter
Optional Accessory
Instruments and Electrics
-
Headlights
LED
-
12v Socket
Yes
-
Ignition System
Electronic, digital transistor
-
Instruments
LCD METER 6.5inch TFT Touch Panel Multi informaiton display
-
Tail Light
LED
-
Daytime Running Lights
Yes
-
Cornering Lights
Yes
-
Connectivity
Bluetooth audio and Apple CarPlay/Android Auto (Wired)
-
USB Socket
Yes
-
Self Cancelling Indicators
Yes
-
Cruise Control
Yes
-
Emergency Stop Signal
Yes
-
Security
Immobiliser
Additional Features
-
Riding Modes
Urban, Tour, Gravel, Off Road, User
Key Features
-
Inertial Measurement Unit
6 axis
Key Features
-
Connectivity
Bluetooth audio and Apple CarPlay/Android Auto (Wired)
-
Riding Modes
Urban, Tour, Gravel, Off Road, User
-
Emergency Stop Signal
Yes
-
Self Cancelling Indicators
Yes
-
12v Socket
Yes
-
USB Socket
Yes
-
Quick Shifter
No
-
Transmission Type
Dual Clutch Transmission
-
Cruise Control
Yes
-
Cornering Lights
Yes
Engine
-
Bore × Stroke (mm)
92.0mm x 81.5mm
-
Carburation
PGM-FI
-
Compression Ratio
10.5:1
-
Engine Displacement (cc)
1084cm3
-
Engine Type
Liquid-cooled 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
-
Max. Power Output
75.0kW/7,500rpm
-
Max. Torque
112Nm/5,500rpm
-
Starter
Electric
-
Throttle Bore
46mm
-
C02 Emissions (g/km)
114g/km
-
Oil Capacity (Litres)
5.2
Wheels
-
ABS System
2 channel with IMU Selectable ABS MODE with ON road and OFF road
-
Brakes Front
310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
-
Brakes Rear
256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. 2-Channel with rear ABS off mode.
-
Suspension Front
SHOWA Telescopic inverted fork with an inner tube diameter of 45mm, and an Electric controlled unit (SHOWA EERA) with compression and rebound dumping adjustments, 210mm stroke
-
Suspension Rear
Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic remote control preload adjuster and electric control unit (SHOWA EERA) with compression and rebound damping adjustments, 200 mm rear wheel travel.
-
Tyres Front
Bridgestone BATTLAX ADVENTURECROSS TOURER AX41T Metzeler KAROO STREET
-
Tyre Size Front
110/80-R19M/C 59V (Tubeless)
-
Tyre Size Rear
150/70-R18M/C 70H (Tubeless)
-
Tyres Rear
Bridgestone BATTLAX ADVENTURECROSS TOURER AX41T Metzeler KAROO STREET
-
Wheels Front
19M/C x MT2.50 Wire spoke with aluminium rim
-
Wheels Rear
18M/C x MT4.00 Wire spoke with aluminium rim
Dimensions and Weights
-
Battery Capacity (VAh)
12V-6Ah Li-ion BATTERY
-
Caster Angle
27.5°
-
Dimensions (L×W×H) (mm)
2,305mm X 960mm X 1,475mm
-
Frame type
SemiDouble Cradle
-
Fuel Tank Capacity (Litres)
24.8L
-
Fuel Consumption
20.5km/l
-
Ground Clearance (mm)
220mm
-
Kerb Weight (kg)
253
-
Seat Height (mm)
835/855mm (Low Seat option 795mm)
-
Trail (mm)
106 mm
-
Wheelbase (mm)
1570
-
Turning Radius
2.6
-
Noise Level
Lurban 76.8dB, Lwot 82.3dB
Transmission
-
Clutch
2 Wet multiplate clutches with coil springs
-
Final Drive
O-ring sealed chain
-
Gearbox
6-speed
-
Transmission Type
Dual Clutch Transmission
-
Quick Shifter
No
Instruments and Electrics
-
Headlights
LED
-
12v Socket
Yes
-
Ignition System
Electronic, digital transistor
-
Instruments
LCD METER 6.5inch TFT Touch Panel Multi information display
-
Tail Light
LED
-
Daytime Running Lights
Yes
-
Cornering Lights
Yes
-
Connectivity
Bluetooth audio and Apple CarPlay/Android Auto (Wired)
-
USB Socket
Yes
-
Self Cancelling Indicators
Yes
-
Cruise Control
Yes
-
Emergency Stop Signal
Yes
-
Security
Immobiliser
Additional Features
-
Riding Modes
Urban, Tour, Gravel, Off Road, User
Key Features
-
Inertial Measurement Unit
6 axis
