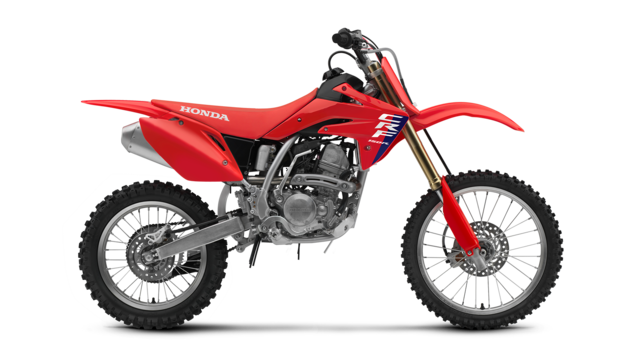

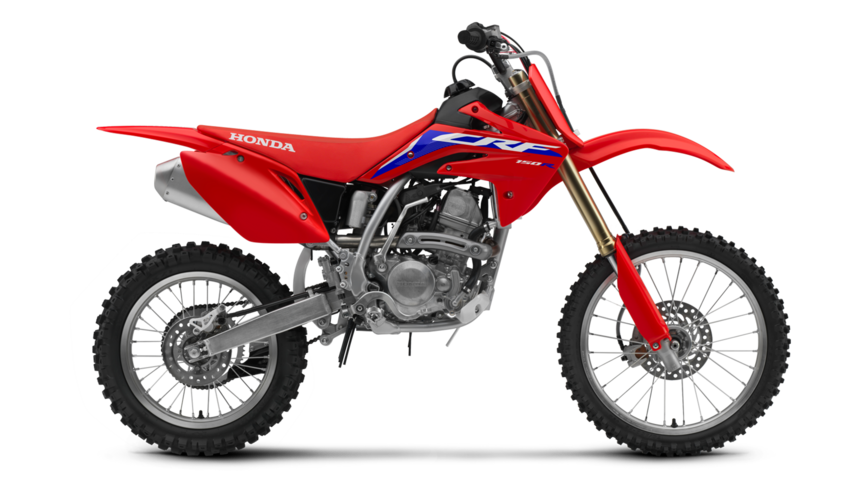

CRF150R 2022


CRF150R 2022 key features

CRF150R 2022 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 66 x 43.8
    Carburation 32mm Keihin FCR flat slide carburettor with throttle position sensor (TPS)
    Compression Ratio 11.7:1
    Engine Displacement (cc) 149.7
    Engine Type Liquid-Cooled 4-Stroke 4-Valve Unicam Single
    Starter Kick
  • Wheels
    Brakes Front 220mm hydraulic disc with single-piston caliper and sintered metal pads
    Brakes Rear 190mm hydraulic disc with single piston caliper and sintered metal pads
    Suspension Front 37mm inverted Showa leading-axle telescopic fork with adjustable compression and rebound damping; 275mm axle travel
    Suspension Rear Pro-Link with single Showa damper, adjustable compression and rebound damping; 273mm axle travel
    Tyre Size Front 70/100-19
    Tyre Size Rear 90/100-16
    Wheels Front Aluminium rim/wire spoke
    Wheels Rear Aluminium rim/wire spoke
  • Dimensions and Weights
    Caster Angle 27°
    Dimensions (L×W×H) (mm) 1,900 x 770 x 1,171
    Frame type Semi-double; Steel tube
    Fuel Tank Capacity (Litres) 4.3 litres
    Ground Clearance (mm) 336
    Kerb Weight (kg) 84.4
    Seat Height (mm) 866
    Trail (mm) 96
    Wheelbase (mm) 1285
  • Transmission
    Clutch Wet, multiplate
    Final Drive #420 Roller Chain
    Gearbox 5-speed
  • Instruments and Electrics
    Ignition System Solid-state Capacitor Discharge (CDI) with electronic advance
