Vision 110

Specifications and Price

Your bike in detail

Vision 110 2023

: £2,849.00

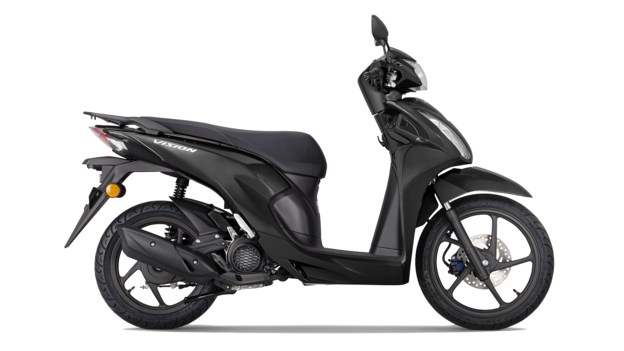

Matte Galaxy Black Metallic

Choose colour (4)

Vision 110 2023 key features

Vision 110 2023 Specifications ▲

Show specifications

Bore × Stroke (mm)	47mm X 63.1mm
Carburation	PGM-FI electronic fuel injection
Compression Ratio	10.0:1
Engine Displacement (cc)	109cc
Engine Type	Air-cooled 4-stroke OHC single
Max. Power Output	6.4kw / 7500rpm
Max. Torque	9.0Nm / 5750rpm
Starter	Electric
C02 Emissions (g/km)	44g/km
Oil Capacity (Litres)	0.8L

Brakes Front	Hydraulic Disc
Brakes Rear	Mechanical Leading Trailing
Suspension Front	Telescopic Φ31
Suspension Rear	unit swing arm
Tyre Size Front	80/90-16 inch 43P
Tyre Size Rear	90/90-14 inch 46P
Wheels Front	16M/C X MT1.85
Wheels Rear	14M/C X MT1.85

Dimensions and Weights

Battery Capacity (VAh)	GTZ6V 5.3Ah MF
Caster Angle	26.5°
Dimensions (L×W×H) (mm)	1,925mm X 686mm X 1,125mm
Frame type	Pressed Steel Underbone
Fuel Tank Capacity (Litres)	4,9L
Fuel Consumption	20.4km/Litre
Ground Clearance (mm)	175mm
Kerb Weight (kg)	100kg
Seat Height (mm)	785mm
Trail (mm)	71mm
Wheelbase (mm)	1280mm

Clutch	Automatic Centrifugal Clutch Dry Type
Final Drive	V-Belt
Transmission Type	CVT

Instruments and Electrics

Headlights	Bulb
Instruments	LCD with Speedometer, fuel gauge, odo meter.
Tail Light	Bulb

Javascript must be enabled to use Specifications

Honda takes advantages of the latest technologies to provide you with the best experience. Please enable Javascript in your browser settings to continue.

Javascript must be enabled to use Specifications

▲

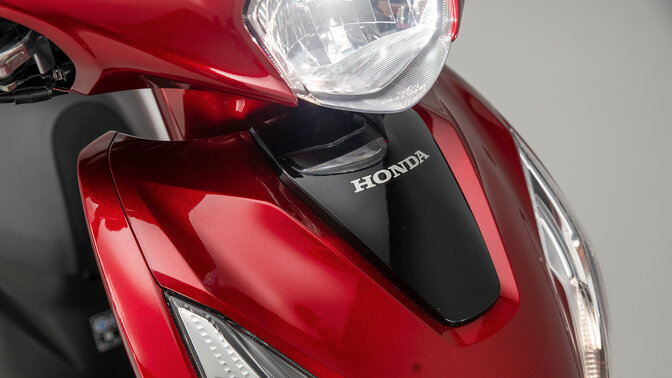

Honda Vision 110 close up of front fairing and headlight
