Specifications and Price
Change model
-

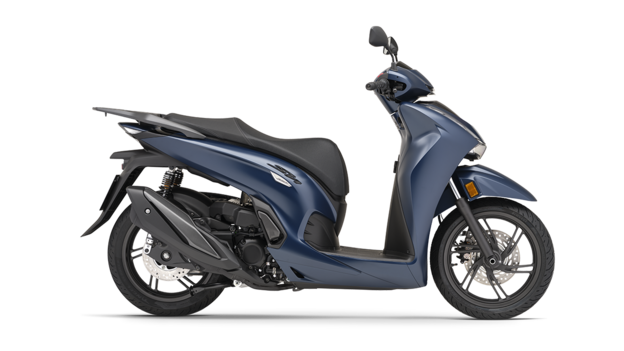

Matte Jeans Blue Metallic
-
_NH-C70_RHS-1728x972.png/_jcr_content/renditions/c1.png)

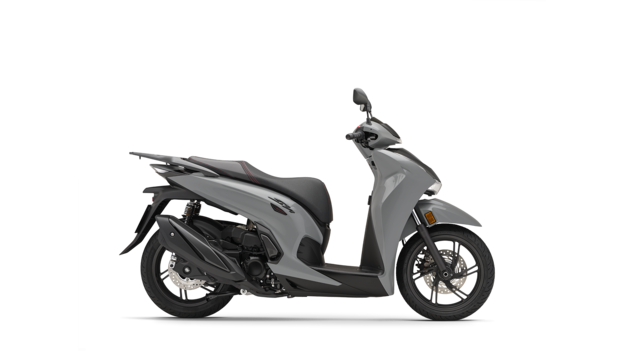

Matte Rock Grey
-
Matte Pearl Diaspro Red
-
Matte Coal Black Metallic
-
Matte Techno Silver Metallic
-

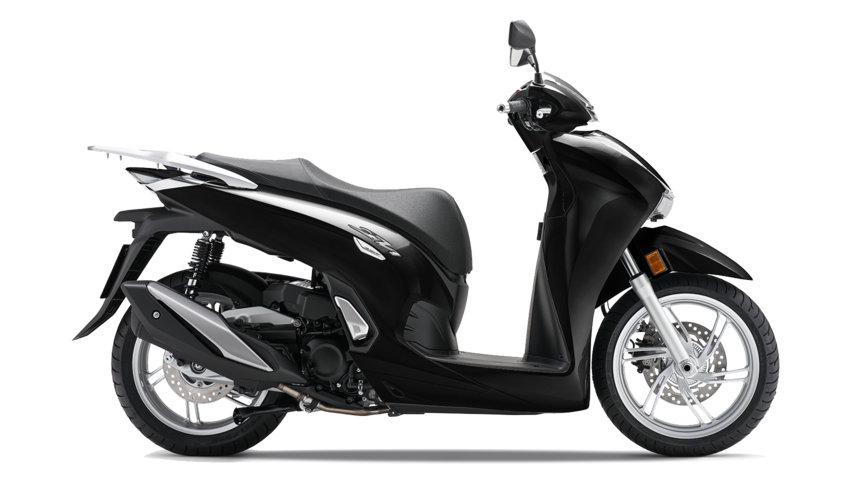

Coal Black
-
Matte Lucent Silver Metallic
Specifications
Key Specs
-
Seat Height (mm)
805 mm
-
Instruments
LCD - Fuel meter, Water temperature gauge, Odometer, Dual Trip, Average fuel consumption, Section fuel consumption, Clock, Oil change indicator
Engine
-
Bore × Stroke
77 mm x 70.8 mm
-
Carburation
PGM-FI Fuel Injection
-
Compression Ratio
10.5
-
Engine Displacement (cc)
330 cc
-
Engine Type
Liquid-cooled 4-stroke, 4 valve SOHC single, eSP+
-
Max. Power Output
21.5 kW at 7,500 rpm
-
Max. Torque
31.5 Nm at 5,250 rpm
-
Starter
E-Starter
-
C02 Emissions (g/km)
79 g/km
-
Oil Capacity (Litres)
1.85 L
-
Max Speed
134 km/h
Wheels
-
Brakes Front
2 piston caliper. 256 mm, single disc
-
Brakes Rear
1 piston caliper. 256 mm, single disc
-
Suspension Front
35 mm teleskop fork
-
Suspension Rear
Twin shock
-
Tyres Front
110/70R16M/C (52S)
-
Tyre Size Rear
130/70R16M/C (61S)
-
Wheels Front
16 x MT2.75 U-section 6-spoke cast aluminium
-
Wheels Rear
16 x MT3.50 U-section 6-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12 V 8.6Ah / 9.1Ah
-
Caster Angle
27.5°
-
Dimensions (L×W×H) (mm)
2,160 mm x 742 mm x 1,160 mm
-
Frame type
Tubular Steel Underbone
-
Fuel Tank Capacity (Litres)
9.1 L
-
Fuel Consumption
3.4 L/100km
-
Ground Clearance (mm)
130 mm
-
Kerb Weight (kg)
172 kg
-
Seat Height (mm)
805 mm
-
Trail (mm)
99 mm
-
Wheelbase (mm)
1,450 mm
-
Turning Radius
2.2
-
Noise Level
max. 82 dB
Transmission
-
Clutch
Automatic Centrifugal Clutch Dry Type
-
Final Drive
V-belt
-
Transmission Type
CVT
Instruments and Electrics
-
Instruments
LCD - Fuel meter, Water temperature gauge, Odometer, Dual Trip, Average fuel consumption, Section fuel consumption, Clock, Oil change indicator
-
Tail Light
LED
-
USB Socket
USB-C
-
Headlights
LED
Additional Features
-
Additional Features
ESS, SMART Key,
Key Specs
-
Clutch
Automatic Centrifugal
-
Headlights
LED
-
Seat Height (mm)
805mm
-
Instruments
LCD with Speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator.
Engine
-
Bore × Stroke (mm)
77 x 70.8mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.5:1
-
Engine Displacement (cc)
330cc
-
Engine Type
Liquid-cooled 4-stroke SOHC single; Euro 5 compliant
-
Max. Power Output
21.5kW @ 7,500rpm
-
Max. Torque
31.5Nm @ 5,250rpm
-
Starter
Elecric
-
C02 Emissions (g/km)
79 g/km
-
Oil Capacity (Litres)
1.85L
Wheels
-
Brakes Front
256mm x 4.5mm hydraulic disc with two piston caliper drilled rotor and resin mould pads, ABS
-
Brakes Rear
256mm x 5mm hydraulic disc with single-piston caliper, and resin mould pads, ABS
-
Suspension Front
35mm telescopic fork
-
Suspension Rear
Dual-damper unit swingarm
-
Tyre Size Front
110/70-16
-
Tyre Size Rear
130/70R16
-
Wheels Front
16 x MT2.75 U-section 6-spoke cast aluminium
-
Wheels Rear
16 x MT3.50 U-section 6-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V-11.6AH
-
Caster Angle
27．5°
-
Dimensions (L×W×H) (mm)
2,160 x 742 x 1,160mm
-
Frame type
Tubular steel underbone
-
Fuel Tank Capacity (Litres)
9.1 L
-
Fuel Consumption
29.4 km/l
-
Ground Clearance (mm)
131 mm
-
Kerb Weight (kg)
172kg
-
Seat Height (mm)
805mm
-
Trail (mm)
99 mm
-
Wheelbase (mm)
1,450 mm
-
Turning Radius
2.2m
Transmission
-
Clutch
Automatic Centrifugal
-
Final Drive
V-belt
-
Transmission Type
V-Matic
Instruments and Electrics
-
Headlights
LED
-
Instruments
LCD with Speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator.
-
Tail Light
LED
-
USB Socket
Yes
-
Security
Immobiliser
Key Specs
-
Clutch
Automatic Centrifugal
-
Headlights
LED
-
Seat Height (mm)
805mm
-
Instruments
LCD with Speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator.
Engine
-
Bore × Stroke (mm)
77 x 70.8mm
-
Carburation
PGM-FI electronic fuel injection
-
Compression Ratio
10.5:1
-
Engine Displacement (cc)
330cc
-
Engine Type
Liquid-cooled 4-stroke SOHC single; Euro 5 compliant
-
Max. Power Output
21.5kW @ 7,500rpm
-
Max. Torque
31.5Nm @ 5,250rpm
-
Starter
Elecric
-
C02 Emissions (g/km)
79 g/km
-
Oil Capacity (Litres)
1.85L
Wheels
-
Brakes Front
256mm x 4.5mm hydraulic disc with two piston caliper drilled rotor and resin mould pads, ABS
-
Brakes Rear
256mm x 5mm hydraulic disc with single-piston caliper, and resin mould pads, ABS
-
Suspension Front
35mm telescopic fork
-
Suspension Rear
Dual-damper unit swingarm
-
Tyre Size Front
110/70-16
-
Tyre Size Rear
130/70R16
-
Wheels Front
16 x MT2.75 U-section 6-spoke cast aluminium
-
Wheels Rear
16 x MT3.50 U-section 6-spoke cast aluminium
Dimensions and Weights
-
Battery Capacity (VAh)
12V-11.6AH
-
Caster Angle
27．5°
-
Dimensions (L×W×H) (mm)
2,160 x 742 x 1,160mm
-
Frame type
Tubular steel underbone
-
Fuel Tank Capacity (Litres)
9.1 L
-
Fuel Consumption
29.4 km/l
-
Ground Clearance (mm)
131 mm
-
Kerb Weight (kg)
172kg
-
Seat Height (mm)
805mm
-
Trail (mm)
99 mm
-
Wheelbase (mm)
1,450 mm
-
Turning Radius
2.2m
Transmission
-
Clutch
Automatic Centrifugal
-
Final Drive
V-belt
-
Transmission Type
V-Matic
Instruments and Electrics
-
Headlights
LED
-
Instruments
LCD with Speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator.
-
Tail Light
LED
-
USB Socket
Yes
-
Security
Immobiliser
