CMX1100 REBEL

Specifications and Price

Your bike in detail

Select a bike to display specification details.

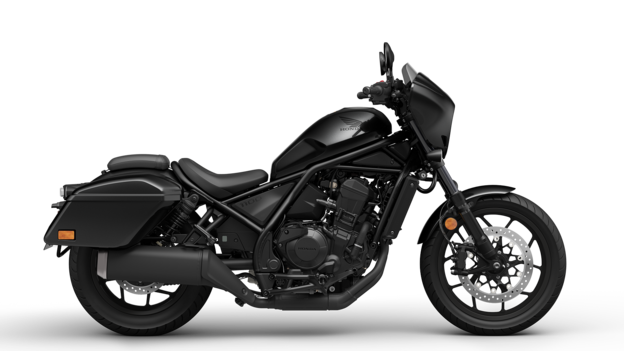

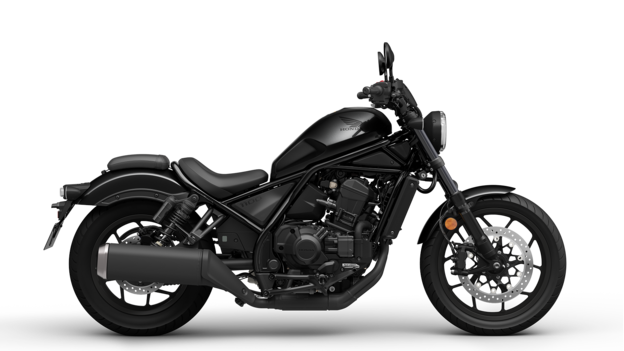

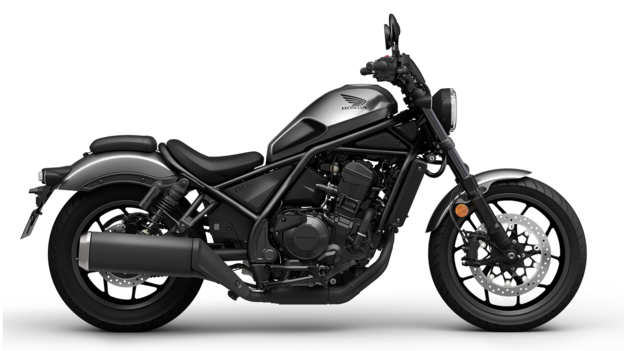

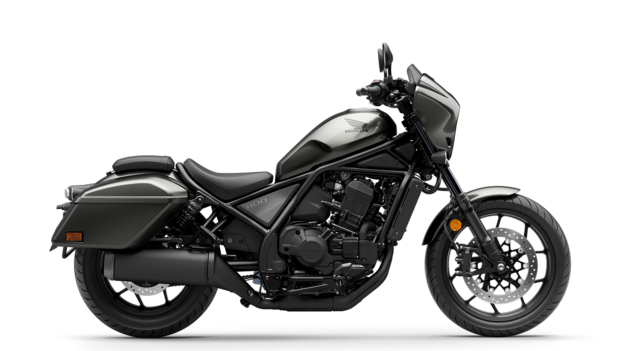

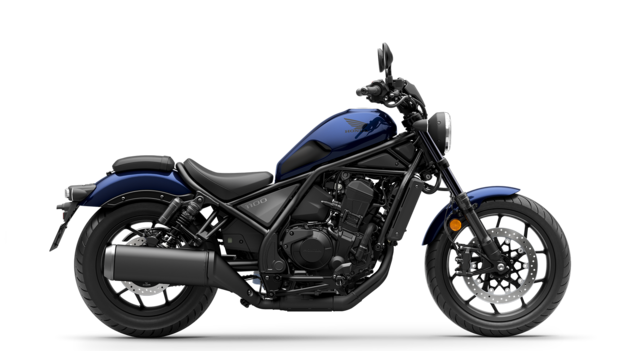

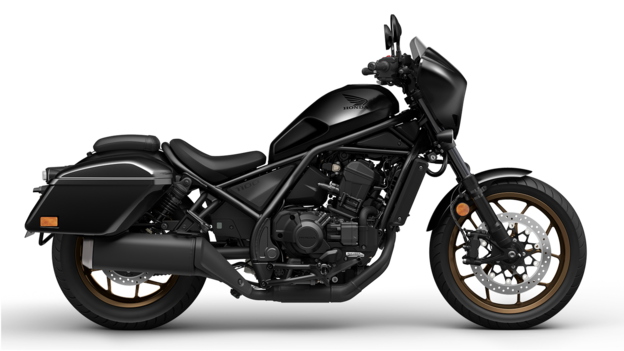

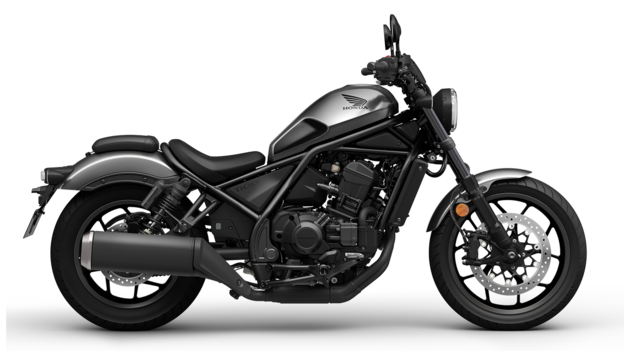

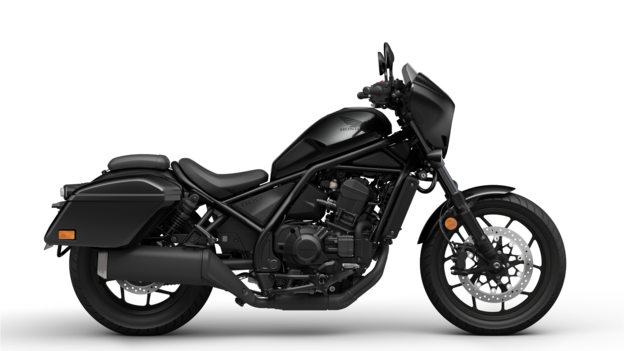

CMX1100 Rebel 2024

Choose variant (8)

CMX1100 Rebel 2024

: £9,799.00

Iridium Grey Metallic

Choose colour (2)

CMX1100 Rebel 2024 key features

CMX1100 Rebel 2024 Specifications ▲

Show specifications

Bore × Stroke (mm)	92mm x 81.5mm
Carburation	PGM-FI electronic fuel injection
Compression Ratio	10.1:1
Engine Displacement (cc)	1,084cc
Engine Type	SOHC liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and Uni-cam. EURO5 compliant
Max. Power Output	64kW/7,000rpm
Max. Torque	98Nm/4,750rpm
Starter	Electric
C02 Emissions (g/km)	114g/km
Oil Capacity (Litres)	4.8 litres

Brakes Front	Radial mounted monoblock four-piston brake caliper, 330mm floating single disc
Brakes Rear	Two Single piston caliper, 256mm single disc
Suspension Front	Preload adjustable 43mm cartridge style
Suspension Rear	Preload adjustable twin piggyback rear shock
Tyre Size Front	130/70B18 M/C
Tyre Size Rear	180/65B16 M/C
Wheels Front	Multi-spoke cast aluminium
Wheels Rear	Multi-spoke cast aluminium

Dimensions and Weights

Battery Capacity (VAh)	12V/11.2AH
Caster Angle	28°
Dimensions (L×W×H) (mm)	2240mm x 853mm x 1115mm
Frame type	Diamond Steel
Fuel Tank Capacity (Litres)	13.6L
Fuel Consumption	4.9L/100km
Ground Clearance (mm)	120mm
Kerb Weight (kg)	223Kg
Seat Height (mm)	700mm
Trail (mm)	110mm
Wheelbase (mm)	1,520mm
Turning Radius	2.9m

Clutch	Wet, multiplate clutch
Final Drive	Chain
Transmission Type	6-speed Manual Transmission

Instruments and Electrics

Headlights	LED
Instruments	Offset 120mm negative LCD instrument display
Tail Light	LED
USB Socket	USB-C
Cruise Control	Yes
Security	HISS
