Specifications and Price

Your bike in detail

Select a bike to display specification details.

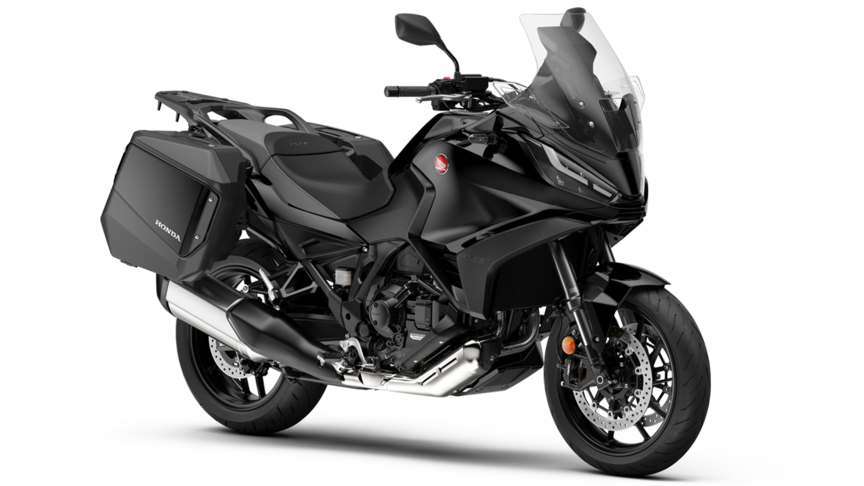

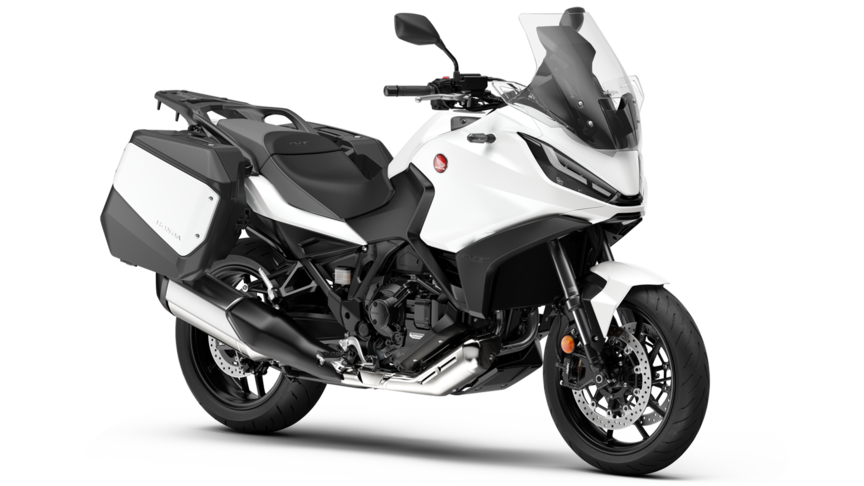

NT1100 2022

NT1100 2022


NT1100 2022 key features

NT1100 2022 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 92mm x 81.5mm
    Carburation PGM-FI electronic fuel injection
    Compression Ratio 10.1:1
    Engine Displacement (cc) 1,084cc
    Engine Type Liquid-cooled 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam
    Max. Power Output 75kW/7,500rpm
    Max. Torque 104Nm/6,250rpm
    Starter Electric
    C02 Emissions (g/km) 116 g/km
    Oil Capacity (Litres) 4.8
  • Wheels
    ABS System 2-channel
    Brakes Front Radial mounted four-piston brake caliper, 310mm floating double disc
    Brakes Rear Single piston caliper, 256mm single disc
    Suspension Front Showa 43mm SFF-BP type inverted telescopic fork with dial-style preload adjust, 150mm stroke.
    Suspension Rear Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster, 150mm travel.
    Tyres Front 120/70R17 M/C (58W)
    Tyres Rear 180/55R17 M/C (73W)
    Wheels Front Multi-spoke cast aluminium
    Wheels Rear Multi-spoke cast aluminium
  • Dimensions and Weights
    Battery Capacity (VAh) 12V/11.2AH
    Caster Angle 26.5°
    Dimensions (L×W×H) (mm) 2240mm x 865mm x 1360mm
    Frame type Semi-Double Cradle (Steel) and bolt-on aluminium subframe
    Fuel Tank Capacity (Litres) 20.4L
    Fuel Consumption 20 km/L (5 L/100km)
    Ground Clearance (mm) 175mm
    Kerb Weight (kg) 238Kg
    Seat Height (mm) 820mm
    Trail (mm) 108mm
    Wheelbase (mm) 1,535mm
  • Transmission
    Clutch Wet, multiplate clutch
    Final Drive Chain
    Gearbox 6-speed Manual Transmission
    Quick Shifter Optional Accessory
  • Instruments and Electrics
    Headlights LED with DRL
    12v Socket Yes
    Instruments 6.5inch TFT Touch Panel Multi informaiton display & secondary LCD meter
    Tail Light LED
    Daytime Running Lights Yes
    Connectivity Apple CarPlay & Android Auto
    USB Socket USB-A
    Self Cancelling Indicators Yes
    Cruise Control Yes
    Security HISS
