Specifications and Price

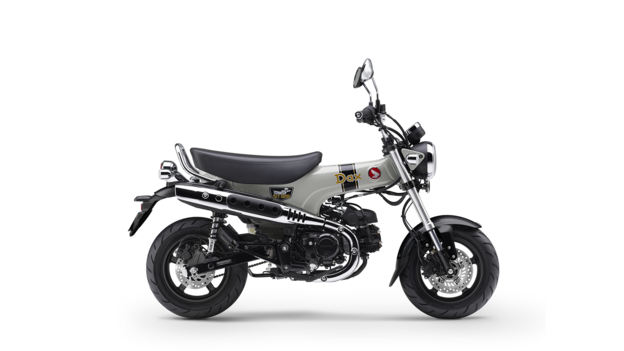

DAX 125 2026
£3,899
Change model
.png)
Pearl Horizon White
Specifications
DAX 125 2026
From
£3,899
Key Specs
- Clutch Type Wet Multiplate and Automatic Centrifugal Clutch
- Headlight / Taillight LED
- Seat Height (mm) 775 mm
- Instruments LCD
Engine
- Engine Displacement (cc) 124cc
- Compression Ratio (X:1) 10
- Max. Power Output (kW @ rpm) 6.9 kW / 7,000 rpm
- Max. Torque (Nm @ rpm) 10.8 Nm / 5,000 rpm
- Max. Speed (km/h) 90 km/h
- Oil Capacity (L) 1.0 L
- Bore × Stroke (mm) 50.0 x 63.1 mm
- Engine Type Air-cooled OHC 4-stroke 2-valve
- Starter Electric
Wheels
- Tyres Front 120/70-12M/C 51L
- Tyres Rear 130/70-12M/C 56L
- Brakes Front Single 220mm hydraulic disc with IMU-based ABS
- Brakes Rear Single 190mm hydraulic disc
- Wheels Front 5-spoke cast aluminium 12 X MT2.75
- Wheels Rear 5-spoke cast aluminium 12 X MT3.50
Dimensions and Weights
- Dimensions (L×W×H) (mm) 1,760 x 760 x 1,020 mm
Instruments and Electrics
- Instruments LCD
- Tail Light LED
Drivertrain
- Clutch Type Wet Multiplate and Automatic Centrifugal Clutch
- Transmission Type 4 speed rotary
- Final Drive Chain
Lighting
- Battery Capacity (V / Ah) 12V 3.7Ah
- Headlight / Taillight LED
Chassis
- Frame Type Press backbone frame
- Wheelbase (mm) 1,200 mm
- Seat Height (mm) 775 mm
- Ground Clearance (mm) 180 mm
- Caster Angle (degrees) 24.9°
- Trail (mm) 84 mm
- Turning radius (m) 2m
- Kerb Weight (kg) 107 kg
Fuel System
- Carburation PGM-FI electronic fuel injection
- Fuel Tank Capacity (L) 3.8 L
- CO2 Emissions WMTC (g / km) 35 g/km
- Fuel Consumption (L / 100 km) 1.5 L/100km
Suspension
- Suspension Front: Type Telescopic 31mm USD fork, 100mm axle travel
- Suspension Rear: Type Twin shock, 120mm axle travel
DAX 125 2025
From
£3,899
Key Specs
- Clutch Type Wet Multiplate and Automatic Centrifugal Clutch
- Headlight / Taillight LED
- Seat Height (mm) 775 mm
- Instruments LCD
Engine
- Engine Displacement (cc) 124cc
- Compression Ratio (X:1) 10
- Max. Power Output (kW @ rpm) 6.9 kW / 7,000 rpm
- Max. Torque (Nm @ rpm) 10.8 Nm / 5,000 rpm
- Max. Speed (km/h) 90 km/h
- Oil Capacity (L) 1.0 L
- Bore × Stroke (mm) 50.0 x 63.1 mm
- Engine Type Air-cooled OHC 4-stroke 2-valve
- Starter Electric
Wheels
- Tyres Front 120/70-12M/C 51L
- Tyres Rear 130/70-12M/C 56L
- Brakes Front Single 220mm hydraulic disc with IMU-based ABS
- Brakes Rear Single 190mm hydraulic disc
- Wheels Front 5-spoke cast aluminium 12 X MT2.75
- Wheels Rear 5-spoke cast aluminium 12 X MT3.50
Dimensions and Weights
- Dimensions (L×W×H) (mm) 1,760 x 760 x 1,020 mm
Instruments and Electrics
- Instruments LCD
- Tail Light LED
Drivertrain
- Clutch Type Wet Multiplate and Automatic Centrifugal Clutch
- Transmission Type 4 speed rotary
- Final Drive Chain
Lighting
- Battery Capacity (V / Ah) 12V 3.7Ah
- Headlight / Taillight LED
Chassis
- Frame Type Press backbone frame
- Wheelbase (mm) 1,200 mm
- Seat Height (mm) 775 mm
- Ground Clearance (mm) 180 mm
- Caster Angle (degrees) 24.9°
- Trail (mm) 84 mm
- Turning radius (m) 2m
- Kerb Weight (kg) 107 kg
Fuel System
- Carburation PGM-FI electronic fuel injection
- Fuel Tank Capacity (L) 3.8 L
- CO2 Emissions WMTC (g / km) 35 g/km
- Fuel Consumption (L / 100 km) 1.5 L/100km
Suspension
- Suspension Front: Type Telescopic 31mm USD fork, 100mm axle travel
- Suspension Rear: Type Twin shock, 120mm axle travel
