PCX125

PCX125

Specifications & Price

Your bike in detail

PCX125 2018

: £2 929

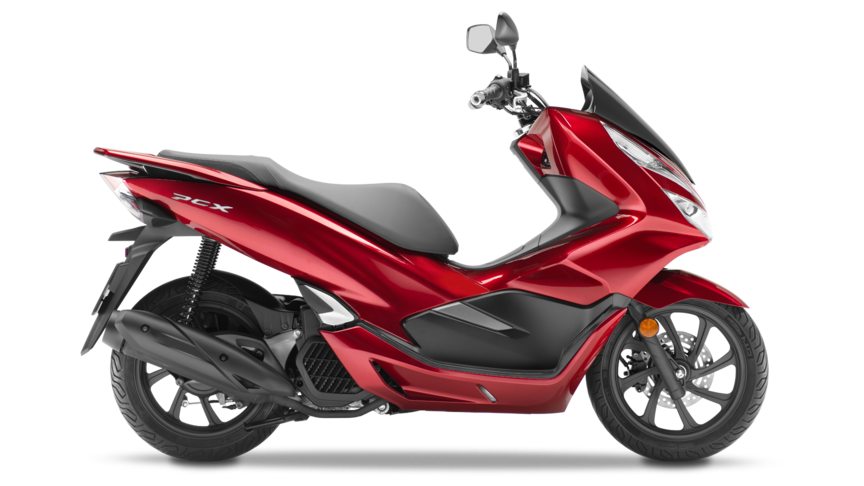

Pearl Splendor Red

Choose colour (4)

PCX125 2019 key features

PCX125 2019 Specifications ▲

Show specifications

Bore × Stroke (mm)	52.4 x 57.9mm
Carburation	PGM-FI electronic fuel injection
Compression Ratio	0.459027777777778
Engine Displacement (cc)	125cc
Engine Type (cm³)	Single-cylinder, liquid cooled, SOHC 4-stroke 2-valve
Max. Power Output	9.0kW @ 8,500rpm
Max. Torque	11.8Nm @ 5,000rpm
C02 Emissions (g/km)	48
Oil Capacity (Litres)	0.9 litres

Brakes Front	220mm hydraulic disc with combined 2 piston caliper with ABS
Brakes Rear	130mm drum
Suspension Front	31mm telescopic fork, 89mm axle travel
Suspension Rear	Twin suspension aluminium swingarm, 84mm axle travel
Tyre Size Front	100/80-14M/C (48P)
Tyre Size Rear	120/70-14M/C (61P)
Wheels Front	14M/C x MT2.15, 8-spoke cast aluminium
Wheels Rear	14M/C x MT3.50, 8-spoke cast aluminium

Dimensions and Weights

Battery Capacity (VAh)	12V/7AH (10H)
Caster Angle	27°
Dimensions (L×W×H) (mm)	1,923 x 745 x 1,107mm
Frame type	Tubular steel duplex
Fuel Tank Capacity (Litres)	8.0 litres
Fuel Consumption	47.6km/litre (without Idling Stop) (WMTC mode)
Ground Clearance (mm)	137mm
Kerb Weight (kg)	130kg
Seat Height (mm)	764mm
Trail (mm)	86mm
Wheelbase (mm)	1,313mm

Clutch	Automatic, centrifugal, dry type
Final Drive	10.65
Transmission Type	V-Matic

Instruments and Electrics

Headlights	LED
Tail Light	LED
