Honda CR-V specifications,
dimensions and grades

Learn more about the new Honda CR-V Hybrid SUV specifications, including boot size, safety features, weight capacity, engine and emissions. You will also find detailed information about the interior features and materials as well as multimedia capabilities.

View Full Specification

Key Features

Premium SUV icon
Premium large SUV
Comfortably seats 5 and offers up to generous 1710 litres* of boot capacity.

*VDA method – load to roof
Plug icon
Fast charging
Fully charged in just 2.5 hours!* Full hybrid fuel efficiency of up to 4.8l/100km.* Plug-in ultra-low weighted CO2 emissions from 19g/km.*

*WLTP data
battery icon
Practical range
Full hybrid driving range of up to 596 miles* on a full tank. Plug-in pure electric driving range of up to 50 miles.

*WLTP data

Honda CR-V Dimensions

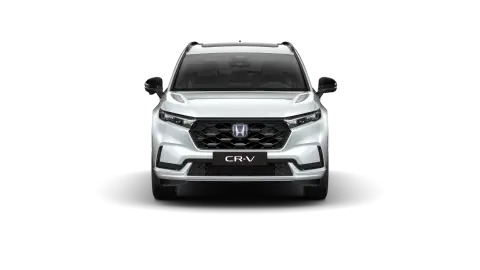

Front facing Honda CR-V Hybrid

Width: 1866 mm

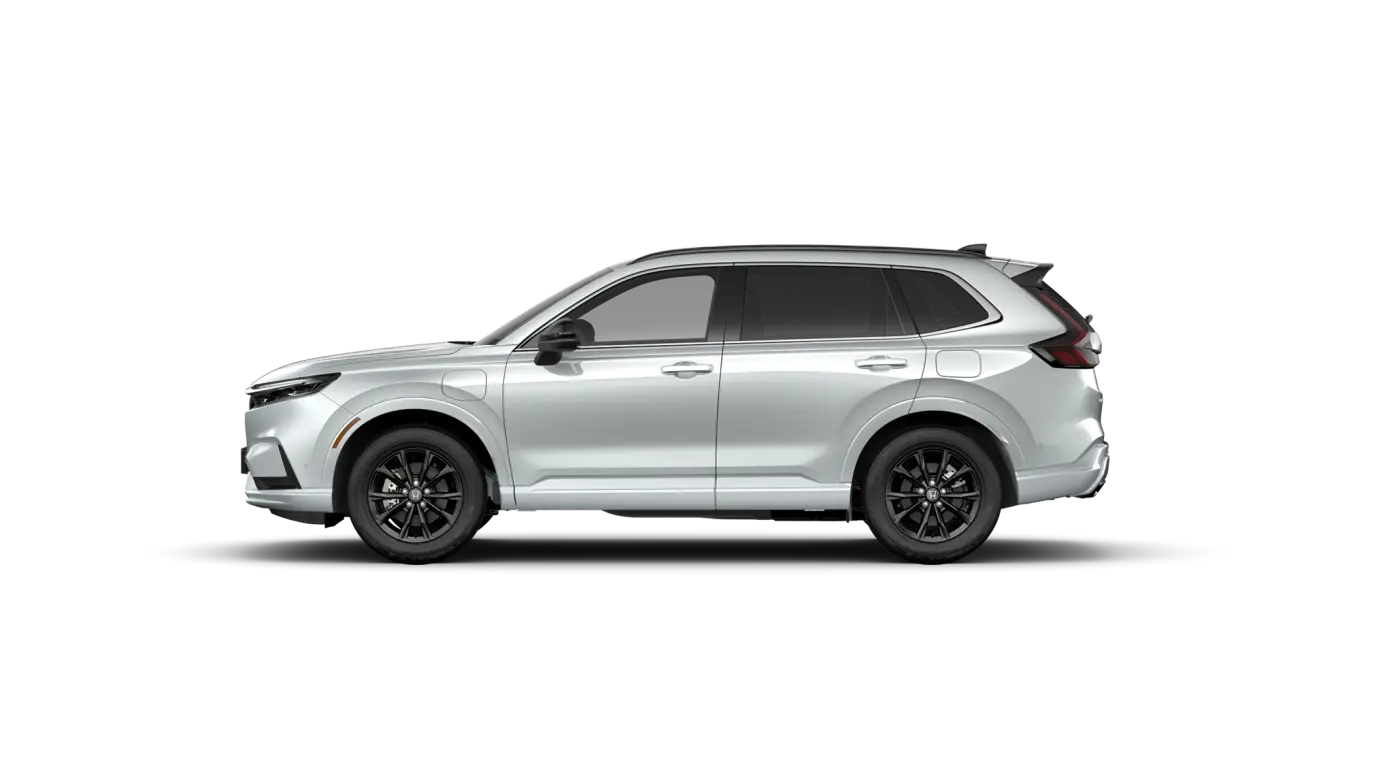

Side facing Honda CR-V Hybrid

Length: 4706 mm

Height: 1673 mm

*Car shown is a Honda CR-V 2.0 i-MMD Plug-in Hybrid Advance Tech in Diamond Dust Pearl

CR-V Hybrid SUV Specifications

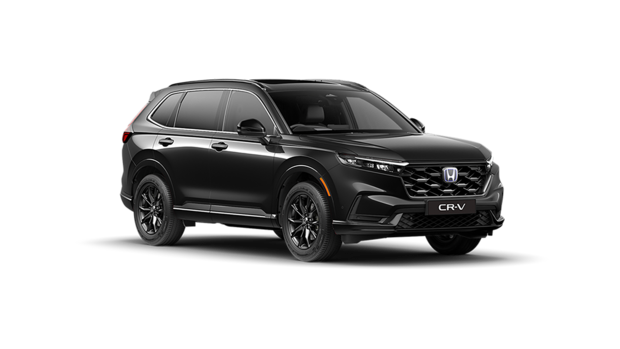

Elegance Tech 2WD PHEV

i-MMD Automatic PHEV

£47,795.00

Configure your Elegance Tech 2WD PHEV

  • Honda SENSING 360
  • LED Lights
  • Power tailgate
  • Panoramic Glass Roof
  • Front and Rear Parking Sensors
  • Rear-view camera
  • Multi View Camera
  • Honda Parking Pilot
  • Honda CONNECT
  • Keyless Entry and Start
  • Digital Driver's Display
  • Wireless Charger
  • Heated leather steering wheel
  • My Honda+
  • Drive modes
  • TOW Mode
  • EV Mode

  • Traction

    2WD

  • Engine Type

    e:HEV 2.0L

  • Displacement (cc)

    1993 cc

  • Bore x Stroke (mm)

    81.0 x 96.7 mm

  • Compression Ratio

    13.9

  • Valve Train

    4 Valves

  • Emission Standard

    Euro-Euro6d

  • General Safety Regulation (GSR)

    GSR II Wave 3

  • Fuel Required

    Unleaded (95)

  • EV Battery Capacity (kWh)

    17.7

  • Battery - Chemistry

    Lithium Ion

  • Battery - Number of Cells

    96

  • Battery - Nominal Voltage

    347.5V

  • Battery - Thermal Management

    Active heating & cooling

  • On Board Charger Capacity

    6.8kW

  • Phase

    1 phase

  • Charging Port Type

    Type 2

  • AC Charge 0-100% (6.8kW Max)

    2.5 hours (Appr)

  • Charging information (domestic home socket charge 2.3kW) hours

    7.7 hours (Appr)

  • Engine Maximum Power (kW at rpm)

    106 @ 5900 kW at rpm

  • Engine Maximum Power (ps at rpm)

    144 @ 5900 ps at rpm

  • Engine Maximum Torque (Nm at rpm)

    189 @ 4500 Nm at rpm

  • Electric Motor Max Power (kW)

    135 kW

  • Electric Motor Max Power (ps)

    184 ps

  • Electric Motor Max Torque (Nm)

    335 Nm

  • 0 → 62 mph (seconds)

    9 seconds

  • Max Speed (mph)

    121 mph

  • Sound level: Drive-by (dB)

    62 dB

  • Combined - weighted CO2 [g/km]

    18 g/km

  • Combined - weighted FC [l/100km]

    0.8 l/100 km

  • Combined - EAER[km]-Equivalent All Electric Range

    50 miles

  • Combined - weighted EC [kWh/100km] Electric consumption

    15.5 kWh/100km

  • Length (mm)

    4706 mm

  • Width (mm)

    1866 mm

  • Overall Width (mm) with Door Mirror Folded

    1942.1 mm

  • Width including Door Mirror (mm)

    2152.6 mm

  • Overall Height

    1673 mm

  • Wheelbase (mm)

    2701 mm

  • Track Front (mm)

    1612 mm

  • Track Rear (mm)

    1640 mm

  • Ground Clearance - Non load (mm)

    153 mm

  • Ground Clearance - with Full Load (mm)

    120.1 mm

  • Turning Circle - at Body (kerb to kerb)

    11.4 mm

  • Turning Radius - at Wheel Centre (m)

    5.5 m

  • Steering Wheel Lock to Lock (wheel turns)

    2.4

  • Fuel Tank

    46.5 litres

  • Seating Capacity

    5 persons

  • Boot Capacity - Rear Seat up (VDA method)

    617 litres

  • Boot Capacity - Rear Seat Down Load to window (VDA method)

    1100 litres

  • Boot Capacity - Rear Seat Down Load to Roof (VDA method)

    1710 litres

  • Kerb Weight

    1921 kg

  • Max. Permissible Weight

    2430 kg

  • Payload

    509 kg

  • Max. Permissible Axle Weight - Front/Rear

    1320 / 1210 kg

  • Max. Towing Weight (braked)

    1500 kg

  • Max. Towing Weight (unbraked)

    600 kg

  • Max Trailer Nose Weight

    100 kg

  • Max. Roof Load

    82.6 kg

  • ABS (Anti-Lock Braking System)
  • Front Airbags - Center, Driver SRS Airbag (Single Stage inflation), Passenger (r SRS Airbag with Cut Off Switch), Driver & Passenger Knee, Side and Side Curtain
  • Rear Airbags - Side and Side Curtain
  • Blind Spot Information incl. Cross Traffic Monitor
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control (FR/RR)
  • Deflation Warning System (DWS, Direct & Indirect TMPS
  • eCall (Europe)+
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Adjustable Speed limiter
  • Intelligent Speed limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keeping Assist System
  • Low Speed Brake System
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Jam Assist
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Trailer Stability Assist (TSA)
  • Whiplash Lessening Front Headrests
  • Front Cross Traffic Warning
  • Active Lane Change Assist
  • Lane Change Collision Mitigation
  • Lane Watch
  • Driver Attention Monitor
  • Driver Monitoring Camera (DMC)

  • Immobiliser System
  • Remote Central Locking with 2 Key Fobs
  • Security Alarm System
  • Selectable Door Unlock
  • Smart Entry & Start
  • Parcel Shelf
  • Tilt Sensor

  • Layered Honeycomb Metal Film Interior Panels
  • Sport Pedals
  • Platinum Chrome Plated Interior Door Handles
  • Leather Steering wheel
  • Full Leather upholstery (sides/headrest are synthethic leather)
  • Dark Coloured Roof Lining

  • Adaptive Performance Damper
  • Agile Handle Assist (AHA)
  • Drive Modes: EV, ECON, SPORT, NORMAL, SNOW & TOW
  • Electric Parking Brake with Automatic Brake Hold
  • Electric Power Steering (EPS)
  • Hill Start Assist (HSA)
  • Hill Descent Control
  • 10.2" Multi Info Display
  • Regenerative Braking/Deceleration Control Paddle
  • Power Meter

  • Front & Trunk Accessory Socket
  • Dual Zone Climate Control
  • Rear Air Conditioning Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo net hook
  • Adaptive Cruise Control with Cornering speed assist
  • Electrically Adjustable & Folding Mirrors
  • Heated Door Mirrors
  • Exterior Mirror Tilt for Reverse
  • Multi-View Camera
  • Electric Windows Front & Rear
  • Driver Seat electrical adjustment (8-way)
  • Front Passenger seat electrical adjustment (4-way) No height adjustment
  • Driver Seat Lumbar Support (4-way)
  • Heated Front Seats
  • Reclining Rear Seats
  • Heated Steering Wheel
  • Luggage Floor Box
  • Mirros and Windows Key Fob Operation
  • Parking Sensors (Front 4: Rear 4: Side 4)
  • Handsfree Power Tailgate with kick sensor & Walk Away Close
  • Rear Bench Split 60/40
  • Rear Seat Centre Armrest
  • Sunglasses Box With Mirror
  • Sun Visor Vanity Mirrors
  • Tilt and Telescopic Steering Wheel

  • Ambient Light (Driver & Passenger Footwell both front and rear, Door handle, Door line Front & Rear and Front Cup holder, Roof)
  • Courtesy Light
  • Meter llumination
  • Map Light (Front)
  • Rear reading light
  • Sun Visor Vanity Mirror Illumination
  • Boot Light

  • Bluetooth Hands Free Telephone (HFT)
  • 9" touchscreen Honda CONNECT with Navigation, AM/FM/DAB radio, Apple CarPlay® and Android Auto™, & live traffic info. And My Honda+
  • BOSE Premium Audio 12 Speakers System including Front Tweeter and Centre speaker and Subwoofer
  • Remote Audio Controls in Steering Wheel
  • 2 Front USBs, Type A & Type C for charging
  • 2 Rear USBs, Type Cs for charging
  • Wireless Charger

  • Body Colour Shark Fin Antenna
  • Body Colour Exterior Door Handles
  • Panoramic Glass Roof
  • Privacy Glass
  • Roof Rails
  • Exclusive Styling: Lower Bumper (Front & Rear) and Fender garnish in body colour, High Gloss Black Window Garnish, Platinum Chrome & Black Grille, Body Paint & Black Spoiler

  • High Beam Support System
  • LED Daytime Running Light
  • Headlight Auto On/Off Timer
  • LED Headlights
  • LED Front Sequential Turn Lights
  • Rear LED Lights

  • 18" Berlina Black Alloy Wheels
  • Tyres 235/60
  • Tyre Repair Kit

Advance Tech 2WD PHEV

i-MMD Automatic PHEV

£50,675.00

Configure your Advance Tech 2WD PHEV

  • Honda SENSING 360
  • LED Lights
  • Power tailgate
  • Panoramic Glass Roof
  • Front and Rear Parking Sensors
  • Rear-view camera
  • Adaptive Driving Beam
  • Multi View Camera
  • Honda Parking Pilot
  • Honda CONNECT
  • Keyless Entry and Start
  • Digital Driver's Display
  • Wireless Charger
  • Heated leather steering wheel
  • Drivers Seat Power Adjustment with Memory
  • Head Up Display
  • My Honda+
  • Heated Rear Seats
  • Drive modes
  • TOW Mode
  • EV Mode

  • Traction

    2WD

  • Engine Type

    e:HEV 2.0L

  • Displacement (cc)

    1993 cc

  • Bore x Stroke (mm)

    81.0 x 96.7 mm

  • Compression Ratio

    13.9

  • Valve Train

    4 Valves

  • Emission Standard

    Euro-Euro6d

  • General Safety Regulation (GSR)

    GSR II Wave 3

  • Fuel Required

    Unleaded (95)

  • EV Battery Capacity (kWh)

    17.7

  • Battery - Chemistry

    Lithium Ion

  • Battery - Number of Cells

    96

  • Battery - Nominal Voltage

    347.5V

  • Battery - Thermal Management

    Active heating & cooling

  • On Board Charger Capacity

    6.8kW

  • Phase

    1 phase

  • Charging Port Type

    Type 2

  • AC Charge 0-100% (6.8kW Max)

    2.5 hours (Appr)

  • Charging information (domestic home socket charge 2.3kW) hours

    7.7 hours (Appr)

  • Engine Maximum Power (kW at rpm)

    106 @ 5900 kW at rpm

  • Engine Maximum Power (ps at rpm)

    144 @ 5900 ps at rpm

  • Engine Maximum Torque (Nm at rpm)

    189 @ 4500 Nm at rpm

  • Electric Motor Max Power (kW)

    135 kW

  • Electric Motor Max Power (ps)

    184 ps

  • Electric Motor Max Torque (Nm)

    335 Nm

  • 0 → 62 mph (seconds)

    9.1 seconds

  • Max Speed (mph)

    121 mph

  • Sound level: Drive-by (dB)

    62 dB

  • Combined - weighted CO2 [g/km]

    19 g/km

  • Combined - weighted FC [l/100km]

    0.8 l/100 km

  • Combined - EAER[km]-Equivalent All Electric Range

    50 miles

  • Combined - weighted EC [kWh/100km] Electric consumption

    15.8 kWh/100km

  • Length (mm)

    4706 mm

  • Width (mm)

    1866 mm

  • Overall Width (mm) with Door Mirror Folded

    1942.1 mm

  • Width including Door Mirror (mm)

    2152.6 mm

  • Overall Height

    1673 mm

  • Wheelbase (mm)

    2701 mm

  • Track Front (mm)

    1612 mm

  • Track Rear (mm)

    1640 mm

  • Ground Clearance - Non load (mm)

    153 mm

  • Ground Clearance - with Full Load (mm)

    121.8 mm

  • Turning Circle - at Body (kerb to kerb)

    11.4 mm

  • Turning Radius - at Wheel Centre (m)

    5.5 m

  • Steering Wheel Lock to Lock (wheel turns)

    2.4

  • Fuel Tank

    46.5 litres

  • Seating Capacity

    5 persons

  • Boot Capacity - Rear Seat up (VDA method)

    617 litres

  • Boot Capacity - Rear Seat Down Load to window (VDA method)

    1100 litres

  • Boot Capacity - Rear Seat Down Load to Roof (VDA method)

    1710 litres

  • Kerb Weight

    1935 kg

  • Max. Permissible Weight

    2430 kg

  • Payload

    495 kg

  • Max. Permissible Axle Weight - Front/Rear

    1320 / 1210 kg

  • Max. Towing Weight (braked)

    1500 kg

  • Max. Towing Weight (unbraked)

    600 kg

  • Max Trailer Nose Weight

    100 kg

  • Max. Roof Load

    82.6 kg

  • ABS (Anti-Lock Braking System)
  • Front Airbags - Center, Driver SRS Airbag (Single Stage inflation), Passenger (r SRS Airbag with Cut Off Switch), Driver & Passenger Knee, Side and Side Curtain
  • Rear Airbags - Side and Side Curtain
  • Blind Spot Information incl. Cross Traffic Monitor
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control (FR/RR)
  • Deflation Warning System (DWS, Direct & Indirect TMPS
  • eCall (Europe)+
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Adjustable Speed limiter
  • Intelligent Speed limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keeping Assist System
  • Low Speed Brake System
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Jam Assist
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Trailer Stability Assist (TSA)
  • Whiplash Lessening Front Headrests
  • Front Cross Traffic Warning
  • Active Lane Change Assist
  • Lane Change Collision Mitigation
  • Lane Watch
  • Driver Attention Monitor
  • Driver Monitoring Camera (DMC)

  • Immobiliser System
  • Remote Central Locking with 2 Key Fobs
  • Security Alarm System
  • Selectable Door Unlock
  • Smart Entry & Start
  • Parcel Shelf
  • Tilt Sensor

  • Layered Honeycomb Metal Film Interior Panels
  • Sport Pedals
  • Platinum Chrome Plated Interior Door Handles
  • Leather Steering wheel
  • Full Leather upholstery (sides/headrest are synthethic leather)
  • Light Coloured Roof Lining
  • Dark Coloured Roof Lining

  • Adaptive Performance Damper
  • Agile Handle Assist (AHA)
  • Drive Modes: EV, ECON, SPORT, NORMAL, SNOW & TOW
  • Electric Parking Brake with Automatic Brake Hold
  • Electric Power Steering (EPS)
  • Hill Start Assist (HSA)
  • Hill Descent Control
  • Head Up Display
  • 10.2" Multi Info Display
  • Regenerative Braking/Deceleration Control Paddle
  • Power Meter

  • Front & Trunk Accessory Socket
  • Dual Zone Climate Control
  • Rear Air Conditioning Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo net hook
  • Adaptive Cruise Control with Cornering speed assist
  • Electrically Adjustable & Folding Mirrors
  • Heated Door Mirrors
  • Exterior Mirror Tilt for Reverse
  • Multi-View Camera
  • Electric Windows Front & Rear
  • Driver Seat electrical adjustment with memory
  • Front Passenger seat electrical adjustment (4-way) No height adjustment
  • Driver Seat Lumbar Support (4-way)
  • Heated Front Seats
  • Ventilated Front Seats
  • Heated Rear Seats
  • Reclining Rear Seats
  • Heated Steering Wheel
  • Luggage Floor Box
  • Mirros and Windows Key Fob Operation
  • Parking Sensors (Front 4: Rear 4: Side 4)
  • Handsfree Power Tailgate with kick sensor & Walk Away Close
  • Rear Bench Split 60/40
  • Rear Seat Centre Armrest
  • Sunglasses Box With Mirror
  • Sun Visor Vanity Mirrors
  • Tilt and Telescopic Steering Wheel

  • Ambient Light (Driver & Passenger Footwell both front and rear, Door handle, Door line Front & Rear and Front Cup holder, Roof)
  • Courtesy Light
  • Meter llumination
  • Map Light (Front)
  • Rear reading light
  • Sun Visor Vanity Mirror Illumination
  • Boot Light

  • Bluetooth Hands Free Telephone (HFT)
  • 9" touchscreen Honda CONNECT with Navigation, AM/FM/DAB radio, Apple CarPlay® and Android Auto™, & live traffic info. And My Honda+
  • BOSE Premium Audio 12 Speakers System including Front Tweeter and Centre speaker and Subwoofer
  • Remote Audio Controls in Steering Wheel
  • 2 Front USBs, Type A & Type C for charging
  • 2 Rear USBs, Type Cs for charging
  • Wireless Charger

  • Body Colour Shark Fin Antenna
  • Body Colour Exterior Door Handles
  • Panoramic Glass Roof
  • Privacy Glass
  • Roof Rails
  • Exclusive Styling: Lower Bumper (Front & Rear) and Fender garnish in body colour, High Gloss Black Window Garnish, Platinum Chrome & Black Grille, Body Paint & Black Spoiler

  • Active Cornering Lights
  • Adaptive Driving Beam
  • High Beam Support System
  • Auto Headlights Adjuster
  • LED Daytime Running Light
  • Headlight Auto On/Off Timer
  • LED Headlights
  • LED Front Sequential Turn Lights
  • Rear LED Lights

  • 19" Black Alloy Wheels
  • Tyres 235/55
  • Tyre Repair Kit

For details on tyres labelling please refer to the link [here].

What does this mean? More info [here].

+eCall functionality is subject to 2G/3G network availability.

Car shown is a Honda CR-V 2.0 i-MMD Full Hybrid Advance in Canyon River Blue Metallic – Economy & Emissions figures: (WLTP*) Range 4.8-8.1 (l/100km), CO2 110-183 (g/km).

Car shown is a Honda CR-V 2.0 i-MMD Plug-in Hybrid Advance Tech in Diamond Dust Pearl – Economy & Emissions figures: (WLTP**) weighted combined 0.8 (l/100km), CO2 weighted 18.0 (g/km). Electric energy consumption weighted combined: 15.5 kWh/100 km. Figures, sourced from EU regulated laboratory test results, are provided for comparison purposes and may not reflect real-life driving experiences.

*Indicative charge times shown, for comparison purposes. CR-V PHEV on board charger is single phase and has a max charging capacity of 6.8kW. A charge from a 0 - 100% can be achieved in approximately 2.5 hours with a min. 6.8kW(32A) AC charger and 7.7 hours using a 2.3kW(10A) home charging, in optimal conditions such as a temperature around 25°C. Actual charging times may vary depending on various factors: including the age, type, charging capacity, condition and temperature of the charging unit and the battery, max charging rate of the vehicle and the charge point, the starting charge and environmental conditions such as the outdoor temperature at the point of use and the current and voltage available at the charging point. Charge times may be longer in colder weather and if battery temperature activates safeguarding technology. You can only charge a vehicle’s battery at the maximum charge rate the vehicle can accept. The time it takes to charge will also be limited by the max charging rate of the charge point you are using.
