Honda ZR-V Hybrid 2023 Specs, Dimensions & Interior

Honda ZR-V e:HEV specifications,
dimensions and grades

Learn more about the new Honda ZR-V Full Hybrid sporty SUV's specifications, including boot size, safety features, weight capacity, engine and emissions. You will also find detailed information about the interior features and materials as well as multimedia capabilities.

View Full Specification

Key Features

Spacious and versatile

Comfortably seats 5 and offers up to 1,322 litres* of boot capacity.

*VDA method – load to roof

Power output

e:HEV full hybrid technology delivering 184ps.

Practical range

Real world range of 621 miles.

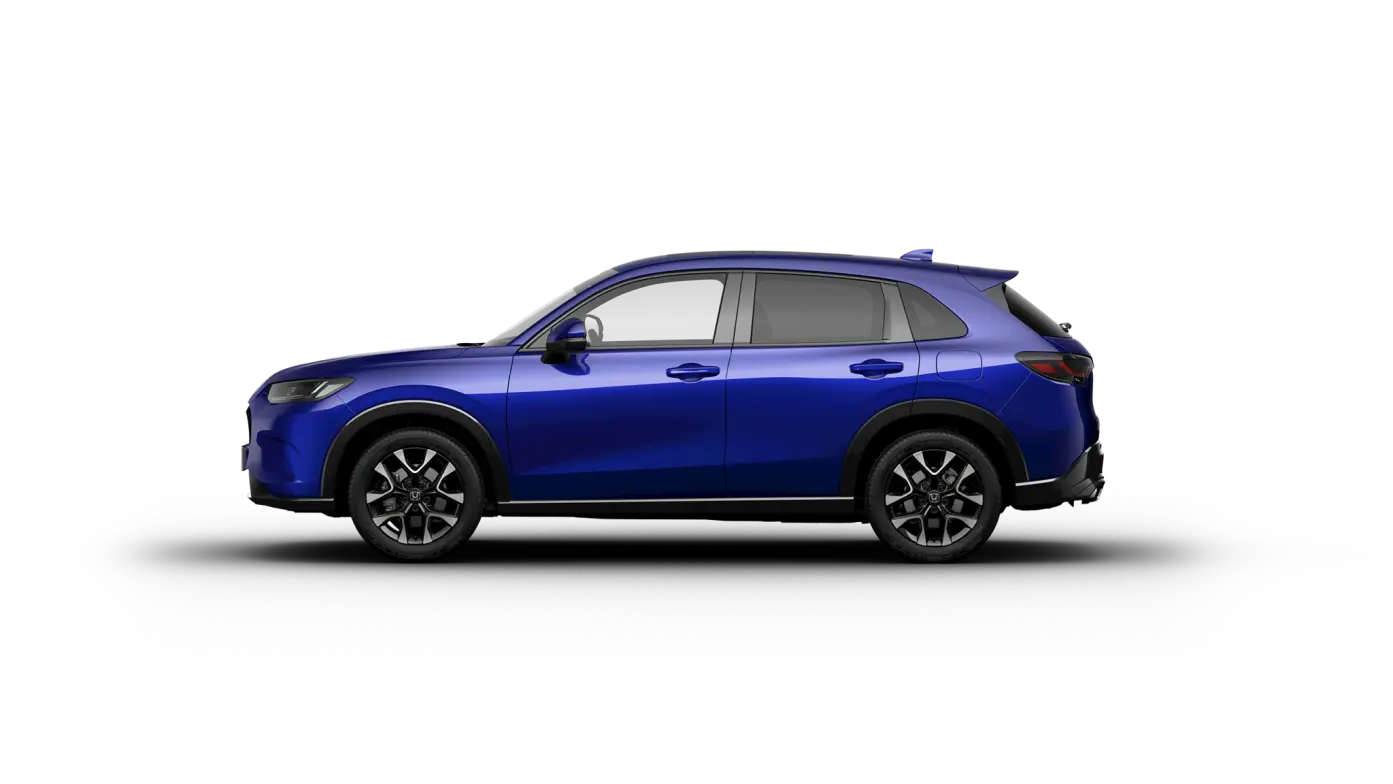

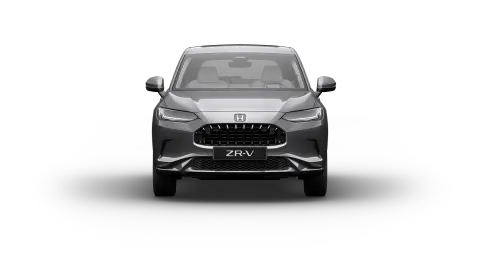

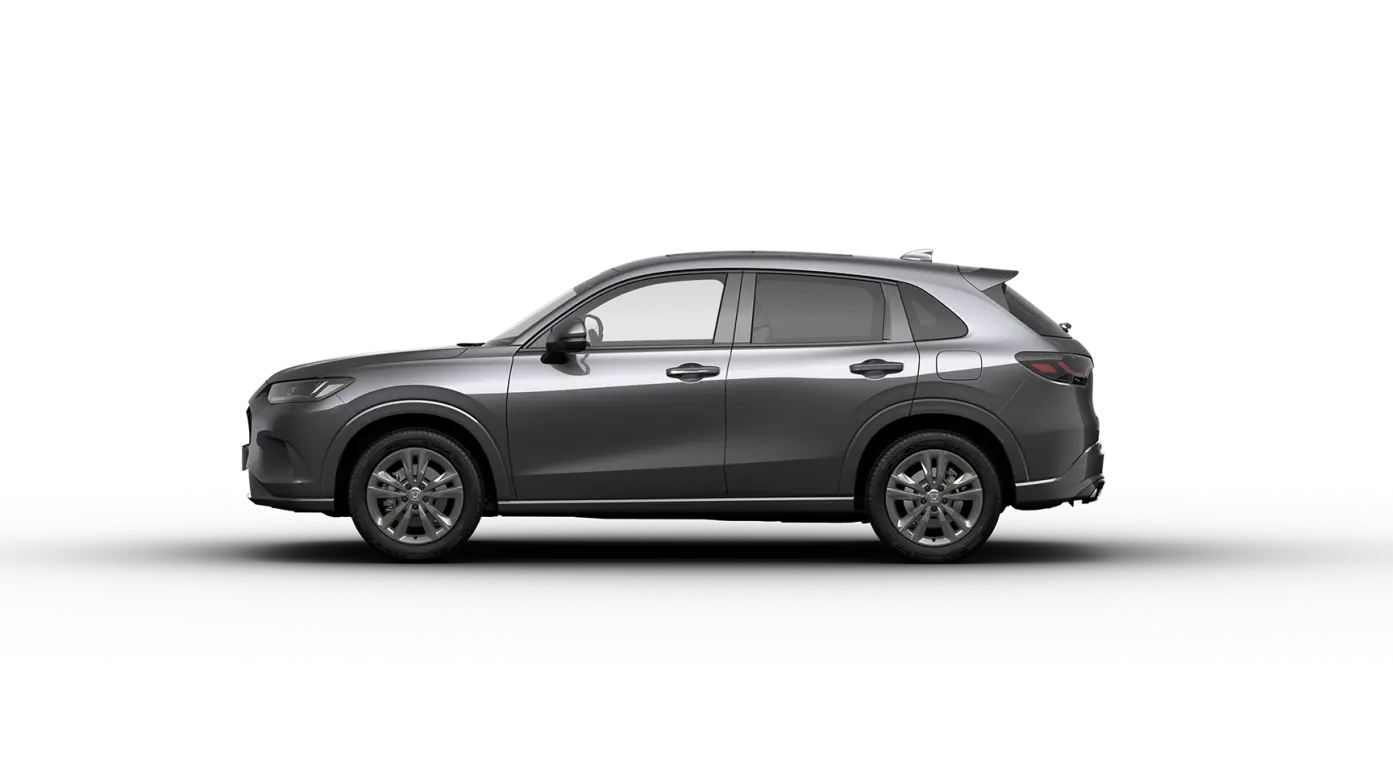

Honda ZR-V Dimensions

Width: 1840 mm

Length: 4568 mm

Height: 1620 mm

Unladen

Full ZR-V hybrid SUV Specifications

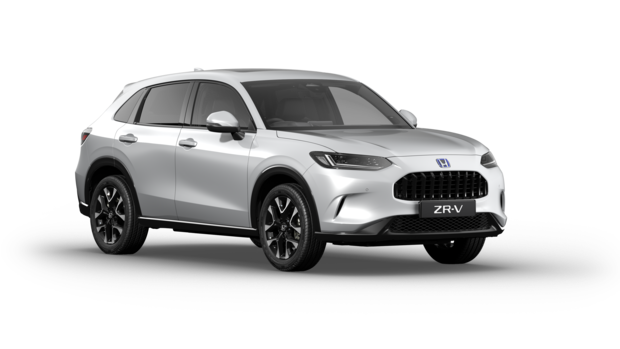

Elegance

i-MMD Automatic

£39,505.00

Key Features

Honda SENSING
Front and Rear Parking sensors
18" Alloys
Rear-view camera
Honda CONNECT with Navigation
Keyless Entry and Start
Digital Driver's Display
Adaptive Cruise Control
Heated Front Seats
LED Lights
Wireless Apple CarPlay

Engine

Engine Type

i-MMD
Engine Name

Intelligent Multi Mode Drive
Displacement (cc)

1993 cc
Bore X Stroke (mm)

81.0x96.7 mm
Compression Ratio

13.9±0.26
Valve Train

Chain Drive DOHC DUAL VTC 4 valves per CYL
Emission Standard

Euro6d final
Fuel Required

Unleaded (95)
EV Battery Capacity (kWh)

kWh
Battery - Number of Cells
Battery - Weight (kg)

kg

Performance

Engine Maximum Power (kW at rpm)

105@6000 kW at rpm
Engine Maximum Power ( ps at rpm)

143@6000 ps at rpm
Engine Maximum Torque (NM at rpm)

186@4500 Nm at rpm
Electric Motor Max Power(kW [PS])

135 [184] kW (ps)
Electric Motor Max Torque (Nm)

315 Nm
0 → 62 mp/h (s)

7.8 seconds
Max Speed (km/h)

173 km/h
Sound level: Drive-by (dB)

67 dB

Fuel economy and emissions (WLTP)

Low - CO2 g/km

108 g/km
Medium - CO2 g/km

102 g/km
High - CO2 g/km

119 g/km
Extra High - CO2 g/km

164 g/km
Combined - CO2 g/km

130 g/km
Low - FC (mpg)

58.9 mpg
Medium - FC (mpg)

62.8 mpg
High - FC (mpg)

54.3 mpg
Extra High - FC (mpg)

39.2 mpg
Combined - FC (mpg)

49.6 mpg
Carbon Monoxide CO

144.3 mg/km
Total Hydro Carbon HC

14.3 mg/km
Non-Methane Hydro Carbon NMHC

11.6 mg/km
Nitrogen Oxides NOx

9.7 mg/km
Particulates (mg/km)

0.08

Dimensions

Length (mm)

4568 mm
Width (mm)

1840 mm
Overall Width (mm) with Door Mirror Folded

1898
Height - Unladen (mm)

1613@MRO / 1620(unladen) mm
Wheelbase (mm)

2657 mm
Track Front (mm)

1595 mm
Track Rear (mm)

1615 mm
Ground Clearance - with Driver (mm)

180@MRO mm
Ground Clearance - with Full Load (mm)

129.93@MPW mm
Turning Circle - at Body (m)

11.3 (outside tyre) curb to curb m
Turning Radius - at Wheel Centre (m)

5.5 m
Steering Wheel Lock to Lock (wheel turns)

2.4 wheel turns

Capacity

Fuel Tank (litres)

57 litres, VDA method
Seating Capacity (persons)

5 persons
Boot Capacity - Rear Seat up (litres, VDA method)

380 litres, VDA method
Boot Capacity - Rear Seat up (litres, VDA method) incl sub trunk/luggage floor box

390 litres, VDA method
Boot Capacity - Rear Seat Down Load to Roof (litres, VDA method)

1312 litres, VDA method
Trunk Capacity - Rear Seat Down Load to Roof (litres, VDA method) incl sub trunk/luggage floor box

1322 litres, VDA method
Boot Capacity - Rear Seat Down Load to Window (litres, VDA method)

876 litres, VDA method
Trunk Capacity - Rear Seat Down Load to Window (litres, VDA method) incl sub trunk/luggage floor box

886 litres, VDA method

Weight

Kerb Weight

1589 kg
Max. Permissible Weight

2100 kg
Payload

511 kg
Max. Permissible Axle Weight - Front/Rear (kg)

Fr:1120 Rr:1030 kg
Max. Towing Weight (kg) braked

750 kg
Max. Towing Weight (kg) unbraked

700 kg
Max Trailer Nose Weight (kg)

75 kg
Max. Roof Load (kg)

65 kg

Transmission

Transmission Type

Automatic

Interior Trim

Soft Pad Leather (Synthetic) with silver painted ornament Panels
Platinum Chrome Plated Interior Door Handles
Normal Pedals
Steering Wheel - Smooth Leather
Fabric Upholstery
Front Console & Instrument Panel Garnish
Door Lining Stich Styling

Safety

ABS (Anti-Lock Braking System)
Airbags - Front Center
Airbags - Front Driver & Passenger
Airbags - Knee (DS)
Airbags - Knee (AS)
Airbags - Passenger SRS Airbag with Cut Off Switch
Airbags - Rear Side
Airbags - Side (Front)
Airbags - Side Curtain (Front and Rear)
Brake Assist (BA)
Collision Mitigation Braking System
Collision Mitigation Throttle Control (RR&FR)
Deflation Warning System (DWS)
Driver SRS Airbag (Single Stage inflation)
eCall (Europe)+
Electronic Brakeforce Distribution (EBD)
Emergency Stop Signal
Forward Collision Warning
Adjustable Speed limiter
Intelligent Speed limiter
ISO Fix Points / I-SIZE
Lane Departure Warning
Lane Keeping Assist System
Low Speed Braking Sytem
Low Speed Following
Road Departure Mitigation
Traffic Jam Assist
Traffic Sign Recognition System (TSA)
Vehicle Stability Assist (VSA)
Whiplash Lessening Front Headrests

Security

Immobiliser System
Remote Central Locking with 2 Key Fobs
Security Alarm System
Selectable Door Unlock
Smart Entry & Start
Tonneau Cover
Ultrasonic Sensor

Function and technology

Agile Handle Assist (AHA)
Drive Mode - ECON/ NORMAL/ SNOW/ SPORT
Electric Parking Brake with Automatic Brake Hold
Brake Hold
Electric Power Steering (EPS)
Hill Start Assist (HSA)
Hill Descent Control
Idle Stop / HEV Mode
Power Meter
Regenerative Braking/Deceleration Control (Paddle)
10.2" Full Digital Display
Metal Paddle Shift

Comfort and convenience

Front Accessory Socket
Air Conditioning - Dual Zone Climate
Air Conditioning - Rear Vent
Auto Dimming Rear View Mirror
Auto Wipers
4 Cargo Net Hooks
Adaptive Cruise Control
Door Mirrors - Electrically Adjustable
Door Mirrors - Heated
Door Mirrors - Electrically Folding
Door Mirrors - Exterior Mirror Tilt for Reverse
Driver and Front Passenger Seat Armrest
Electric Windows Front & Rear
Front Seat - Driver manual adjustment (6-way)
Front Seat - Passenger manual adjustment (4-way)
Front Seat - Manual Height Adjustment (Driver)
Front Seat Pockets (Passenger)
Heated Seats - Front
Key Fob with Mirror and Window Operation
Luggage Floor Box
Parking Sensors (Front 4: Rear 4)
Rear Bench 60/40 Split
Rear Seat Centre Armrest
Rear View Camera
Sunvisor Vanity Mirrors
Sunglasses Box
Tilt and Telescopic Steering Wheel

Interior Lights

Courtesy Light
Map Light (Front)
Rear Reading Light
Sunvisor Vanity Mirror Illumination
Boot Light

Audio and Communications

BluetoothTM Hands Free Telephone (HFT)
DAB+
Honda CONNECT with Navigation (9" touchscreen, AM/FM/DAB, Apple Carplay and Android Auto)
8 Speakers
Speakers - Front Tweeter
Steering Wheel Remote Audio Controls
USB Front x2
Wireless Apple Carplay

Exterior

Body Colour Shark Fin antenna
e:HEV Emblem
Body Colour Exterior Door Handle Finish
Grille (Paint Black - Verticle Design)
Body Colour Mirror
Body Colour Spoiler
Urban Front Bumper Design
Front and Rear Lower Bumper (non painting black Bumper skid garnish)
Normal Rear Bumper type (Side sill/ fender)
Low Gloss Black Window Garnish

Exterior Lights

Auto Headlights
LED Daytime Running Light
Headlight Auto On/Off Timer (Coming Home/Leaving Home Function)
LED Headlight
High Beam Support System (HSS)
LED Rear Light
Front Turn LED lights

Wheels & Tyres

Tyre Repair kit
18" Gun Metallic Paint Finish
225/55 R18

Sport

i-MMD Automatic

£41,110.00
