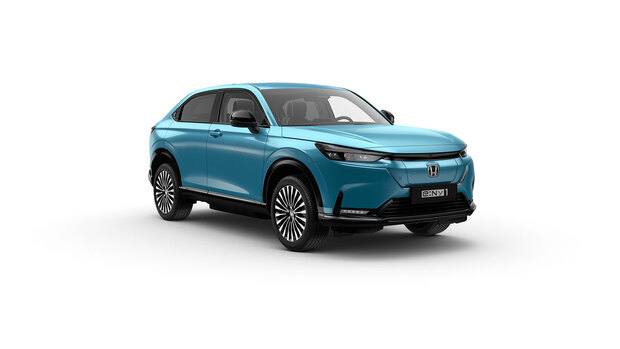

Honda e:Ny1 specifications,
dimensions and grades

Learn more about the new Honda e:Ny1 electric SUV’s specifications, including boot size, safety features, weight capacity, engine and emissions. You will also find detailed information about the interior features and materials as well as multimedia capabilities.

View Full Specification

Key Features

boot capacity
Electric family SUV
Comfortably seats 5 and offers up to 1176 litres*** of boot capacity.

***VDA method – load to roof
Plug icon
Fast charging
Charges up to 60 miles in just 11 minutes!*
battery icon
Practical range
Up to 256 miles driving range on a single charge.

Honda e:Ny1 Dimensions

Front facing Honda e:Ny1

Width: 1790 mm

Side facing Honda e:Ny1

Length: 4387 mm

Height: 1584 mm

Unladen

Full e:Ny1 Electric SUV Specifications

Elegance

BEV Automatic

£44,995.00

Key Features

  • Honda CONNECT with 15.1" infotainment system
  • Keyless Entry & Start
  • Heated Front Seats
  • Digital Driver's Display
  • My Honda+ Compatible
  • Wireless Charger
  • Electric Front Driver Seat Adjustments
  • Air Diffusion System
  • Rear-view Camera
  • Honda SENSING
  • Front 7 Rear Parking Sensors

Engine

  • Engine Type

    Electric

  • EV Battery Capacity (kWh)

    68.8 kWh

  • Phase

    1 & 3

  • AC 11kW 10% - 80% (Approx.)

    6 hours

  • Charging Port Type

    CCS (2)

  • DC Fast Charge Max (kW)

    78 kW

  • DC Fast Charge 10% - 80% (Approx.)

    45 minutes

  • DC Fast Charge 100km (Approx.)

    11 minutes

  • Range (WLTP Combined)

    256 miles

  • EV Operation Efficiency (kWh/100km)

    18.2 kWh/100km

  • Electric Motor Type

    AC

  • On Board Charger Capacity

    11kW AC

  • Battery - Thermal Management

    Water Cooling

  • Battery - Chemistry

    Lithium Ion

  • Battery - Number of Cells

    96

  • Battery - Nominal Voltage

    370

Performance

  • Electric Motor Maximum Power (ps) (kW)

    150 @ 4621-5000 kW

  • Electric Motor Maximum Power (ps) (kW)

    204 ps

  • Electric Motor Maximum Torque (Nm)

    310 @ 0-4621 Nm

  • 0 → 62 mp/h (s)

    7.7 seconds

  • Max Speed (km/h)

    160 km/h

  • Sound level: Drive-by (dB)

    64 dB

Dimensions

  • Overall Length (mm)

    4387 mm

  • Overall Width (mm)

    1790 mm

  • Overall Height - Unladen (mm)

    1584 mm

  • Wheelbase (mm)

    2607 mm

  • Tread Front (mm)

    1539 mm

  • Tread Rear (mm)

    1540 mm

  • Ground Clearance - Non load (mm)

    135 mm

  • Ground Clearance - with Full Load (mm)

    111.3 mm

  • Turning Circle - at Body (m)

    11.6 m

  • Turning Circle - at Wheel Centre (m)

    5.7 m

  • Steering Wheel Lock to Lock

    2.59 wheel turns

Capacity

  • Seating Capacity (persons)

    5

  • Trunk Capacity - Rear Seat up (litres, VDA method)

    361 litres, VDA method

  • Trunk Capacity - Rear Seat Down Load to Roof (litres, VDA method)

    1176 litres, VDA method

  • Trunk Capacity - Rear Seat Down Load to Window (litres, VDA method)

    801 litres, VDA method

Weight

  • Kerb Weight (kg)

    1730 kg

  • Max. Permissible Weight (kg)

    2080 kg

  • Payload (kg)

    347 kg

  • Max. Permissible Axle Weight - Front/Rear (kg)

    1065 / 1030 kg

Safety

  • ABS (Anti-Lock Braking System)
  • Airbags - Front Driver & Passenger
  • Airbags - Passenger SRS Airbag with Cut Off Switch
  • Airbags - Side (Front)
  • Airbags - Side Curtain (Front and Rear)
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control
  • Cruise Control - Adaptive
  • Deflation Warning System (DWS)
  • Driver SRS Airbag (Single Stage inflation)
  • eCall (Europe)
  • Electronic Brakeforce Distribution (EBD)
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Intelligent Speed limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keep Assist System
  • Lead Car Departure Notification System
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Jam Assist
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Whiplash Lessening Front Headrests

Security

  • Immobiliser System
  • Remote Central Locking with 2 Key Fobs
  • Security Alarm System
  • Smart Entry & Start
  • Tonneau Cover
  • Ultrasonic Sensor

Interior - Trim

  • Black Interior Panels
  • Chrome Door Handles
  • Genuine Leather Steering wheel
  • Synthetic Leather upholstery
  • Exclusive Styling of Silver trim with blue lighting in Door & Dash areas

Function And Technology

  • Electric Parking Brake with Automatic Brake Hold
  • Agile Handle Assist (AHA)
  • Economy, Sport & Normal Driving Modes
  • Electric Power Steering (EPS)
  • Hill Start Assist (HSA)
  • Power Meter
  • 10.2" Multi Info Display
  • Regenerative Braking Strength Control (Paddle)

Comfort And Convenience

  • Front Accessory Socket
  • Dual Zone Automatic Climate Control
  • Air Conditioning - Rear Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo net hook
  • Door Mirrors - Electrically Adjustable
  • Door Mirrors - Heated
  • Door Mirrors - Electrically Folding
  • Front Passenger & Driver Armrest
  • Electric Windows Front & Rear
  • Front Seat - Driver electrical adjustment (8-way)
  • Front Seat - Passenger manual adjustment (no height adjustment)
  • Heated Front Seats
  • Key Fob Operated windows & mirrors
  • Under-trunk Charging Cable Storage
  • Front Parking Sensors: 4
  • Rear Parking Sensors: 4
  • Rear View Camera
  • Sunvisor Vanity Mirrors
  • Tilt & Telescopic Steering Wheel

Interior Lights

  • Ambient Light (Roof, Doors, Footwells, Dash)
  • Courtesy Light
  • Map Light (Front)
  • Meter Illumination
  • Rear reading light
  • Trunk light

Audio and Communications

  • BluetoothTM Hands Free Telephone (HFT)
  • DAB+
  • Honda CONNECT with Navigation (15.1" touchscreen, AM/FM/DAB, Apple Carplay and Android Auto, live traffic info)
  • 6x Speaker
  • Front Tweeter
  • Steering Wheel Remote Audio Controls
  • 2x Front USB (1 X USB-C)
  • 2x Rear USB-C
  • Wireless Apple Carplay
  • Wireless Charging

Exterior

  • Shark Fin Antenna
  • Exterior Door Handle in Body colour Finish
  • Black Gloss Side Mirror
  • Privacy Glass
  • Spoiler
  • White Honda Badging
  • Rear "HONDA" in place of badge
  • High Gloss Window Garnish

Exterior Lights

  • Auto Headlights
  • LED Daytime Running Light
  • LED Front Fog Light
  • 15 seconds Headlight Auto On/Off Timer (Coming Home/Leaving Home Function)
  • LED Headlight
  • High Beam Support System (HSS)
  • Smoke & Clear Lens Rear Lights
  • LED Front Turn Lights

Wheels

  • 18" Black Cut Alloys
  • Front & Rear Tyres 225/50 R18
  • White H BadgeWheel Caps
  • Tyre Repair Kit

Advance

BEV Automatic

£47,195.00

Key Features

  • Honda CONNECT with 15.1" infotainment system
  • Keyless Entry & Start
  • Heated Front Seats
  • Digital Driver's Display
  • My Honda+ Compatible
  • Wireless Charger
  • Electric Front Driver Seat Adjustments
  • Heated Leather Steering Wheel
  • Air Diffusion System
  • Rear-view Camera
  • Honda SENSING
  • Front 7 Rear Parking Sensors
  • Power Tailgate
  • Panoramic Glass Roof
  • Multi View Camera
  • Honda Parking Pilot

Engine

  • Engine Type

    Electric

  • EV Battery Capacity (kWh)

    68.8 kWh

  • Phase

    1 & 3

  • AC 11kW 10% - 80% (Approx.)

    6 hours

  • Charging Port Type

    CCS (2)

  • DC Fast Charge Max (kW)

    78 kW

  • DC Fast Charge 10% - 80% (Approx.)

    45 minutes

  • DC Fast Charge 100km (Approx.)

    11 minutes

  • Range (WLTP Combined)

    256 miles

  • EV Operation Efficiency (kWh/100km)

    18.2 kWh/100km

  • Electric Motor Type

    AC

  • On Board Charger Capacity

    11kW AC

  • Battery - Thermal Management

    Water Cooling

  • Battery - Chemistry

    Lithium Ion

  • Battery - Number of Cells

    96

  • Battery - Nominal Voltage

    370

Performance

  • Electric Motor Maximum Power (ps) (kW)

    150 @ 4621-5000 kW

  • Electric Motor Maximum Power (ps) (kW)

    204 ps

  • Electric Motor Maximum Torque (Nm)

    310 @ 0-4621 Nm

  • 0 → 62 mp/h (s)

    7.7 seconds

  • Max Speed (km/h)

    160 km/h

  • Sound level: Drive-by (dB)

    64 dB

Dimensions

  • Overall Length (mm)

    4387 mm

  • Overall Width (mm)

    1790 mm

  • Overall Height - Unladen (mm)

    1584 mm

  • Wheelbase (mm)

    2607 mm

  • Tread Front (mm)

    1539 mm

  • Tread Rear (mm)

    1540 mm

  • Ground Clearance - Non load (mm)

    135 mm

  • Ground Clearance - with Full Load (mm)

    112.6 mm

  • Turning Circle - at Body (m)

    11.6 m

  • Turning Circle - at Wheel Centre (m)

    5.7 m

  • Steering Wheel Lock to Lock

    2.59 wheel turns

Capacity

  • Seating Capacity (persons)

    5

  • Trunk Capacity - Rear Seat up (litres, VDA method)

    344 litres, VDA method

  • Trunk Capacity - Rear Seat Down Load to Roof (litres, VDA method)

    1136 litres, VDA method

  • Trunk Capacity - Rear Seat Down Load to Window (litres, VDA method)

    784 litres, VDA method

Weight

  • Kerb Weight (kg)

    1752 kg

  • Max. Permissible Weight (kg)

    2080 kg

  • Payload (kg)

    324 kg

  • Max. Permissible Axle Weight - Front/Rear (kg)

    1065 / 1030 kg

Safety

  • ABS (Anti-Lock Braking System)
  • Airbags - Front Driver & Passenger
  • Airbags - Passenger SRS Airbag with Cut Off Switch
  • Airbags - Side (Front)
  • Airbags - Side Curtain (Front and Rear)
  • Brake Assist (BA)
  • Collision Mitigation Braking System
  • Collision Mitigation Throttle Control
  • Cruise Control - Adaptive
  • Deflation Warning System (DWS)
  • Driver SRS Airbag (Single Stage inflation)
  • eCall (Europe)
  • Electronic Brakeforce Distribution (EBD)
  • Emergency Stop Signal
  • Forward Collision Warning
  • Front & Rear Seat Belts with Emergency Locking Retractor (ELR)
  • Intelligent Speed limiter
  • ISO Fix Points / I-SIZE
  • Lane Departure Warning (LDW)
  • Lane Keep Assist System
  • Lead Car Departure Notification System
  • Low Speed Following
  • Road Departure Mitigation
  • Traffic Jam Assist
  • Traffic Sign Recognition System
  • Vehicle Stability Assist (VSA)
  • Whiplash Lessening Front Headrests

Security

  • Immobiliser System
  • Remote Central Locking with 2 Key Fobs
  • Security Alarm System
  • Smart Entry & Start
  • Tonneau Cover
  • Ultrasonic Sensor

Interior - Trim

  • Black Interior Panels
  • Chrome Door Handles
  • Genuine Leather Steering wheel
  • Synthetic Leather upholstery
  • Exclusive Styling of Silver trim with blue lighting in Door & Dash areas

Function And Technology

  • Electric Parking Brake with Automatic Brake Hold
  • Agile Handle Assist (AHA)
  • Economy, Sport & Normal Driving Modes
  • Electric Power Steering (EPS)
  • Hill Start Assist (HSA)
  • Power Meter
  • 10.2" Multi Info Display
  • Regenerative Braking Strength Control (Paddle)

Comfort And Convenience

  • Front Accessory Socket
  • Dual Zone Automatic Climate Control
  • Air Conditioning - Rear Vent
  • Auto Dimming Rear View Mirror
  • Auto Wipers
  • Cargo net hook
  • Door Mirrors - Electrically Adjustable
  • Door Mirrors - Heated
  • Door Mirrors - Electrically Folding
  • Multi View Camera
  • Front Passenger & Driver Armrest
  • Electric Windows Front & Rear
  • Front Seat - Driver electrical adjustment (8-way)
  • Front Seat - Passenger manual adjustment (no height adjustment)
  • Front Driver Seat Pockets
  • Heated Front Seats
  • Heated Steering Wheel
  • Key Fob Operated windows & mirrors
  • Under-trunk Charging Cable Storage
  • Front Parking Sensors: 4
  • Rear Parking Sensors: 4
  • Side Parking Sensors: 4
  • Honda Parking Pilot
  • Power Tailgate Handsfree
  • Rear View Camera
  • Sunvisor Vanity Mirrors
  • Tilt & Telescopic Steering Wheel

Interior Lights

  • Ambient Light (Roof, Doors, Footwells, Dash)
  • Courtesy Light
  • Map Light (Front)
  • Meter Illumination
  • Rear reading light
  • Trunk light

Audio and Communications

  • BluetoothTM Hands Free Telephone (HFT)
  • DAB+
  • Honda CONNECT with Navigation (15.1" touchscreen, AM/FM/DAB, Apple Carplay and Android Auto, live traffic info)
  • 6x Speaker
  • Premium Audio
  • Front Tweeter
  • Steering Wheel Remote Audio Controls
  • 2x Front USB (1 X USB-C)
  • 2x Rear USB-C
  • Wireless Apple Carplay
  • Wireless Charging

Exterior

  • Shark Fin Antenna
  • Exterior Door Handle in Body colour Finish
  • Black Gloss Side Mirror
  • Panoramic Glass Roof
  • Privacy Glass
  • Spoiler
  • White Honda Badging
  • Rear "HONDA" in place of badge
  • High Gloss Window Garnish

Exterior Lights

  • Auto Headlights
  • LED Daytime Running Light
  • LED Front Fog Light
  • 15 seconds Headlight Auto On/Off Timer (Coming Home/Leaving Home Function)
  • LED Headlight
  • High Beam Support System (HSS)
  • Smoke & Clear Lens Rear Lights
  • LED Front Turn Lights

Wheels

  • 18" Black Cut Alloys
  • Front & Rear Tyres 225/50 R18
  • White H BadgeWheel Caps
  • Tyre Repair Kit

+eCall functionality is subject to 2G/3G network availability.

*Car shown is the Honda e:Ny1 Full Electric Advance in Aqua Topaz Metallic. Economy & Emissions figures (WLTP**) Range: Power consumption in kWh/100 km: 18.2; CO2-emission combined (g/km): 0. Electric range combined: 256 miles. The Honda e:Ny1 is a battery electric vehicle requiring mains electricity for charging. Zero emissions while driving. Electric range figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load.

 Indicative charge times shown, for comparison purposes. A charge from a 10% to 80% can be achieved in approximately 45 minutes with a 100kW DC charging, in approximately 6 hours with a 11kW AC charging or in approximately 8 hours with a 7kW AC charging, in optimal conditions, such as a temperature around 25°C. Actual charging times may vary depending on various factors, including the age, type, condition and temperature of the charging unit and the battery, the starting charge and environmental conditions such as the outdoor temperature at the point of use. Charge times may be longer in colder weather and if battery temperature activates safeguarding technology.

+eCall functionality is subject to 2G/3G network availability.

For details on tyres labelling please refer to the link [here].

What does this mean? More info [here]
