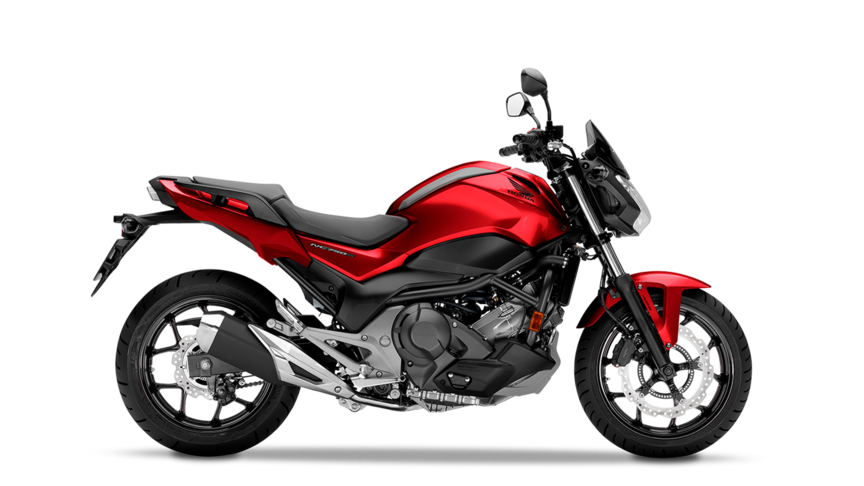

A combination of state-of-the-art engineering, storage capacity, fuel efficiency and striking naked style. (Please note Candy Prominence Red does not come with LED lights.)


£6 353

NC750S 2017 key features

NC750S 2017 Specifications

Show specifications

  • Engine
    Bore × Stroke (mm) 77 x 80mm
    Carburation PGM FI electronic fuel injection
    Compression Ratio 10.7: 1
    C02 Emissions 81
    Engine Displacement (cc) 745cm3
    Engine Type (cm³) Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cyclinder
    Max. Power Output 40.3kW @ 6,250rpm (95/1/EC)
    Max. Torque 68Nm @ 4,750rpm (95/1/EC)
    Oil Capacity (Litres) 3.7
    Starter Electric
  • Wheels
    Brakes Front 320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads. 2-channel ABS.
    Brakes Rear 240mm single wavy hydraulic disc with 2-piston caliper and resin mold pads. 2-channel ABS.
    Suspension Front 41mm telescopic fork
    Suspension Rear Monoshock dampner, prolink swingarm
    Tyres Front 120/70-ZR17M/C (58W)
    Tyre Size Rear 160/60-ZR17M/C (69W)
    Wheels Front Multi-Spoke Aluminium Cast 17M/C x MT3.50
    Wheels Rear Multi-Spoke Aluminium Cast 17M/C x MT4.50
  • Dimensions and Weights
    Battery Capacity (VAh) 12V-11 .2AH
    Caster Angle 27 degrees
    Dimensions (L×W×H) (mm) 2215mm x 775mm x 1130mm
    Frame type Diamond; steel pipe
    Fuel Tank Capacity (Litres) 14.1 Litres
    Fuel Consumption 28.6km/l (WMTC mode)
    Ground Clearance (mm) 140mm
    Kerb Weight (kg) 217kg
    Seat Height (mm) 790mm
    Trail (mm) 110 mm
    Wheelbase (mm) 1520mm
  • Transmission
    Clutch Wet multiplate clutch
    Final Drive Chain
    Gearbox 6-speed manual clutch transmission
  • Instruments and Electrics
    Headlights BULB TYPE : 12V; 60W x 1 (high) / 55W x 1 (low) / LED TYPE : LED (Please note Candy Prominence Red does not come with LED lights.)
    Ignition System Computer controlled digital transistorised with electronic advance
    Instruments Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption and coolant temperature warning light.
    Tail Light LED (Please note Candy Prominence Red does not come with LED lights.)
